KLS Martin marLED E9 - Wiring Diagram for Operating Foil



Service ManualService Manual
Operating Lights marLEDOperating Lights marLED
®®
E9 / E9i / E9 / E9i / E15E15
30 30 V V 1.01.0

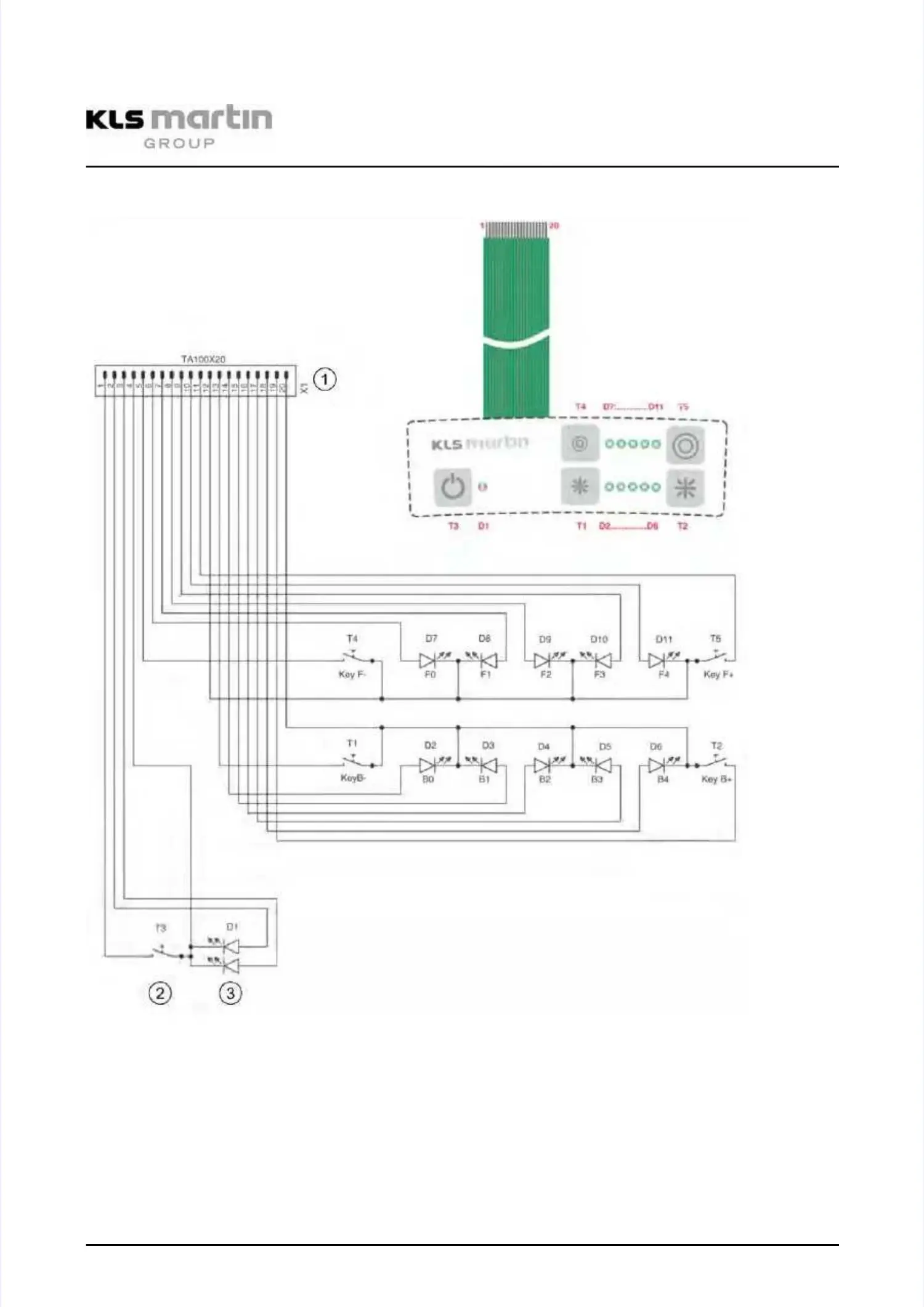

4.84.8 Wiring Diagram for Operating FoilWiring Diagram for Operating Foil
1 1 Raster Raster 1,0 1,0 mmmm
2 2 Key Key on on / / offoff
3 Bi-color 3 Bi-color ED ED green green (on (on top)top)
red (on bottom)red (on bottom)
