KLS Martin marLED E9 - Measuring Input Voltage on Control Electronics



Service ManualService Manual
Operating Lights marLEDOperating Lights marLED
®®
E9 / E9i / E9 / E9i / E15E15
52 52 V V 1.01.0

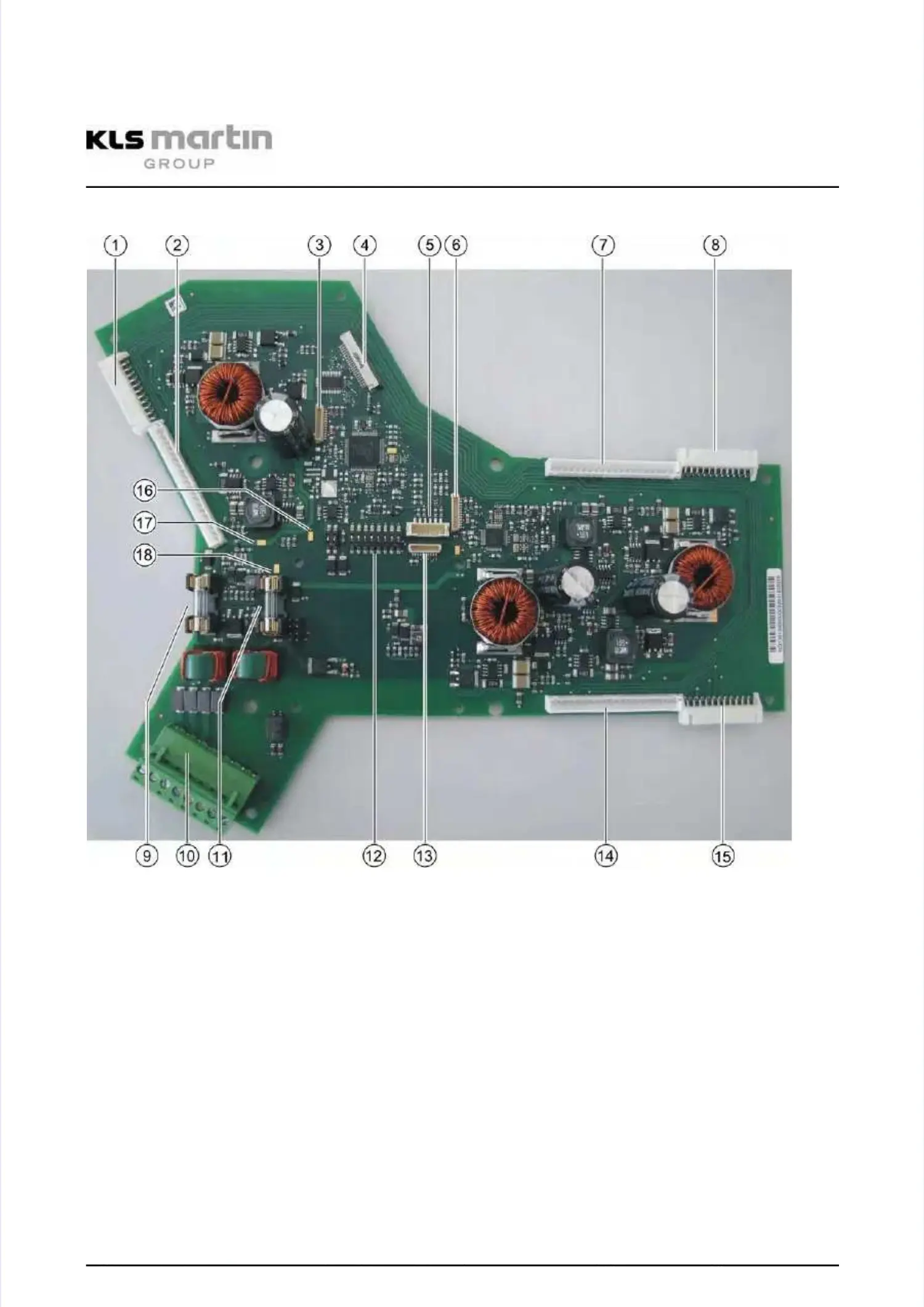

6.166.16 Measuring the Input Voltage on the Measuring the Input Voltage on the Control ElectronicsControl Electronics
1 1 ConneConnection ction LE LE E9 E9 7 7 ConneConnection ction LE LE E15 E15 1313 ProgrProgramminamming g InterfInterfaceace
2 2 ConneConnection ction LE LE E15 E15 8 8 ConneConnectioction n LE LE E9 E9 1414 ConneConnection ction LE LE E15E15
3 3 -x- -x- 9 9 MicroMicrofuse fuse 1 1 1515 ConneConnection ction LE LE E9E9
4 4 ConneConnection ction for for operaoperating ting foil foil 10 10 Main Main conneconnectioction n 1616 GND*GND*
5 5 HandlHandle e ConneConnection ction 11 11 MicroMicrofuse fuse 2 2 1717 MasteMaster r IN*IN*
6 6 -x- -x- 12 12 DIP DIP SwiSwitch tch 1818 SlaSlave ve IN*IN*
*The input voltage (lamp) 28–36 VDC of Master and Slave can be measured here*The input voltage (lamp) 28–36 VDC of Master and Slave can be measured here
