one coaxial cable and a passive splitter should be connected between the ACU and the
satellite TV receiver. The RF4 connector of the SuperTrack S3 must be connected to
the “SAT IN” connector of the satellite receiver. And, the “ACU” connector of the
Antenna unit must also be connected to the “ANTENNA” connector of the ACU. In this
configuration two satellites can be selected automatically according to the satellite TV
receiver signal. (Refer to the ‘PROGRAM SATELLITE’ section.)

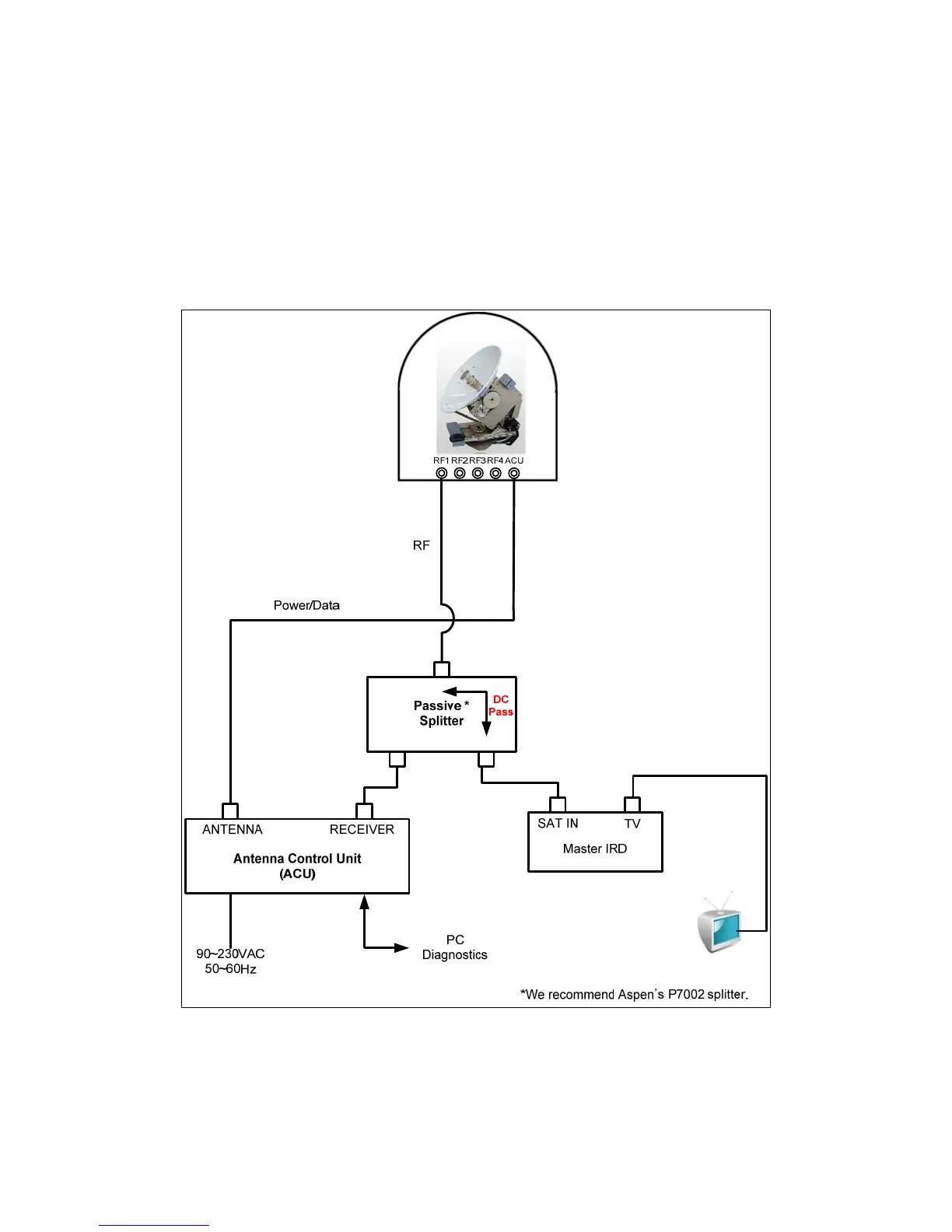

Figure 2-13 One Satellite TV Receiver with Auto Switching
