c. Change the tilt offset of level and cross axis to place the bubble of the bubble
inclinometer in the center
d. Click ‘Tilt Offset’ to upload to the PCU.

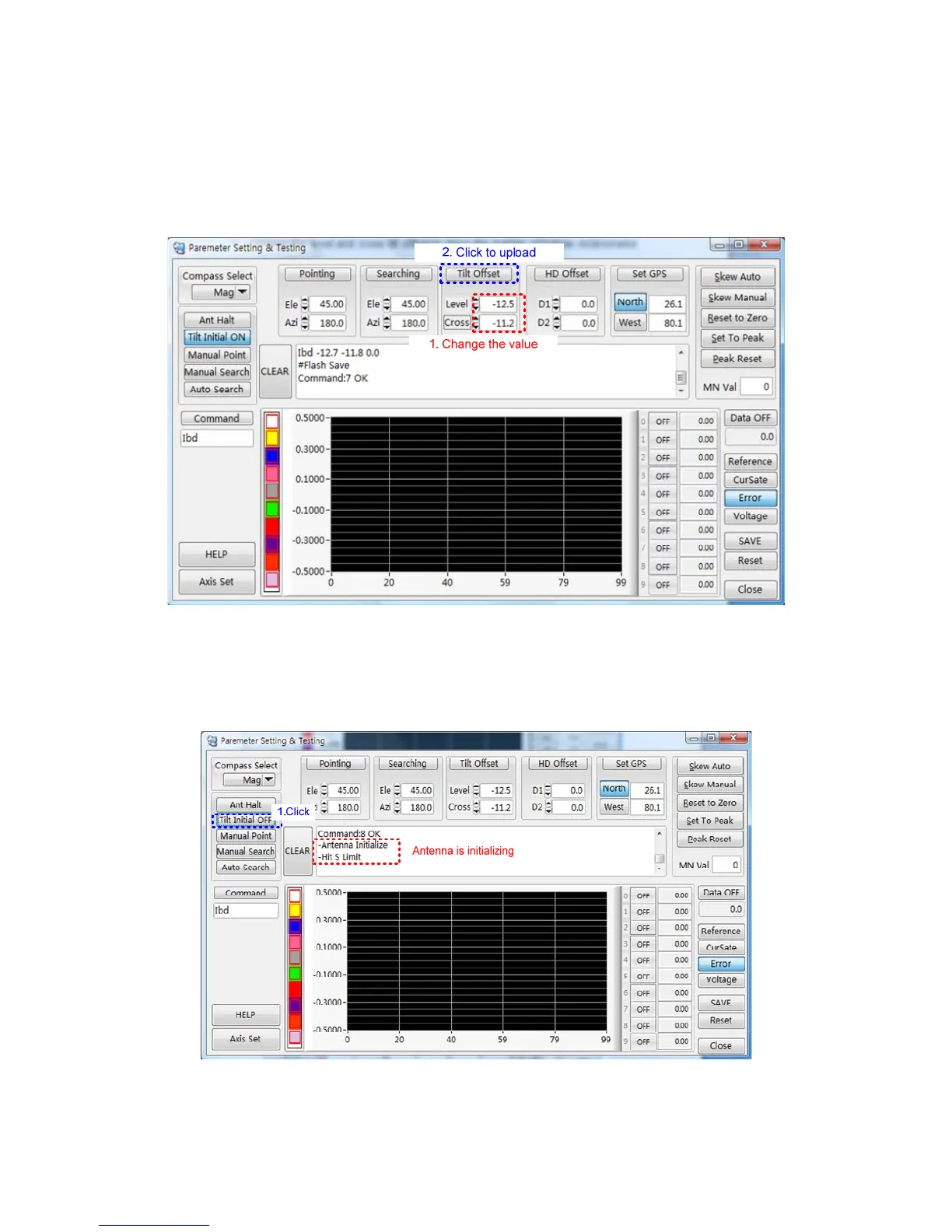

Figure 4-14 Edit the Tilt Offset
e. If the tilt offset is correct, click ‘Tilt Initial OFF’, whereupon the antenna will start
initializing.
Figure 4-15 Request the Current Tilt Offset Using the ‘Ibd’ Command
