Appendix B: Error Code Definition
If there is a problem with the antenna, you can check the error code on the ACU
and SCS. Press the ‘MENU’ button on the front panel of the ACU when the error
LED is on. Then, you will see the hexadecimal error code, as shown in Fig C-1
below.

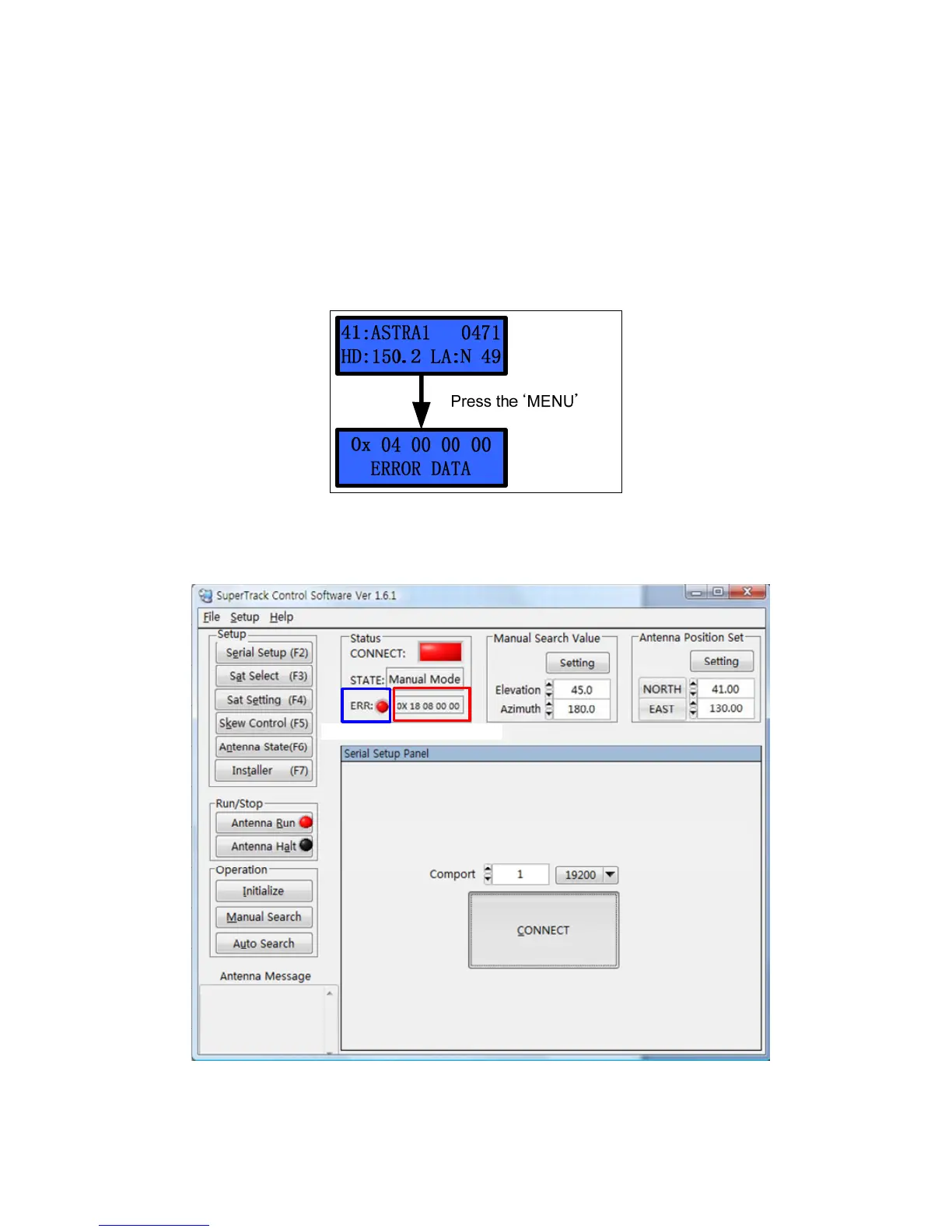

Figure B-1 Error Code on ACU
You will also be able to see the hexadecimal error code on the SCS V 1.7.1, as
shown in Figure C-2 below.
Error CodeError LED
Figure B-2 Error Code on SCS
