Calculating the Skew Angle, Elevation and Azimuth of the Antenna
You can use SCS to calculate the skew angle, elevation and azimuth of the
antenna, if you know the longitude of the satellite and the latitude and longitude of
the current position. Refer to the steps outlined below.
a. Input the longitude of the satellite, and the latitude and longitude of the
current position.
b. Click ‘CALCULATE’ to calculate.
c. You can see the calculated value in ‘CALCULATE’ below.
1. Input Data
2.Click to calculate
3. Calculated Value

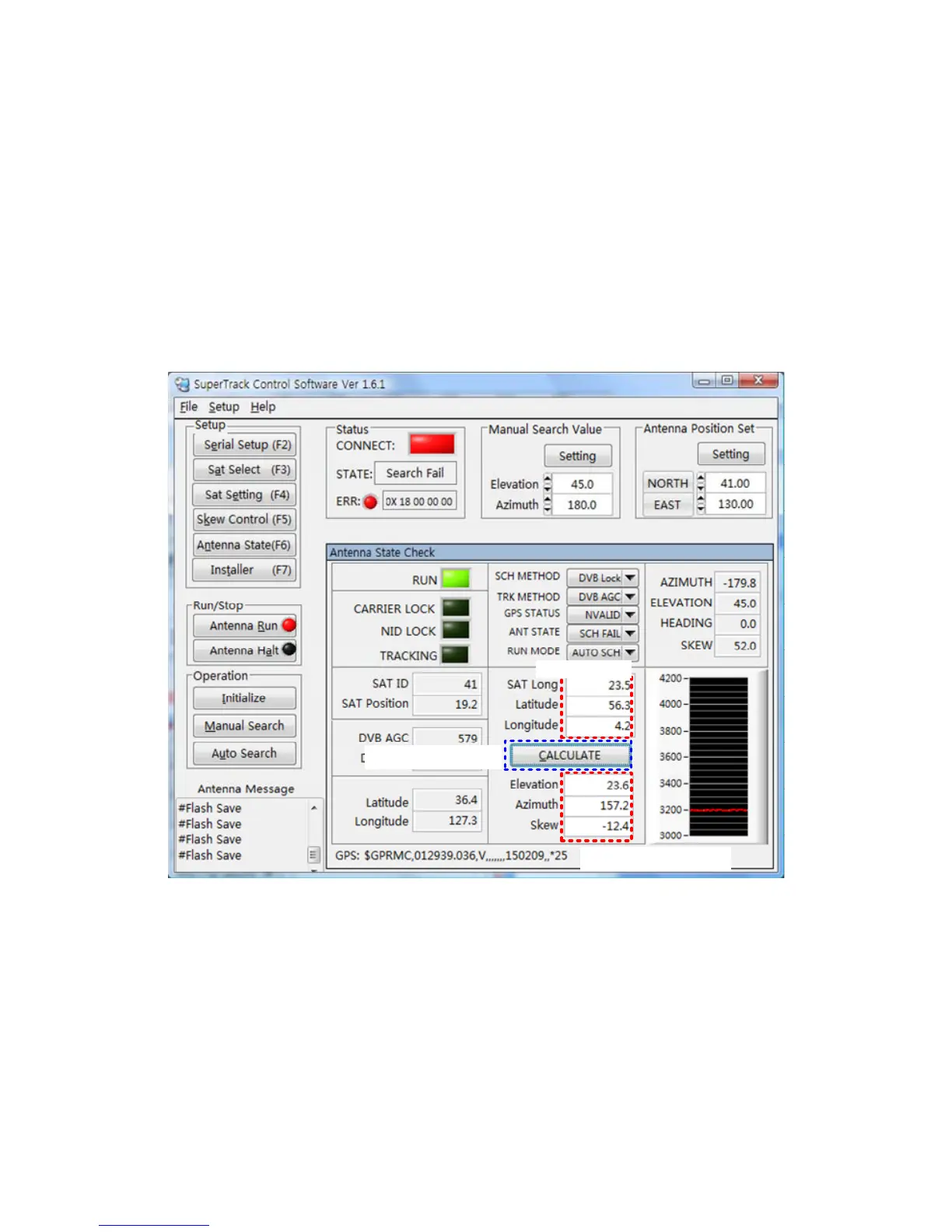

Figure 4-8 Calculating the Skew Angle, Elevation and Azimuth of the Antenna
