54
Compass Mode
When a change of compass mode is required, you can select the compass mode
by SCS. First, input ‘Zb’ at the bottom of the ‘Command’ button and click
‘Command’ to request the current compass mode from the PCU. Then, you can
check the current compass mode. The S3 has the following s compass modes:
(Internal Magnetic (Zbb), Internal Magnetic Fail (Zbd). Second, select the compass
mode after clicking ‘▼’, whereupon the changed compass mode will be uploaded
to the PCU. The S3 will initialize and the compass mode will be changed upon
selecting the compass mode.

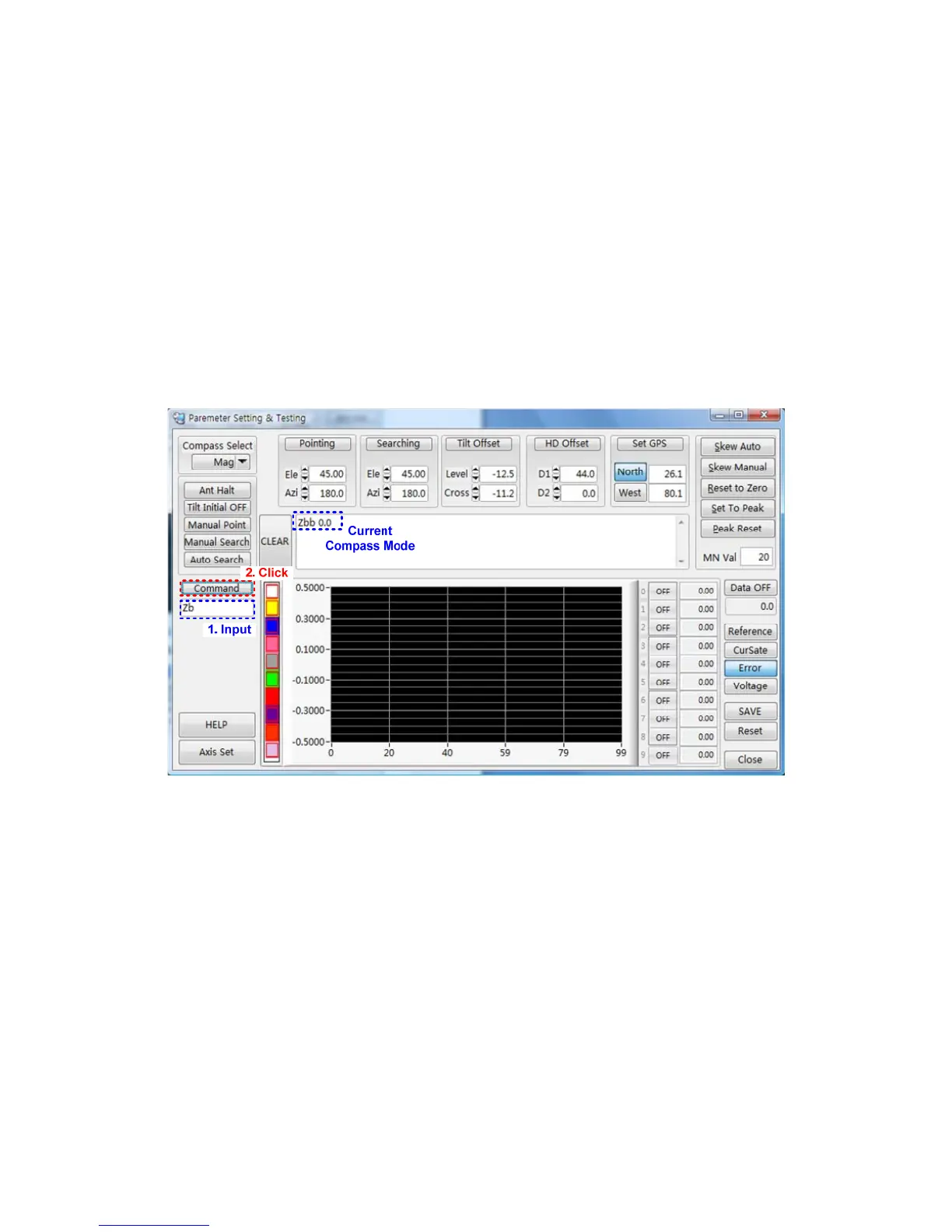

Figure 4-18 Requesting the Current Compass Mode
