24

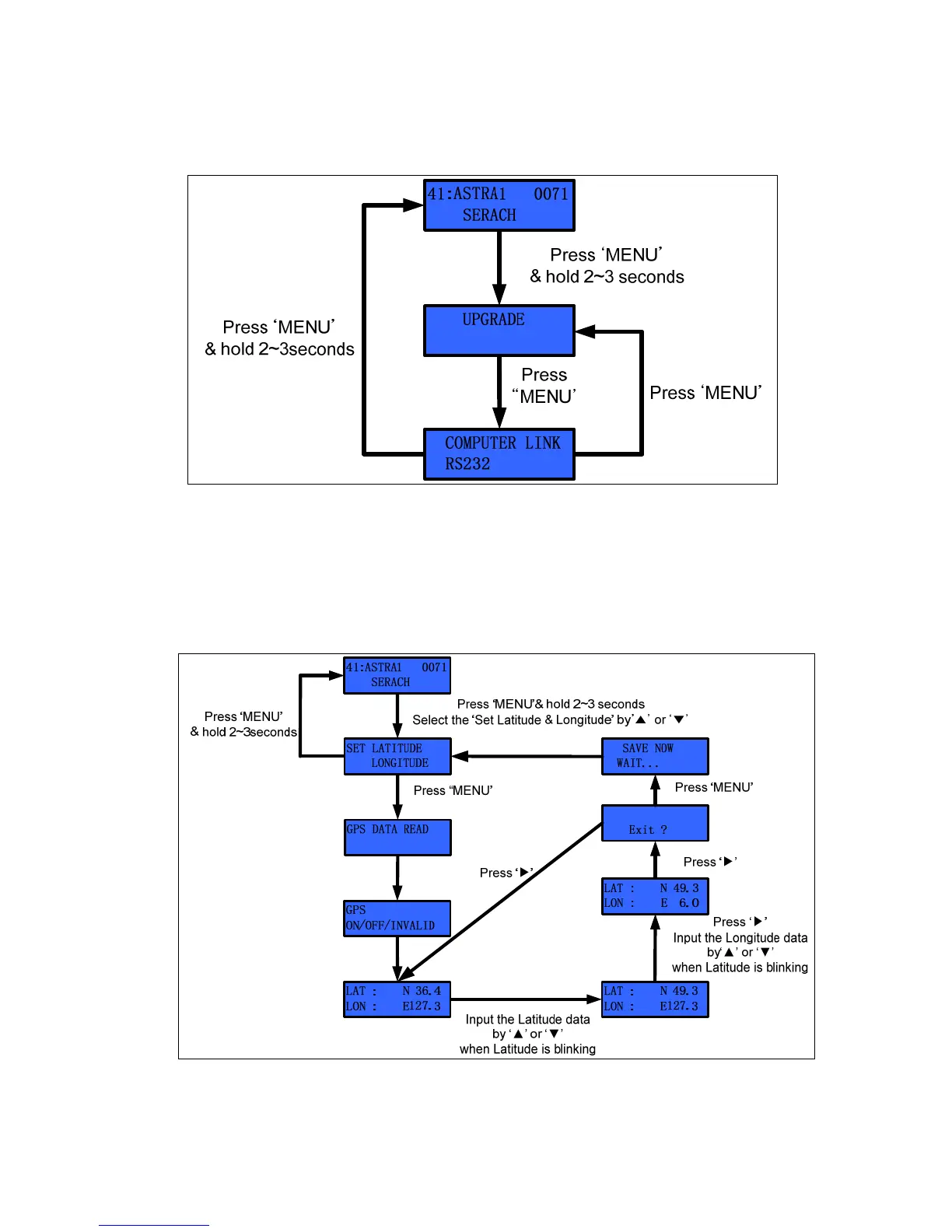

Figure 3-7 Computer Link step 2
Set Latitude and Longitude
In the event of invalid GPS data or GPS breakdown, you can input the desired latitude
and longitude. Refer to Figure 3-8. This data will be changed if the GPS data is valid or
if the ACU power is reset.
Figure 3-8 Set Latitude & Longitude step
