Connecting satellite TV receivers with European LNB (Use of the all
polarity of satellite)
In European systems that come with a Quad LNB, all four RF outputs from the
SuperTrack S3 antenna should be connected to the multi-switch. Connect each of the
satellite TV receiver’s inputs to the output connectors on the multi-switch. Connect the
multi-switch unit in accordance with the manufacturer’s instructions. Figure 2-14 shows
an example of a European multi-switch (4 inputs and 4 outputs) configuration.
RF1: Low Band Vertical
RF2: Low Band Horizontal
RF3: High Band Vertical
RF4: High Band Horizontal

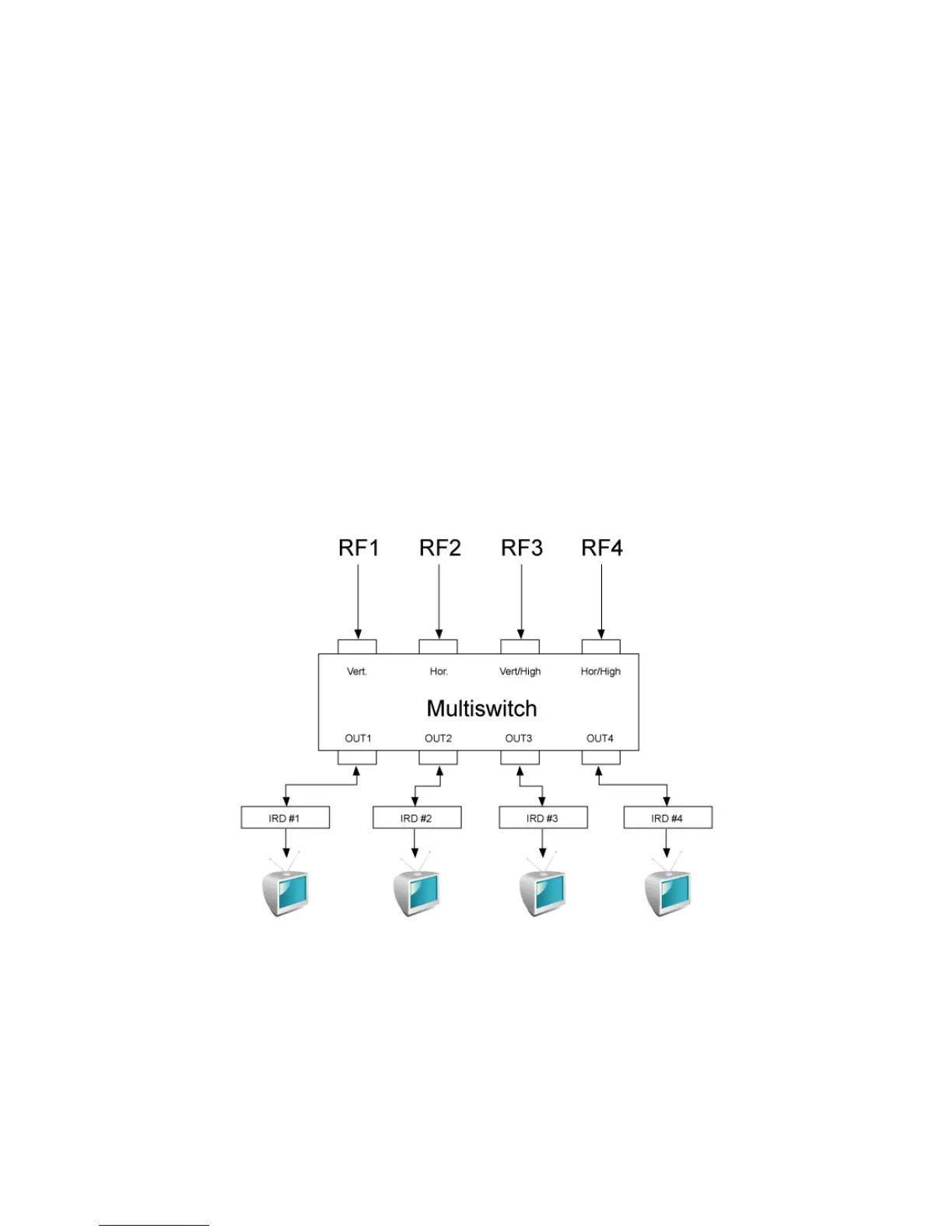

Figure 2-14 Four Satellites TV Receivers Installation with European LNB
If you want use more satellite TV receivers than four, you can choose 8 outputs
or 16 outputs.
