a. Auto Mode
In the Auto mode, the ACU displays the skew angle calculated by the PCU. The
S3’s default skew mode is auto. The S3 automatically changes the skew angle
when the satellite is changed.
b. Manual Mode
The Installer or Operator can change the skew angle to the desired skew angle,
as shown below.

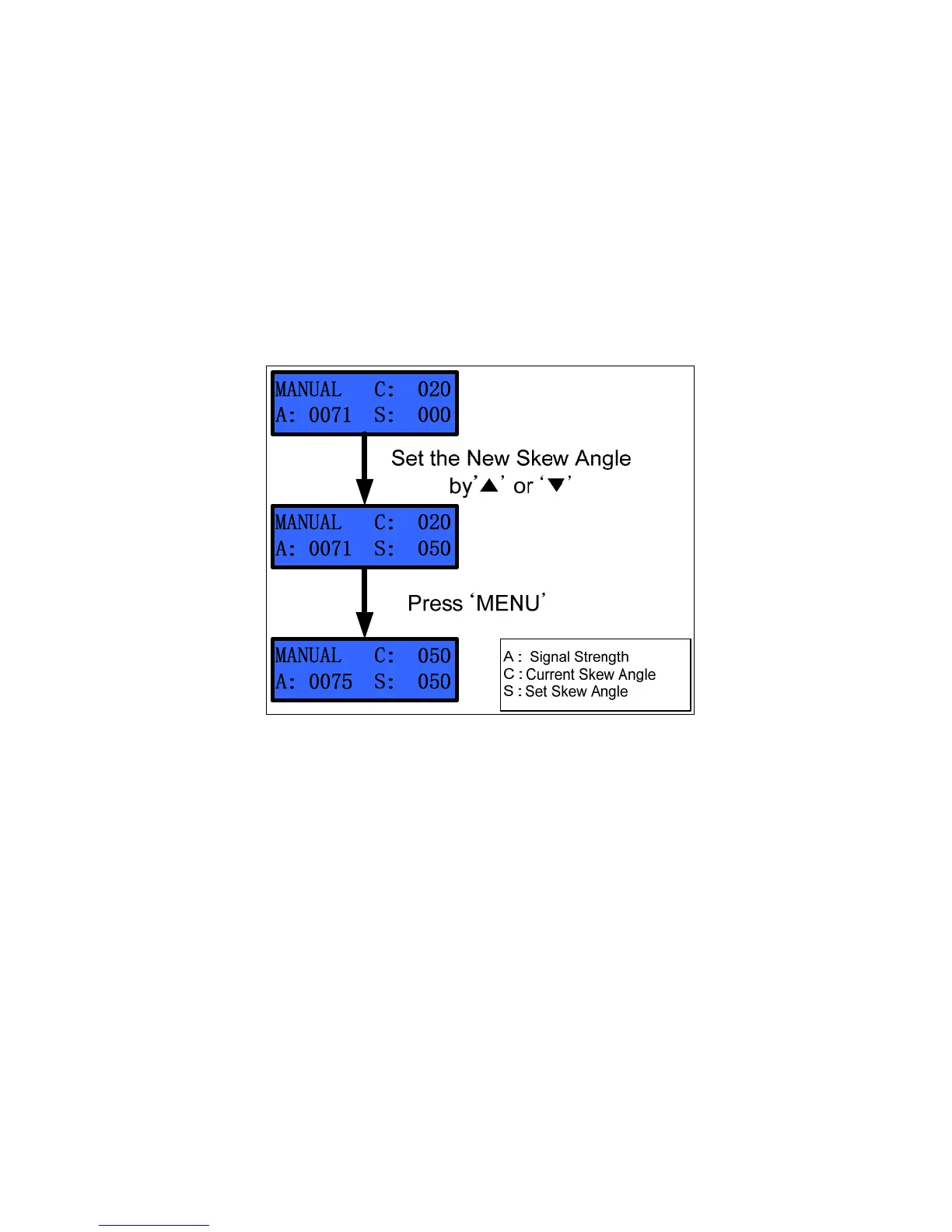

Figure 3-12 Setting the Skew Angle in Manual Mode
NOTE
: ‘C:’ refers to the current skew angle. ‘A:’ refers to signal strength. ‘S:’
refers to the user setting the skew angle.
