6 Chapter 3 KODAK RVG 6500 Systems Overview
RVG Functional Components Overview

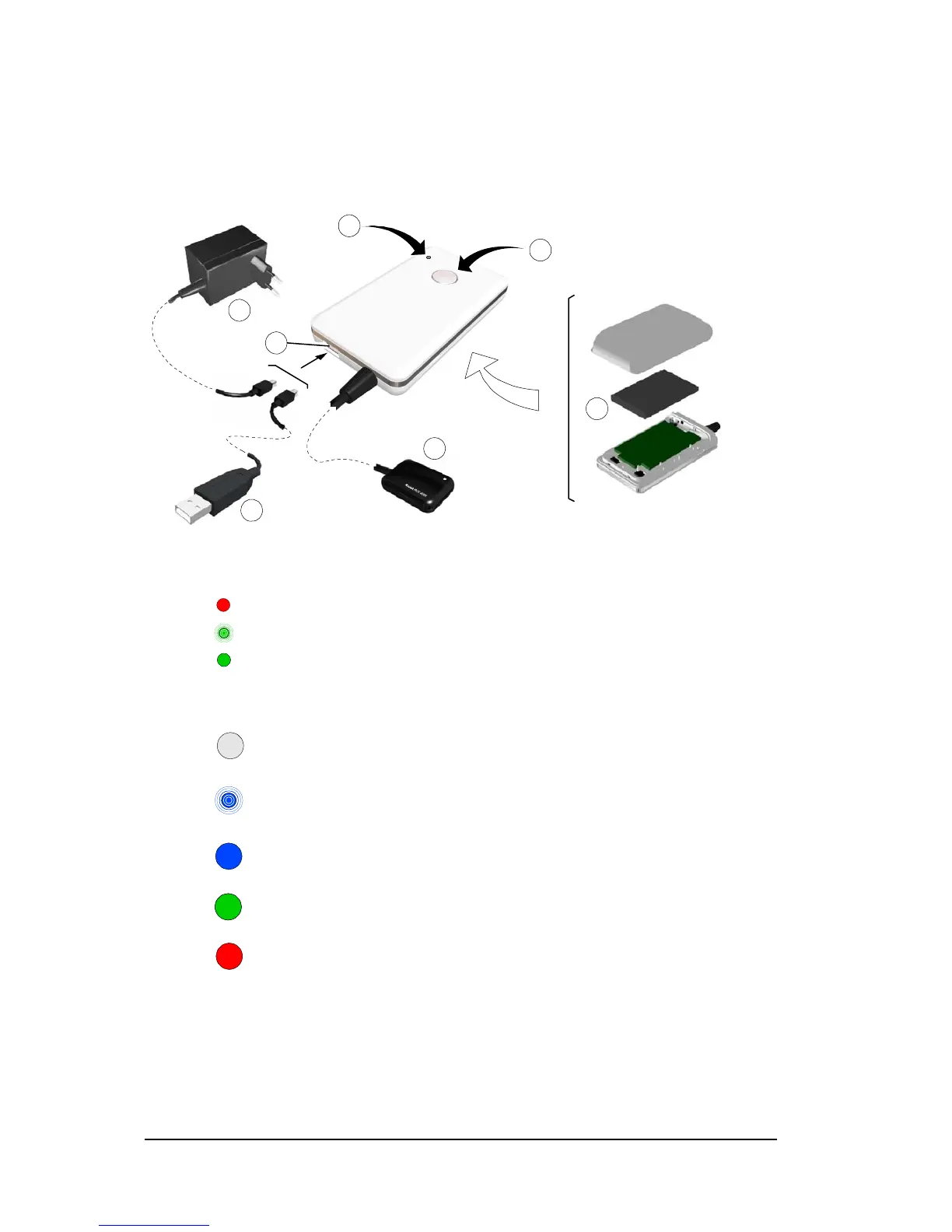

Figure 3 RVG Functional Components Overview
1 Battery status indicator LED:
Not charged
Charging (blinking)
Charged with charger connection
OFF
Charged without charger connection
2 Sensor remote control button and the ON/OFF button:
OFF mode: Press 5 seconds to turn OFF
〈 Connecting to WiFi AP (blinking): Press 2
seconds to turn ON.
〈 Transmitting acquired x-ray image (blinking)
〈 Connected to WiFi AP
〈 Standby mode
Ready for acquisition
Error mode
3 Sensor
4
USB connector for battery charging
• (A) Medical charger
• (B) USB cable to charge with the computer
5 Battery
3
1
2
4
A
B
5

Kodak RVG 6500 IPS System Specifications

General

Brand	Kodak
Model	RVG 6500 IPS System
Category	Medical Equipment
Language	English
