3 KODAK RVG 6500 Systems Overview
KODAK RVG 6500 Systems Overview
• The KODAK RVG 6500 System
OR
• The KODAK RVG 6500 Intelligent Positioning System (IPS) System

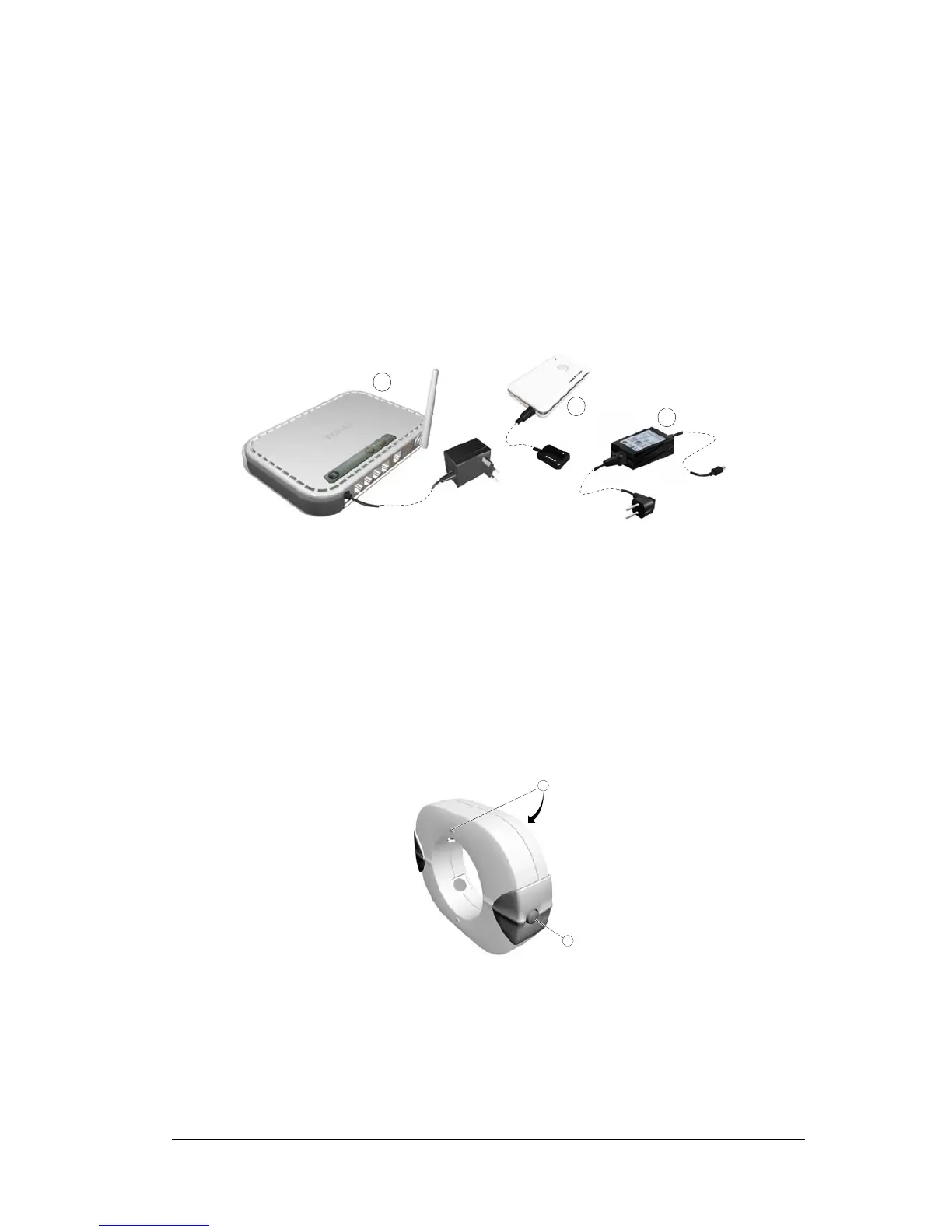

Figure 1 KODAK RVG 6500 System Components
The KODAK RVG 6500 IPS System is composed of all the KODAK RVG 6500 system components
and the IPS aiming ring. The IPS aiming ring enables you prior to acquisition to dynamically and visually
center and align the X-ray beam to the RVG sensor.
Figure 2 IPS Aiming Ring
1 The sensor and the control box
2 The WiFi access point
3 The medical power supply for the RVG system
1 ON/OFF button: A quick push on the ON/OFF button will light the front or back LED.
2 4 LEDS
1
3
2
2
1

Kodak RVG 6500 IPS System Specifications

General

Brand	Kodak
Model	RVG 6500 IPS System
Category	Medical Equipment
Language	English
