Mounting the IPS Aiming Ring on the X-Ray Generator
Before mounting the IPS aiming ring, make sure that:
• You have the necessary tools:
• You have cleaned the X-ray generator tube head with disposable cleaning wipes.
• You have asked the practitioner his preference for the position of the aiming ring on the X-ray
tube head, with the ON/OFF button on the left or right side of the X-ray tube head.

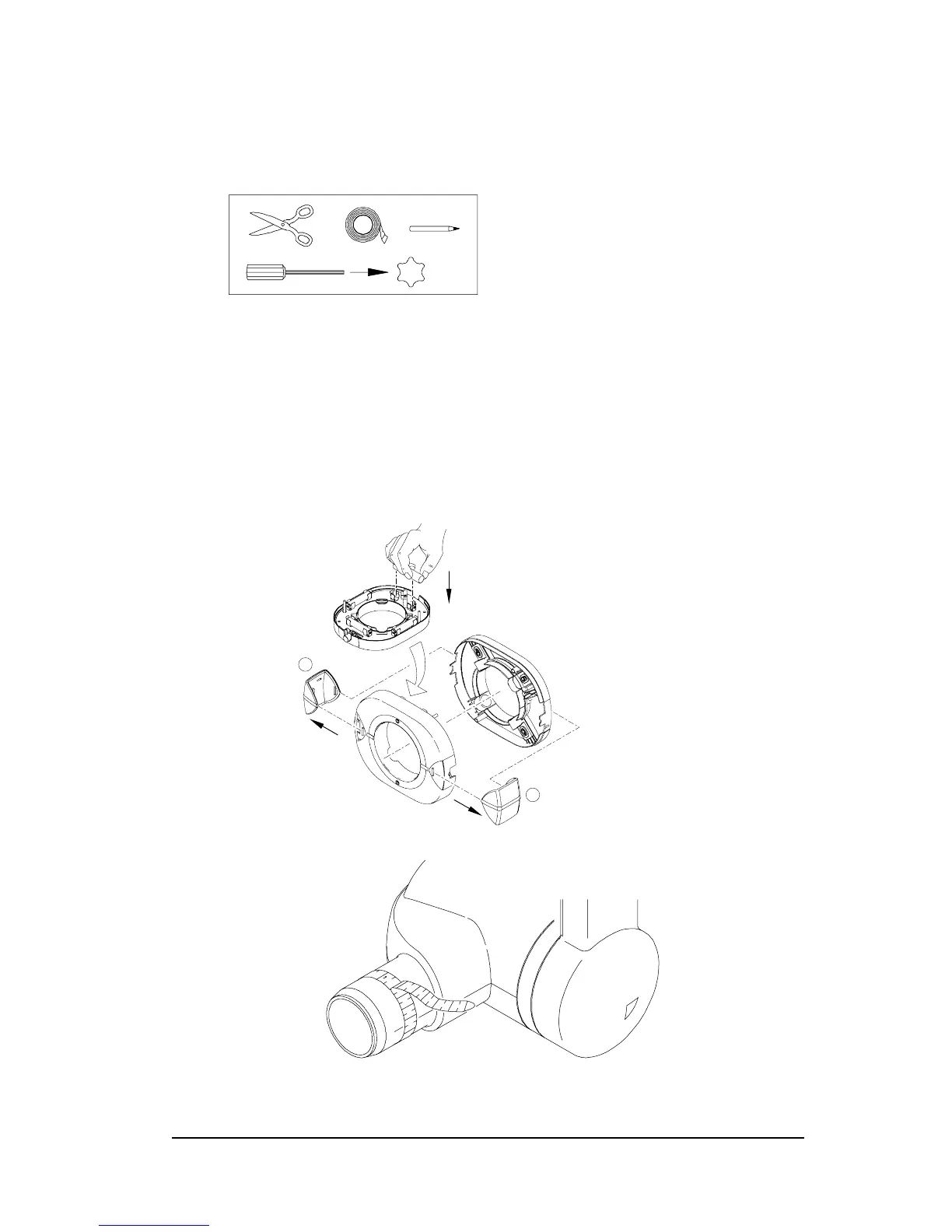

To mount the IPS aiming ring on the X-ray generator tube head, follow these steps:
1 Remove the attachment brackets (A).
2 Remove the back cover.
3 Insert the 4 batteries on the board respecting the polarities.
4 Measure the X-ray tube head diameter to select the appropriate aiming ring holding brackets.
15 mm
x4
A
A
