28 Chapter 5 Setting Up the KODAK RVG 6500 Systems
5 Select the appropriate aiming ring holding brackets (B):
• For a cone shape x-ray tube head (HY415).
• For a cylindrical shape x-ray tube head with diameters from 55.5 mm to 65 mm (HY414).
• For a cylindrical shape x-ray tube head with diameters from 64 mm to 77.5 mm (HY413)
mounted on the ring.

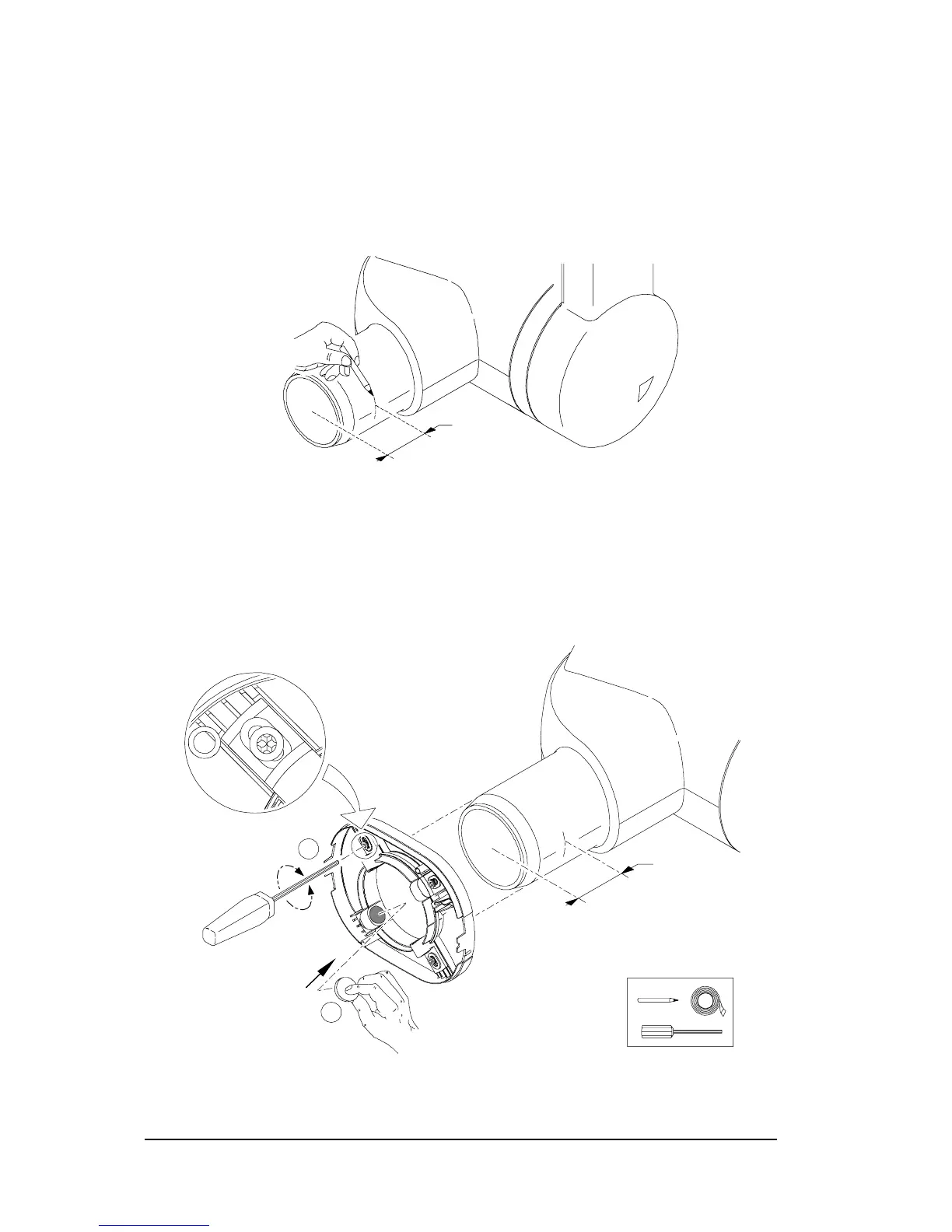

6 Measure from the opening of the x-ray tube head 30mm. Mark the 30mm with a pencil on both
sides of the x-ray tube head.
7 On the back cover, position the appropriate holding brackets (B) to adapt to the x-ray tube head
diameter. Do not tighten the screws.
8 Stick the stickers on the back cover in the appropriate locations (C). Remove the protection on the
stickers.
9 Using the 30mm marks, position the back cover on the x-ray tube head. Tighten the 4 screws.
30 mm
x4
B
x4
C
30 mm
To Next Page
