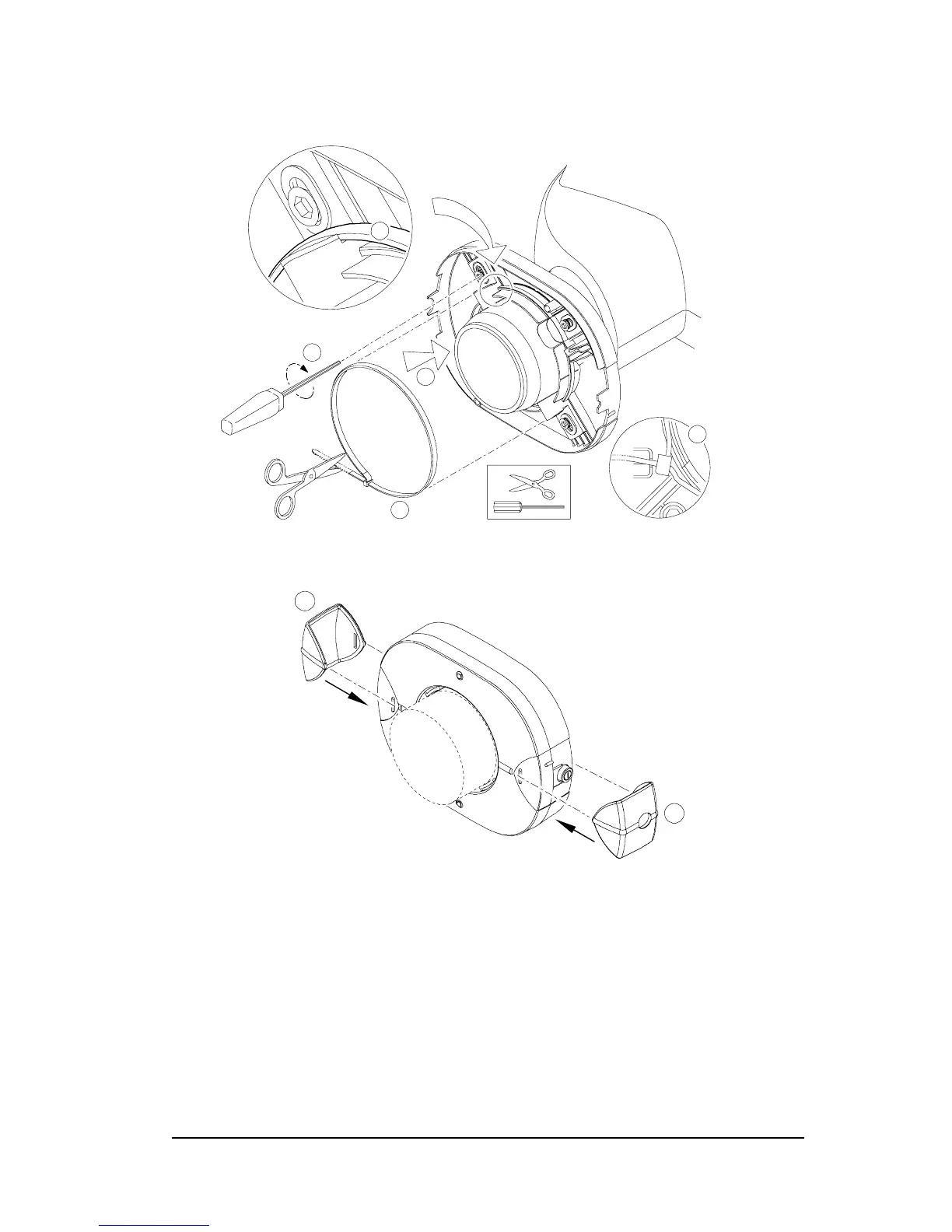

10 Place the cable tie (A) around the holding brackets (B), make a knot and place it in the cable tie
holder (C). Pull to tighten and cut what exceeds the knot. Retighten the screws, if needed.
11 Position correctly the front cover with the board making sure that the ON/OFF button is on the
appropriate place.
12 Position correctly the attachment brackets (A).
13 Press quickly the ON/OFF button to turn ON the IPS device and check that the front upper LED is
lit.
Press quickly the ON/OFF button to turn ON the back upper LED to check that it is lit.
14 Press and hold the ON/OFF button until all the LEDs are ON, then let go the ON/OFF button to
turn OFF the IPS.
The IPS aiming ring installation is finished.
