Kodak RVG 6500 IPS System User Manual

26 Chapter 5 Setting Up the KODAK RVG 6500 Systems
Mounting the RVG Holders
The RVG sensor and control box holders enable you to have them at reach to optimize your workflow.
You need to install the RVG sensor and control box holders where it best suits your workflow, the X-ray
generator arm, the chair, etc....

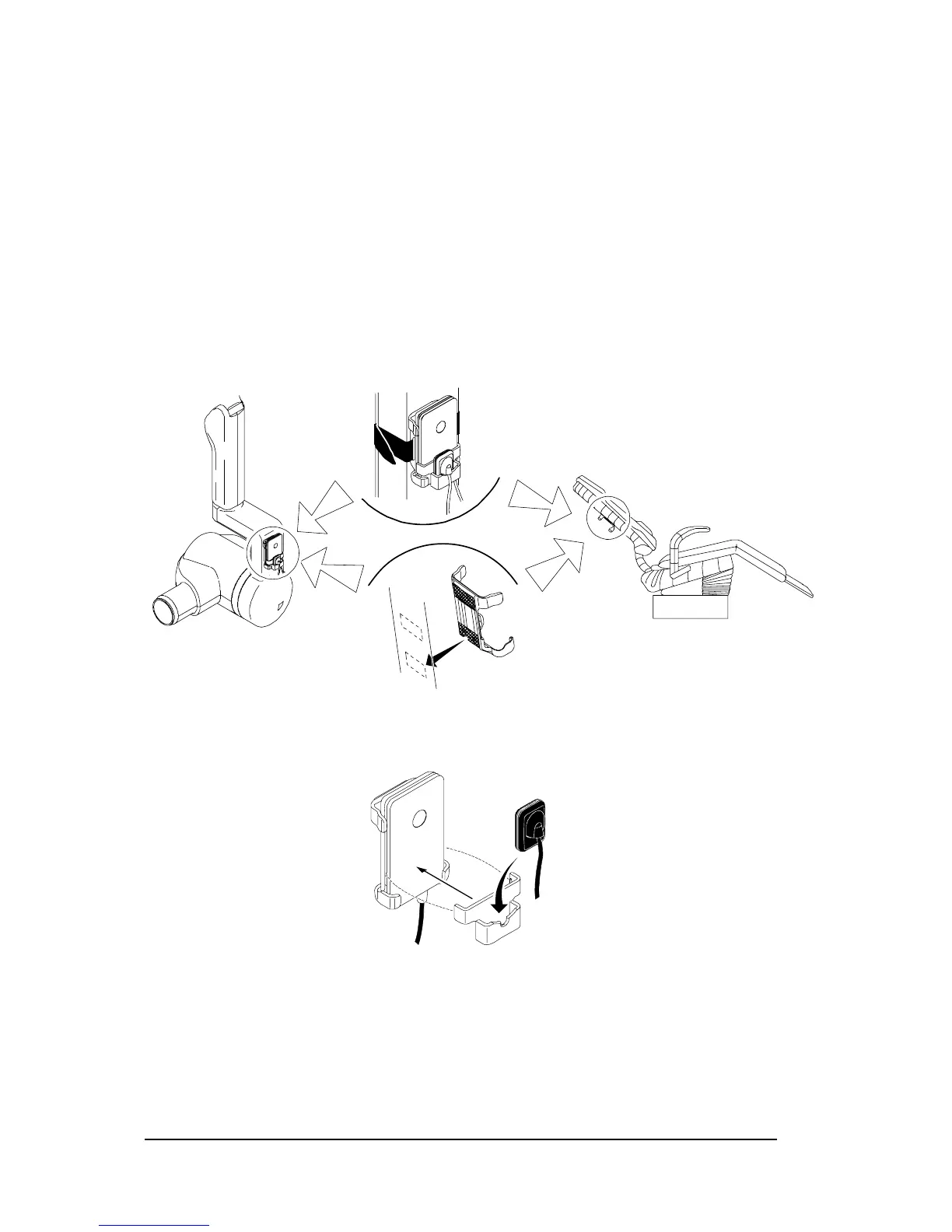

To mount the RVG sensor and control box holders, follow these steps:
1 Attach the RVG control box holder with the double-face adhesive or the Velco strap supplied on
the side of the X-ray generator arm.
You can also attach the RVG control box holder with the double-face adhesive or the Velco strap
to the chair or any other flat surface close to the patient’s chair.
The RVG control box holder can also be mounted on the wall with screws (not supplied).
2 Clip the RVG sensor holder on the control box. Insert the RVG sensor in its holder.
