The RVG Acquisition Interface
The RVG Acquisition interface module is a user-friendly working interface that was designed and
developed specifically for the KODAK RVG 6500 intraoral imaging system.

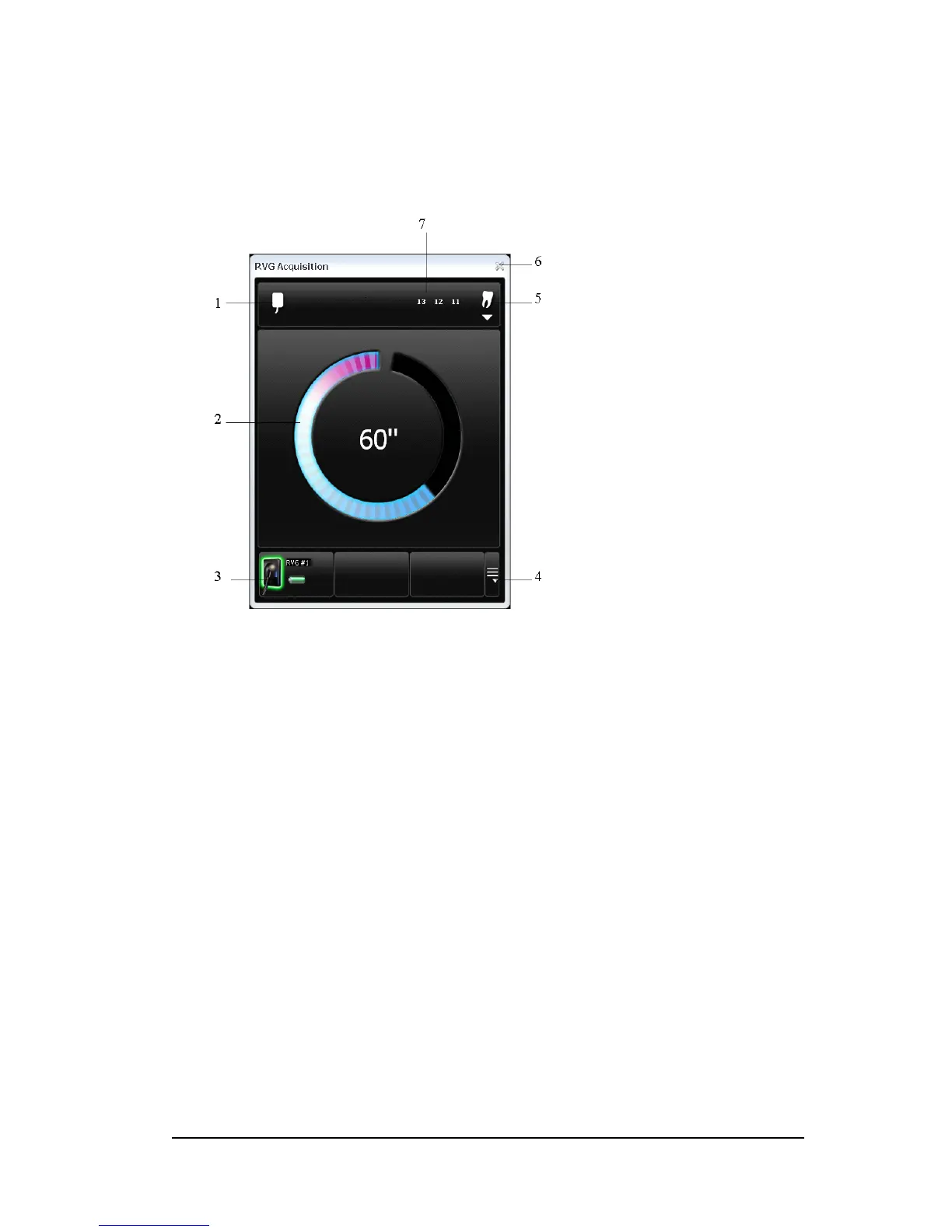

Figure 6 RVG Acquisition Main Interface
1 Sensor orientation: Pre-orients how the x-ray image is displayed in the Imaging Window.
2
Preview screen:
• Indicates the 90 second activation time for acquisition.
• Displays the acquired x-ray image instantly after acquisition.
3
Available sensor(s): Displays maximum 3 sensors with their name, sensor status and battery
status.
• Blue: Sensor on standby
• Green: Sensor ready for acquisition
• Red: Error mode
4 Sensor list: Accesses the list of the sensors (see Figure 6).
5 Dental arch interface: Accesses the dental arch interface for tooth selection (see figure 7).
6 Exit button: Exits the Acquisition Interface.
7 Tooth display: Displays the selected tooth number.
