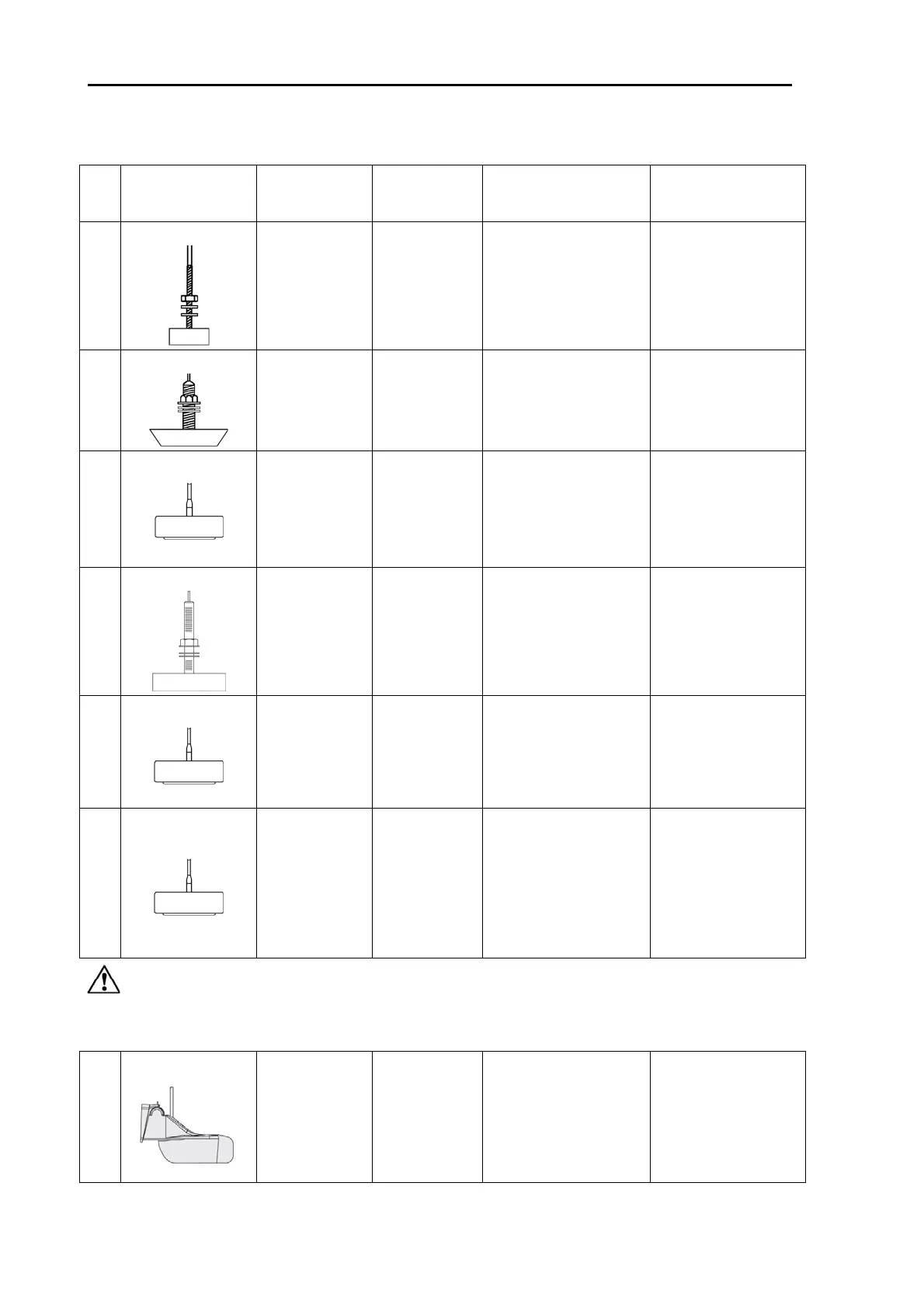

Configuration of Equipment CVS-128/128B
xii 0093112802-06
Type of transducer
No. Specification Frequency Material /
Length of the
cable
Mounting method Beam width
(Right and left x
back and forth)
1
TD-500T-2B
CVS-128
50/200 kHz
600 W
Plastic
9m
Inner-hull 50kHz
50°x50° ( -6dB)
200kHz
17°x17° ( -6dB)
2
TD-500T-3B
CVS-128
50/200 kHz
600 W
Bronze
9m
Through-hull 50kHz
50°x50° ( -6dB)
200kHz
17°x17° ( -6dB)
3
TD-501C
CVS-128
50/200 kHz
1 kW
Rubber mold
10m
Inner-hull/
Ship’s bottom/
Ship’s side
(The CW-840-0.3M is
needed)
50kHz
58°x20° ( -6dB)
200kHz
17°x 6° ( -6dB)
4
TD-501T-3B
CVS-128
50/200 kHz
1 kW
Bronze
9m
Through-hull 50kHz
20°x22° ( -6dB)
200kHz
5°x 5° ( -6dB)
5
TDM-071
CVS-128B
38 to 75 kHz
Urethane mold
15m
Through-hull
Ship’s bottom/
Ship’s side
With water
temperature sensor.
38kHz
30°x20° ( -6dB)
75kHz
16°x 10° ( -6dB)
6
TDM-091D
CVS-128B
42 to 65 kHz
130 to210kHz
Urethane mold
15m
Through-hull
Ship’s bottom/
Ship’s side
With water
temperature sensor.
42kHz
35° ( -6dB)
65kHz
22° ( -6dB)
130kHz
14° ( -6dB)
210kHz
8° ( -6dB)
AIRMAR’s Transducer model P66 is also applicable. (Owner supply)
1
P66
CVS-128
50/200 kHz
600 W
Plastic
10m
Transom
With water
temperature sensor
and speed sensor.
(The CW-840-0.3M is
needed)
50kHz
69°x69° ( -6dB)
200kHz
16°x16° ( -6dB)
Caution: For Inner-hull installation, an Inner-hull kit is necessary.
