CVS-128/128B Chapter 5 Installation
0093112802-06 5-9
Connection of Power Cable
Connect the power cable to the [POWER] connector and the transducer to the [J6] at the rear of
Display unit connector.

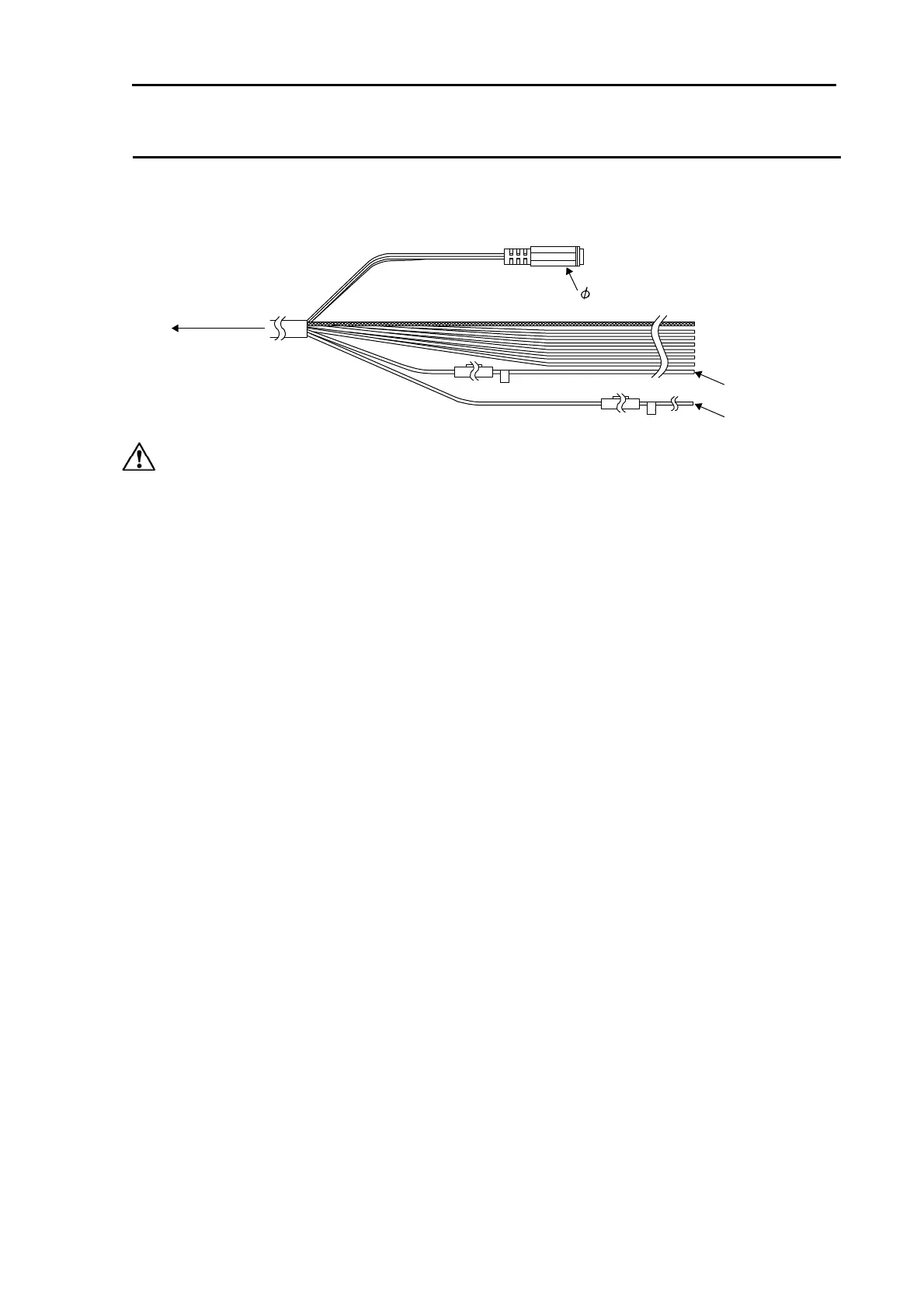

Connection of DC power cable (CW-264A-2M)
To [POWER] connector
3.5 stereo jack
DC+ (Red)
DC- (Black)
Caution: Wind the insulation tape around the un-used lead wire for core-wires not to contact
each other.
Grounding
Use heavy gauge cable for grounding wire.
Connect the grounding wire to the grounding material in a short distance.
When connecting the external equipment of which positive polarity is connected to the ground line,
do not connect the ground of signal line to the cabinet ground.
