10.2.3 Expansion cards -PROFIBUS-
This chapter describes the PROFIBUS expansion card for the SERVOSTAR 600.
Information on the range of functions and the software protocol can be found in the manual
"Communication profile PROFIBUS DP". The PROFIBUS expansion card has two 9-pin Sub-D
sockets wired in parallel.
The supply voltage for the expansion card is provided by the servo amplifier.

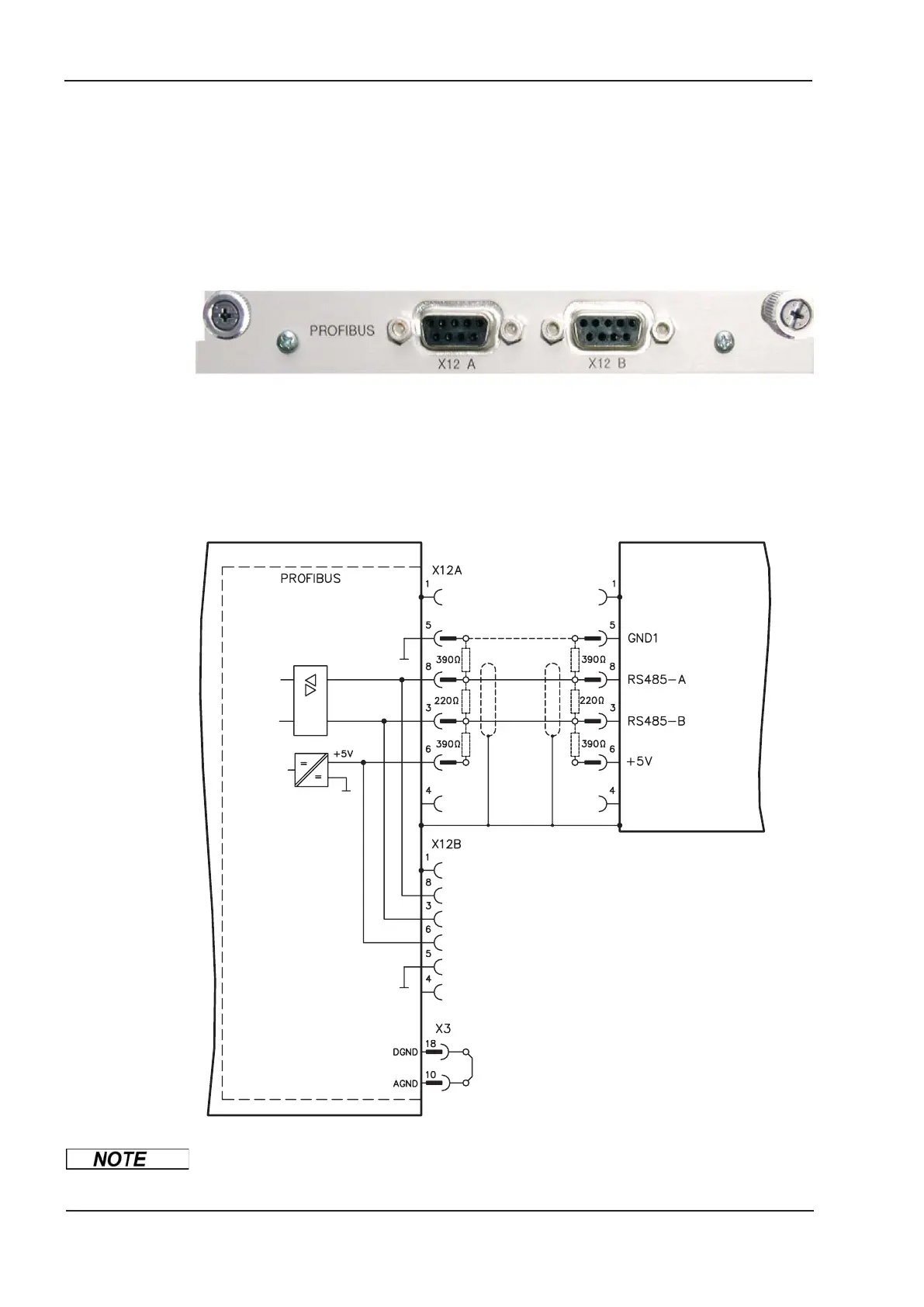

10.2.3.1 Front view
10.2.3.2 Connection technology
Cable selection, cable routing, shielding, bus connector, bus termination and transmission times are
described in the “Installation guidelines for PROFIBUS-DP/FMS” from PNO, the PROFIBUS User
Organization.
10.2.3.3 Connection diagram
AGND and DGND (connector X3) must be joined together !
102 SERVOSTAR
®
601...620 Instructions Manual
Expansions / Accessories
07/2010 Kollmorgen
SERVOSTAR 600
