8.11.1 Resolver (X2)

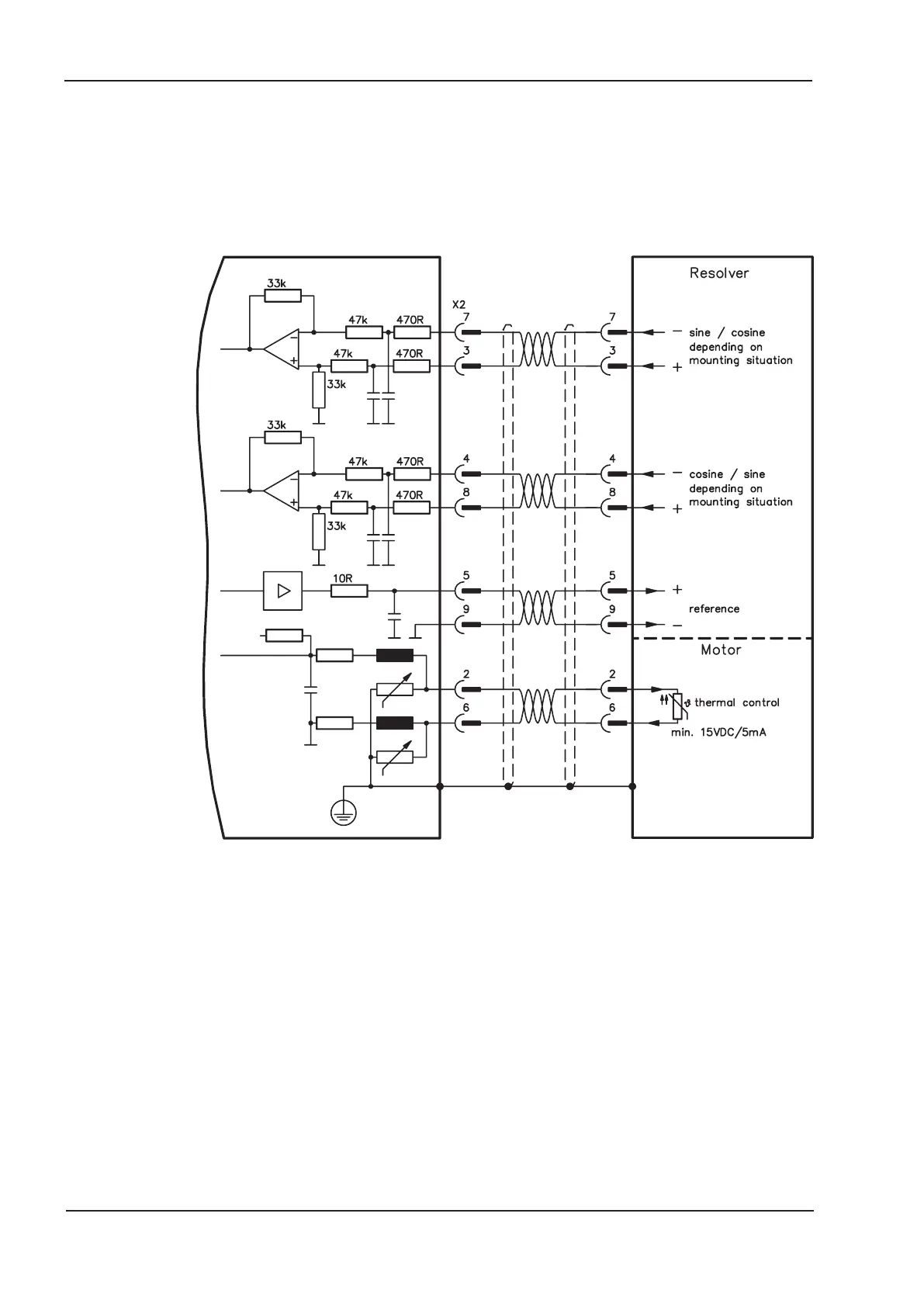

Connection of a Resolver (2 to 36-poles) as a feedback system (primary, ð p.51). The thermal con

trol in the motor is connected via the resolver cable to X2 and evaluated there.

If cable lengths of more than 100 meters are planned, please contact our customer service.

FBTYPE: 0, 3

The pin assignment shown on the encoder side relates to the Kollmorgen motors.

52 SERVOSTAR

601...620 Instructions Manual

Electrical Installation

07/2010 Kollmorgen

SERVOSTAR 600

SubD9

12pol.round
