5 Package
5.1 Package supplied
When you order a SERVOSTAR 600 series amplifier (order numbers ð p.117), you will receive:
— SERVOSTAR 6xx
— mating connectors X3, X4, X0A, X0B, X7, X8
The mating SubD connectors and motor connector X9 are not part of the package!
— Assembly, Installation and Setup Instructions (Instructions Manual)
— Online documentation on CD-ROM
— Setup software DRIVE.EXE on CD-ROM
Accessories:
(must be ordered separately; description see accessories manual)
— AC synchronous servomotor (linear or rotary)
— motor cable (pre-assembled), or both motor connectors separately, with motor cable as a
cut-off length
— feedback cable (pre-assembled or both feedback connectors separately,
with feedback cable as length
— Power supply for encoders with a power consumption of more than 150mA (ð p. 113)
— Terminating adapter for encoders with no terminating resistors (ð p. 113)
— motor choke 3YL for cable length above 25m
— external brake resistor BAR(U)
— communications cable to the PC(ð p.69) or Y-adapter (ð p.84) for setting parameters of up
to 6 servo amplifiers from one PC
— power cable, control cables, fieldbus cables (as lengths)

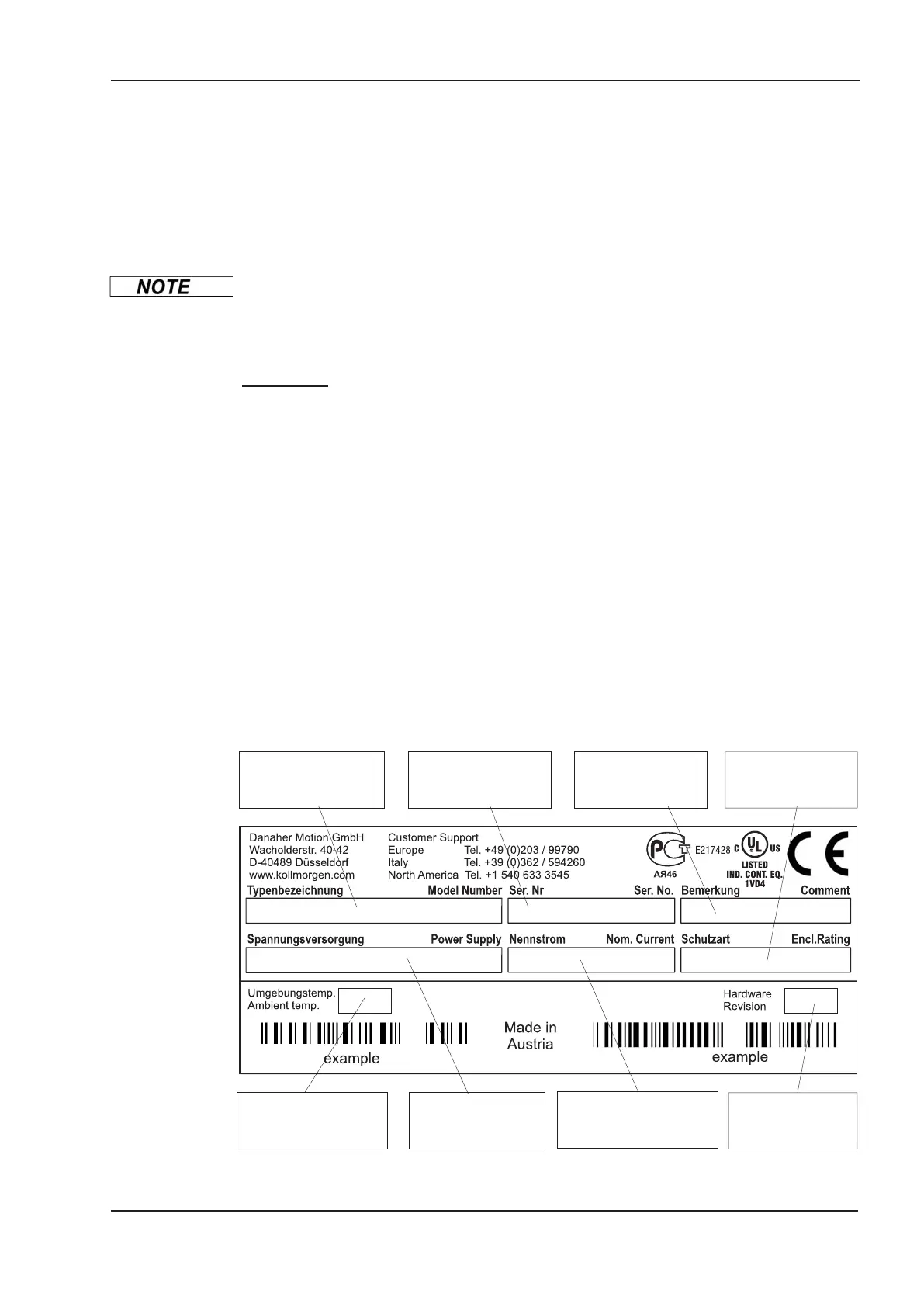

5.2 Nameplate
The nameplate depicted below is attached to the side of the servo amplifier.
The information described below is printed in the individual fields.
SERVOSTAR
®
601...620 Instructions Manual 19
Kollmorgen
07/2010 Package
CommentsSerial number
Servo amplifier type
max. ambient
temperature
Output current
in S1 operation
Hardware Revision
Enclosure Rating
Electrical supply
Installed load
