10.2 Expansion Cards
Information about availability and order numbers can be found on p. 117

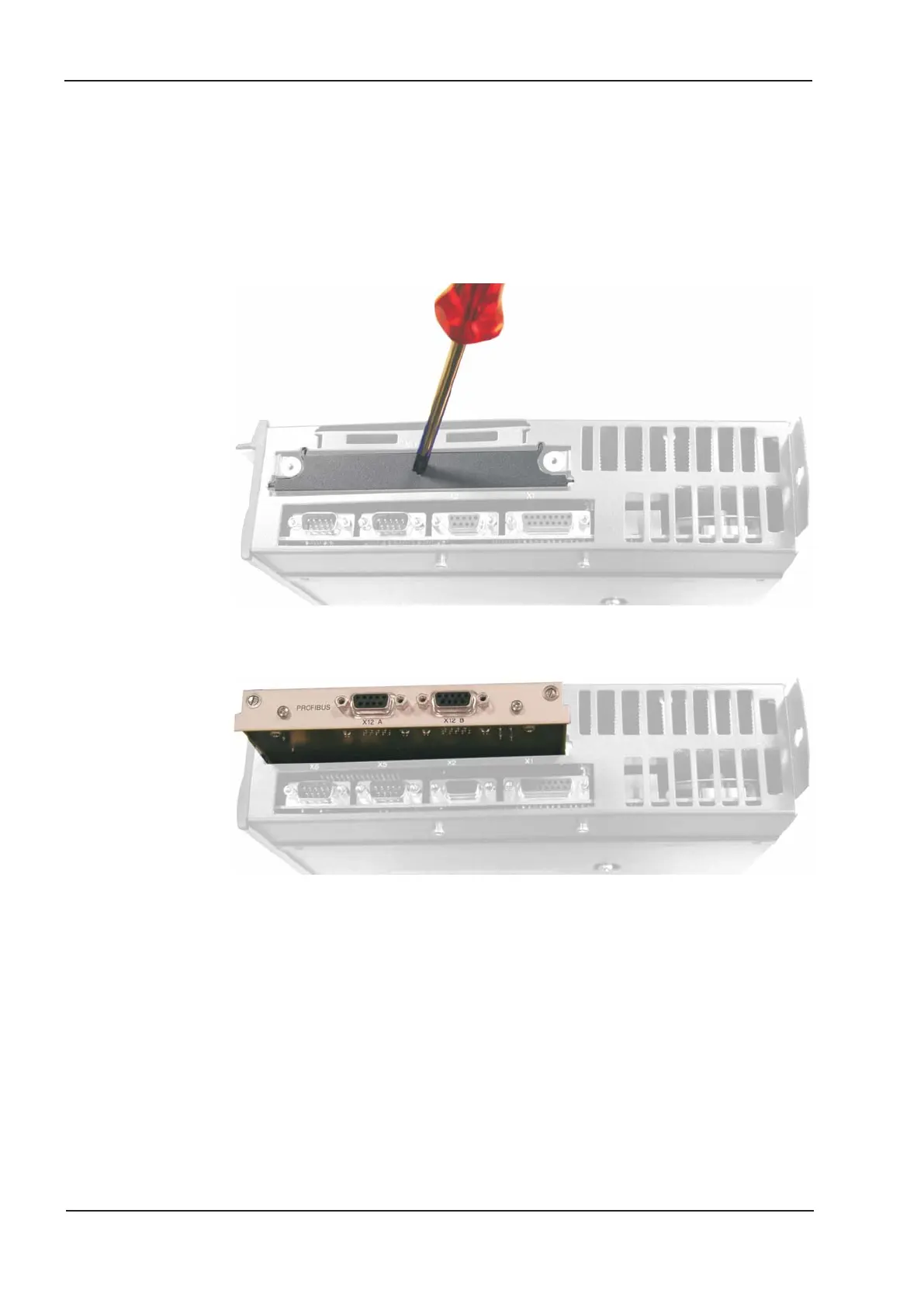

10.2.1 Guide to installation of expansion cards
l
Use a suitable screwdriver to lever off the cover of the option slot.
l
Take care that no small items (such as screws) fall into the open option slot.
l
Push the expansion card carefully into the provided guide rails of the slot, without twi-
sting it.
l
Press the expansion card firmly into the slot, until the front cover touches the fixing
lugs. This ensures that the connectors make good contact.
l
Screw the screws on the front cover into the threads in the fixing lugs.
98 SERVOSTAR
®
601...620 Instructions Manual
Expansions / Accessories
07/2010 Kollmorgen
