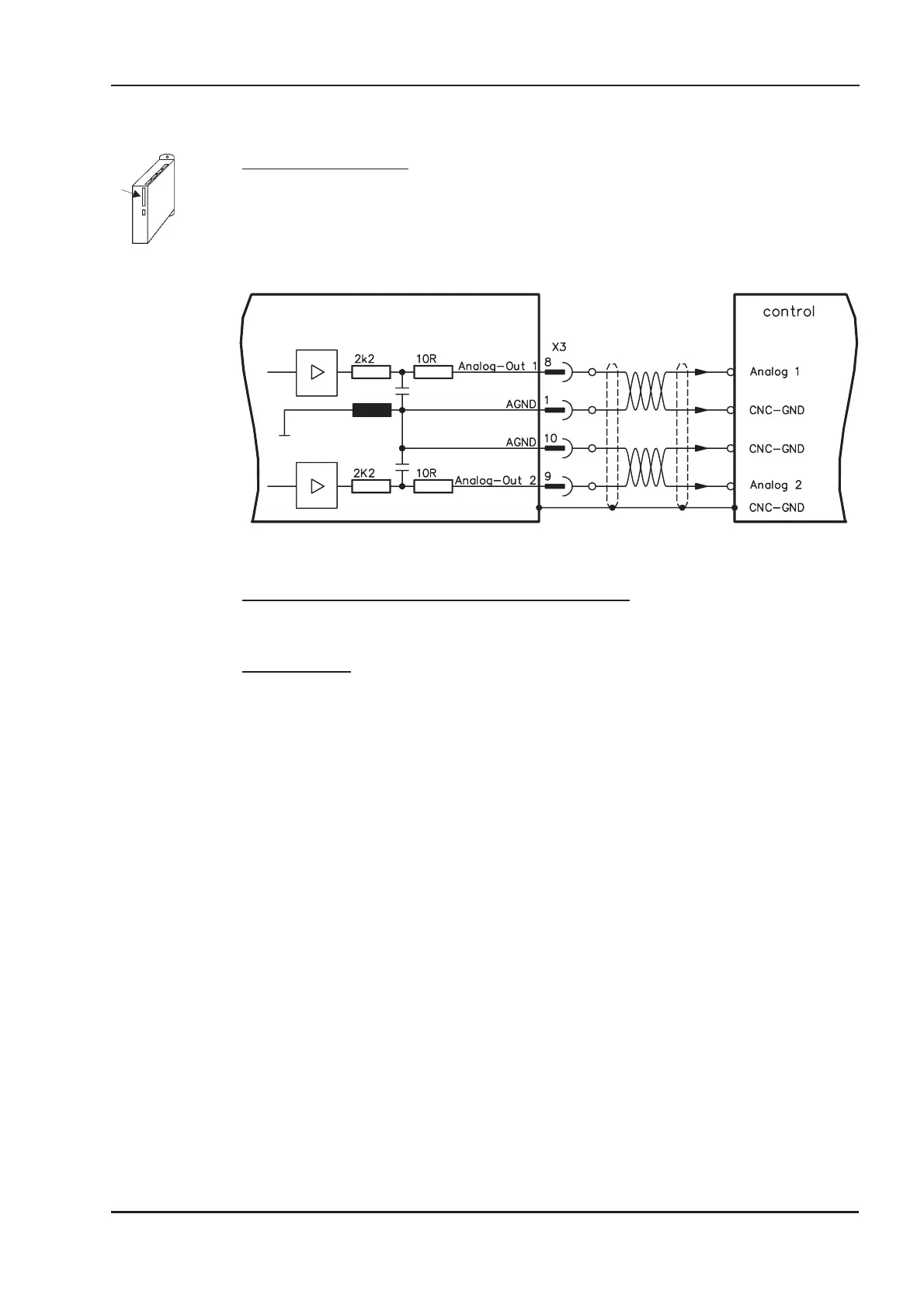

3.5.2 Analog outputs (X3)
Technical characteristics
— Reference ground is analog-GND (AGND, terminal X3/1 and X3/10)
— Output resistance : 2.2kW
— Output voltage ±10V
— Resolution : 10 bit.
Programmable analog outputs Analog-out 1 / Analog-out 2
The terminals X3/8 (Analog-out 1) or X3/9 (Analog-out 2) can have the following analog signals
assigned to them:
Standard setting :
Analog-out 1 : Tachometer voltage VTA (speed)
The output delivers ±10V at the preset limit speed.
Analog-out 2 : Current setpoint IDC (torque)
The IDC-monitor delivers ± 10V at the preset peak current Ipeak (effective r.m.s. value).
You can use the terminals X3/8 (Analog-out 1) or X3/9 (Analog-out 2) to output converted analog
values for digital measurements which are contained in the servo amplifier.
You can find a list of pre-programmed functions on the "analog I/O" screen of our setup software.
SERVOSTAR
®
601...620 Installation Manual 43
Kollmorgen 03/04 Interfaces
