Kolver K-DUCER - Page 27

Vers. 062721 27
Target
The target torque or angle
TARGET: 2.0Nm
Screw
Time
The duration of the rundown in seconds
ST: 1.23
Speed
The closing speed of the rundown
S: 600rpm
Screw
count
Number of successfully tightened screws / total
number of screws in program
Screw: 1/8
Sequence
Current sequence and program within
sequence (program is positional: current/total)
Seq: 1/3
Torque
Final torque of the rundown
T: 1.99Nm
Angle
Final angle of the rundown
A: 114deg
Date-time
Date time of the rundown
18/01/18 17.44.50
Notes or
Errors
Notes such as “PROGRAM END” for OK
results, or error details such as “Err Angle
Max” for NOK results
PROGRAM END , or
Err Angle Max
For example:
BC: 7612320103052 OK PR: 8 KDS-PL10 s/n: 1814914 TARGET: 2.0Nm
ST: 1.23 S:600rpm Screw:1/8 Seq: A 1/1 T: 1.99Nm A: 114deg
18/01/18 17.44.50
NOK PR:26 KDS-MT1.5 s/n: 1964211 TARGET:10.00lbf.in ST: 10.166
S:300rpm Screw:0/7 Seq:1/1 T: 0.00lbf.in A: 20008deg 20/02/30
11.33.10 Err Angle Max

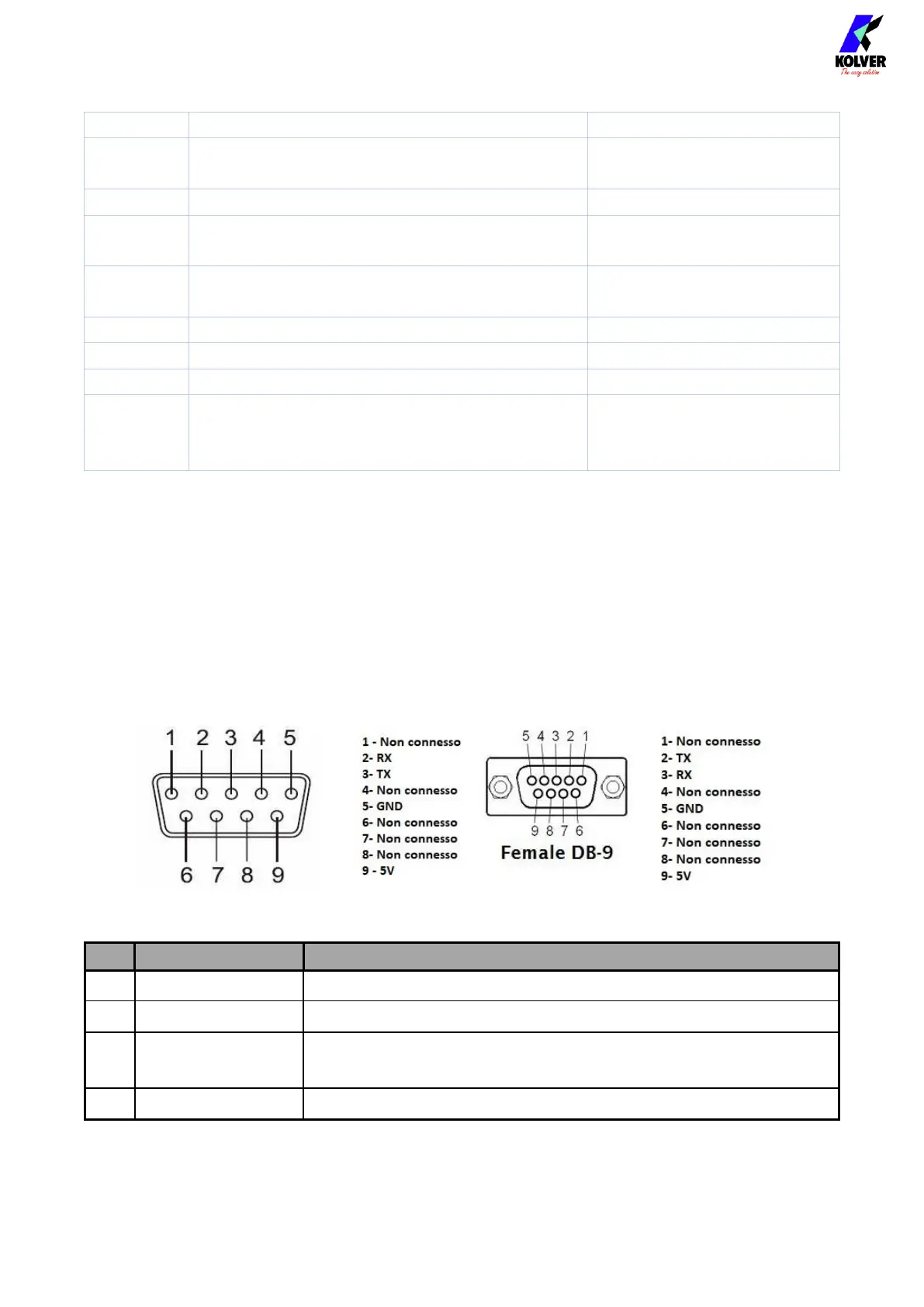

PIN
NAME
FUNCTION
2
RX
RS232 reception.
3
TX
RS232 transmission.
5
GND
Common to every input. Signals have to be enabled making
contact between the desired signal and this pin (GND).
9
+5V
Not used
