Kolver K-DUCER - Exploded Views and Spare Parts

Vers. 062721 80
EXPLODED VIEWS AND SPARE PARTS

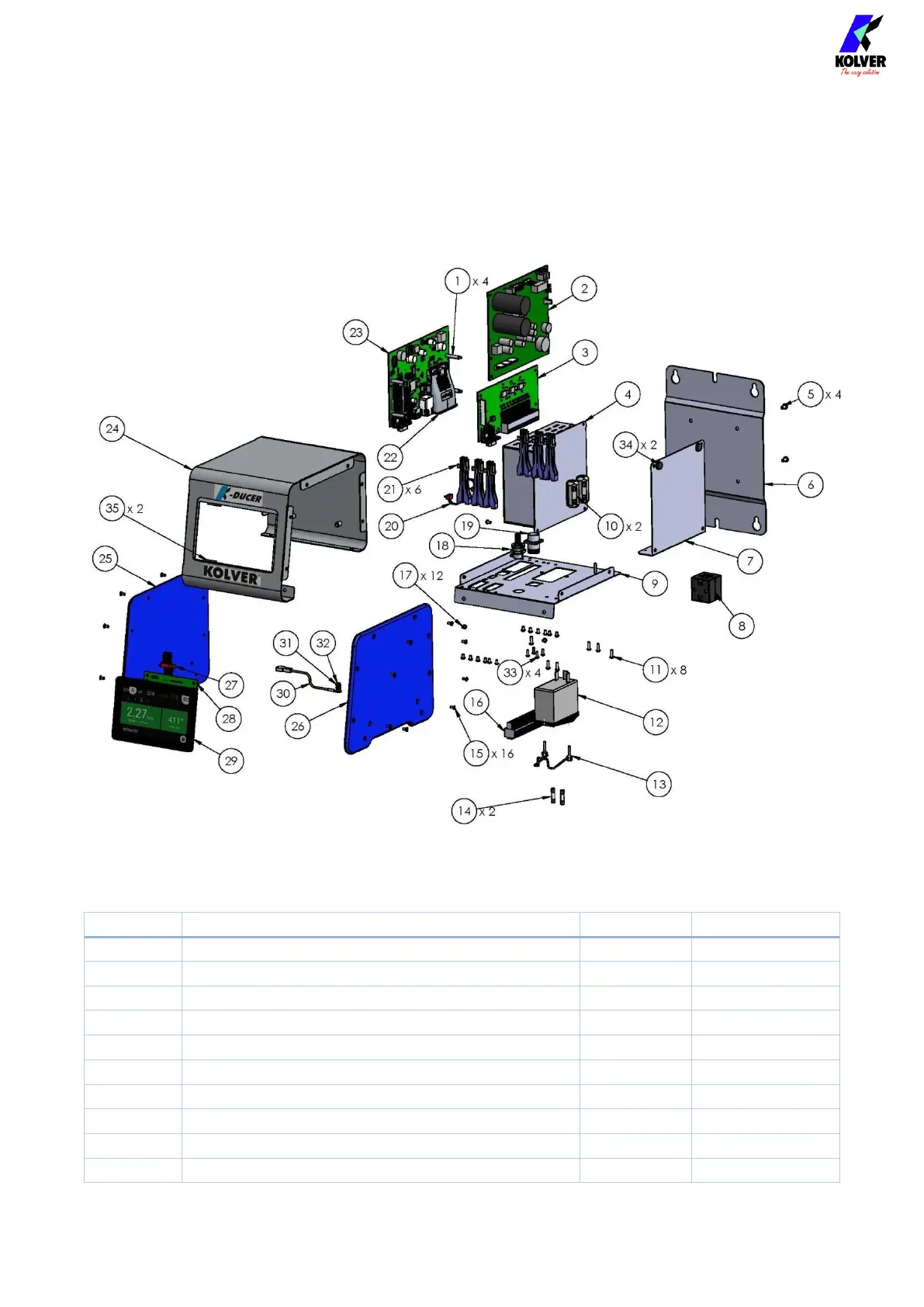

EXPLODED VIEW KDU-1/ KDU-1A:
SPARE PARTS KDU-1/ KDU-1A:
Position
Description
Quantity
Part Number
1
SPACER 22MM KDU
4
872522
2
MOTOR BOARD K-DUCER
1
852530
3
I/O BOARD (44 PIN CONNECTOR) - KDU
1
852533/B
4
SWITCHING
1
872490
5
SCREW M4X8 ZN TX20
4
872534
6
SIDE PLATE
1
872504
7
SUPPORT SWITCHING PLATE KDU-1
1
872505
8
FERRITE RKCF-08-A5
1
872468
9
BOARDS SEAT
1
872503/A
10
FERRITE SCREWDRIVER CONNECTOR
2
872523
