Kolver K-DUCER User Manual

Vers. 062721 65

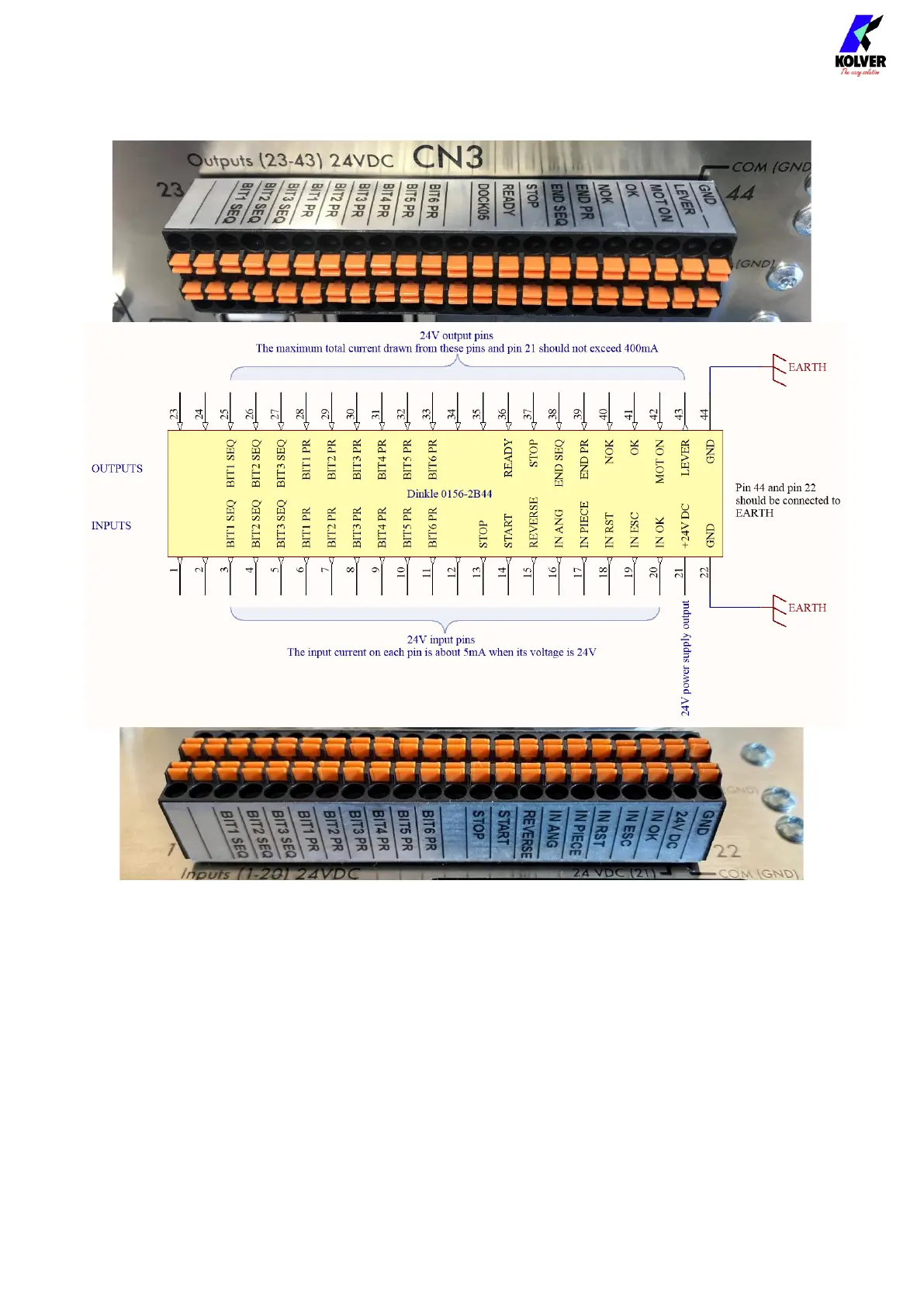

Pinout (CN3)
To connect, simply push the cable or the ferrule directly onto the corresponding hole.
To disconnect the cables, press lightly on the respective orange plate.
Solid cable section min (mm²) 0.2
Solid cable section max (mm²) 0.5
Section of braided cable min (mm²) 0.2
Section of braided cable max (mm²) 0.5
Flexible cable section with min ferrule without sheath (mm²) 0.25
Flexible cable section with max ferrule without sheath (mm²) 0.75
Flexible cable section with min ferrule with sheath (mm²) 0.25
Flexible cable section with max ferrule with sheath (mm²) 0.5
