Binary tables for sequence and program selection
Refer to the tables below for sequence or program selection via CN3, where “1” refers to an
active +24VDC signal with respect to the GND pin and “0” refers to no signal.
The REMOTE PR or REMOTE SEQ setting (General Settings > REMOTE PR and REMOTE
SEQ ) must be active for the input selection to work.

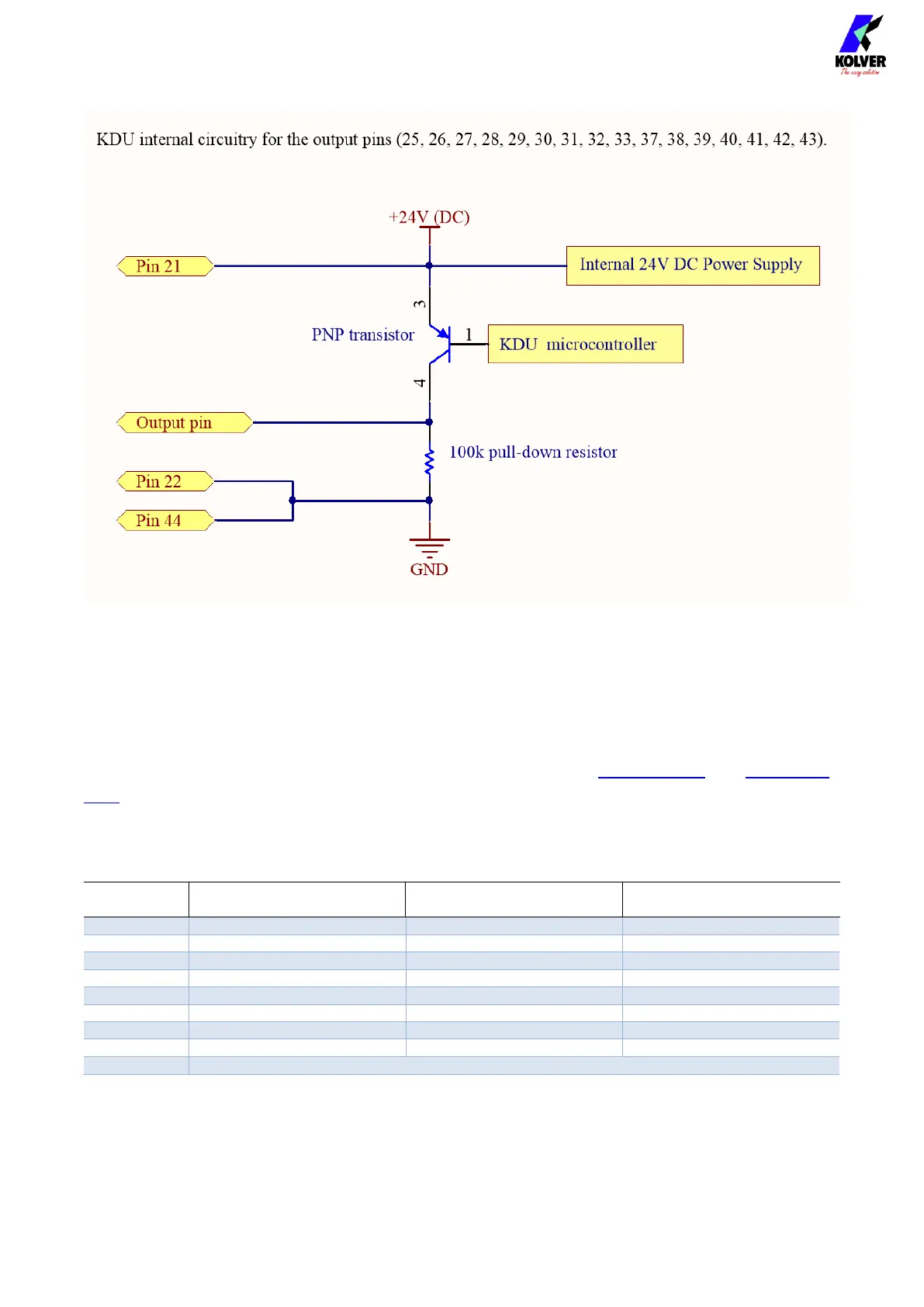

The outputs pins 25-33 will always be active irrespective of the REMOTE PR/SEQ setting,
following the same binary code pattern for the input side reported below.
Sequence
BIT3 SEQ
PIN 5
BIT2 SEQ
PIN 4
BIT1 SEQ
PIN 3
-
0
0
0
A
0
0
1
B
0
1
0
C
0
1
1
D
1
0
0
E
1
0
1
F
1
1
0
G
1
1
1
H
Not Selectable
