OPERATION
DETAILED CONTROLS AND GAUGES
Travel Levers
WARNING
Do not rest your foot on the pedal. If you carry out operations with your
foot on the pedal, the machine may suddenly start if pressure is applied
by mistake to the pedal, and this may lead to serious personal injury. Be
extremely careful when using the pedal for travel and steering
operations, and do not put your foot on the pedal when it is not
necessary.

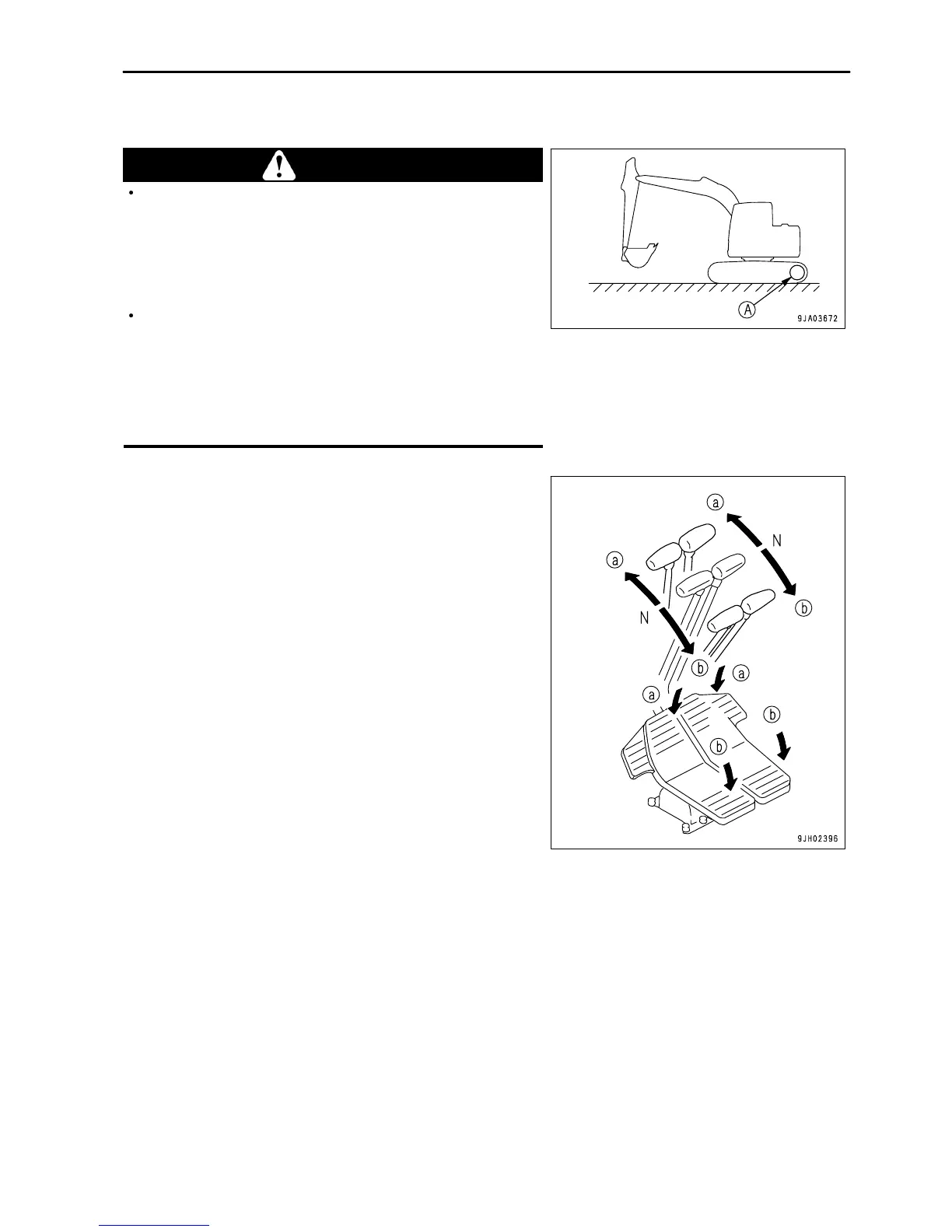

When the track frame is facing the rear, the direction of operation of the
steering lever is the opposite to the direction of movement of the
machine (forward/reverse, left/right turn).
When operating the travel lever, always check if the track frame is facing
the front or the rear. (When the sprocket (A) is at the rear, the track
frame is facing the front.)
This lever (2) is used to change the direction of travel between
forward and reverse. ( ) shows the pedal operation.
(a) FORWARD: The lever is pushed forward
(The pedal is angled forward)
(b) REVERSE: The lever is pulled back
(The pedal is angled back)
N (Neutral): The machine stops
REMARK
If the lever is shifted to the FORWARD or REVERSE position from
the Neutral position, the alarm sounds to warn that the machine is
starting to move.
3 - 75
