OPERATION
DETAILED CONTROLS AND GAUGES
PUMP ROOM DOOR, BATTERY ROOM DOOR
CAUTION
When carrying out inspection and maintenance inside the door, always use the stopper to hold the door open.
NOTICE
Always keep the door locked except when opening it.

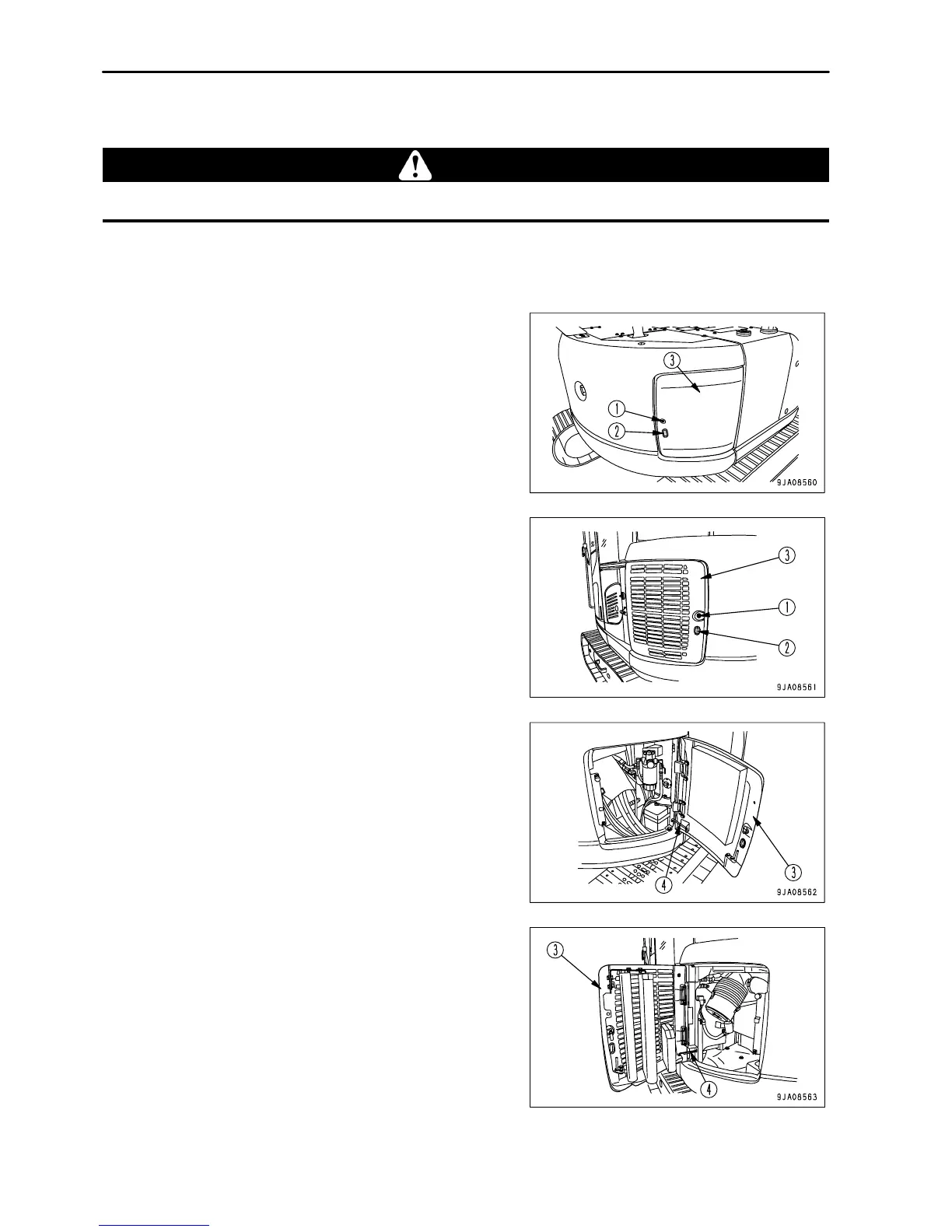

1. Release lock (1) of door.
(For details see "Opening and Closing Covers with Lock
(PAGE 3-85)".)
2. Put a finger in hook (2) and pull door (3) open.
3.
Insert rod (4) in the groove to secure the door.
4. When closing door (3), pull up rod (4) and remove it from the
groove.
5.
Do not forget to lock the door.
REMARK
The pump room door is on the right side of the machine; the battery
room door is on the left side of the machine.
