SAFETY
SAFETY MACHINE OPERATION
TRANSPORTATION
The machine can be divided into parts for transportation, so when transportating the machine, please contact your
Komatsu distributor to have the work carried out.
LOADING AND UNLOADING
When loading or unloading the machine, mistaken operation may
bring the hazard of the machine tipping over or falling, so particular
care is necessary. Always do as follows.
Perform loading and unloading on firm, level ground only.
Maintain a safe distance from the edge of the road or cliff.
Never use the work equipment to load or unload the machine.
There is danger that the machine may fall or tip over.
Always use ramps of adequate strength. Be sure that the ramps
are wide, long, and thick enough to provide a safe loading slope.
Take suitable steps to prevent the ramps from moving out of
position or coming off.
(1)
(2)
(3)
(4)

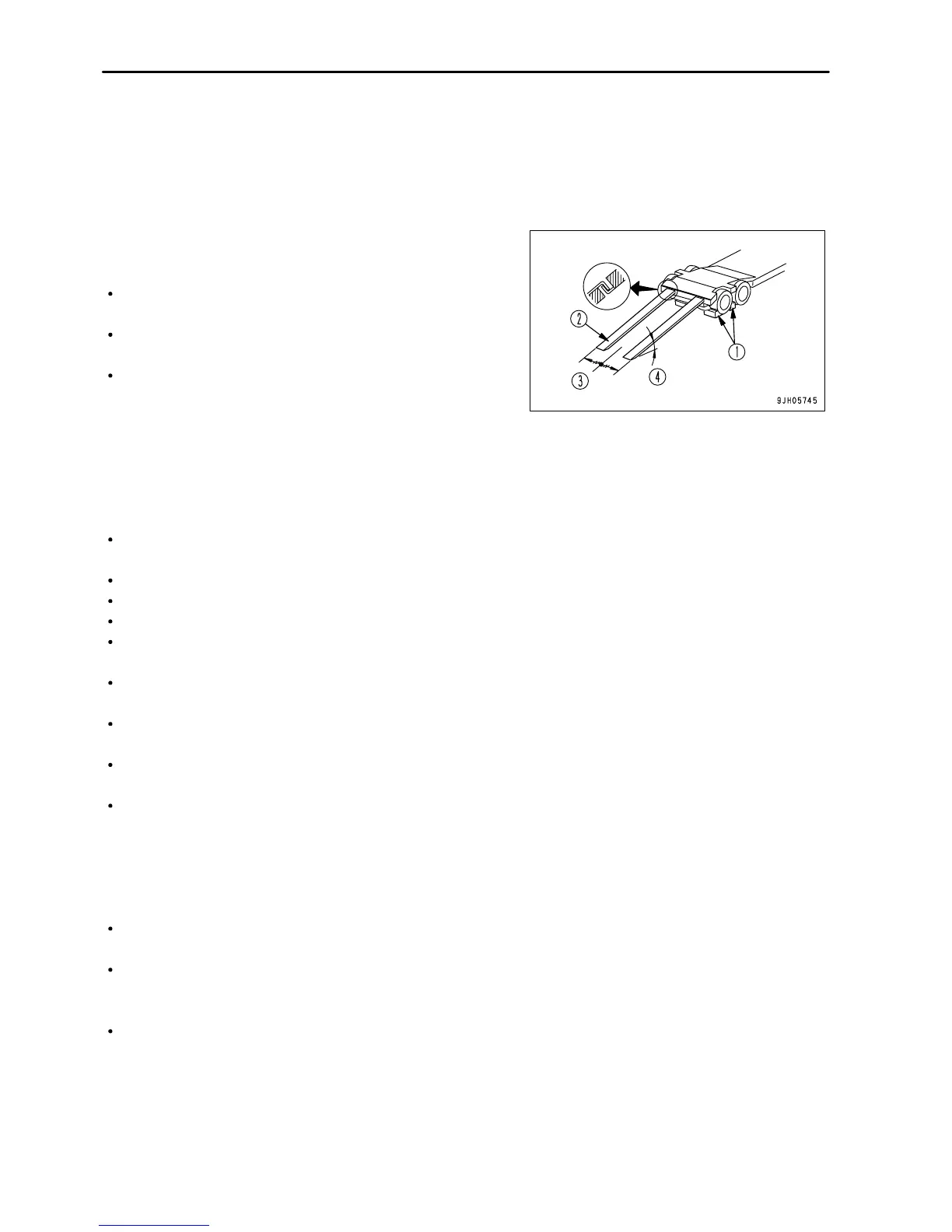

Blocks
Ramp
Centerline of trailer
Angle of ramps: Max. 15
°
Be sure the ramp surface is clean and free of grease, oil, ice and loose materials. Remove dirt from
machine-tracks. On a rainy day, in particular, be extremely careful since the ramp surface is slippery.
Turn the auto-decelerator switch OFF (auto-deceleration function released).
Run the engine at low speed and travel slowly.
When on the ramps, do not operate any lever except for the travel lever.
Never correct your steering on the ramps. If necessary, drive off the ramps, correct the direction, then enter the
ramps again.
The center of gravity of the machine will change suddenly at the joint between the ramps and the track or trailer,
and there is danger of the machine losing its balance. Travel slowly over this point.
When loading or unloading to an embankment or platform, make sure that it has suitable width, strength, and
grade.
When swinging the upper structure on the trailer, the trailer is unstable, so pull in the work equipment and swing
slowly.
For machines equipped with a cab, always lock the door after boarding the machine. If this is not done, the door
may suddenly open during transportation.
Refer to "TRANSPORTATION (PAGE 3-178)".
SHIPPING THE MACHINE
When shipping the machine on a trailer, do as follows.
The weight, transportation height, and overall length of the machine differ according to the work equipment, so
be sure to confirm the dimensions.
When passing over bridges or structures on private land, check first that the structure is strong enough to support
the weight of the machine. When traveling on public roads, check first with the relevant authorities and follow their
instructions.
For details of the shipping procedure, see "TRANSPORTATION (PAGE 3-178)" in the OPERATION section.
