ATTACHMENTS AND OPTIONS
MACHINE READY FOR ATTACHMENT
LONG TERM STORAGE
If the equipment is not to be used for a long time, do as follows.
Set the stop valve in the LOCK condition.
Install a plug to the valve.
Install a plug to the stopvalve.
Set the selector valve to the position for general attachments such as the crusher.
Set the lock pin at the LOCK position.
If there is no breaker or general attachment installed, operating the pedal may cause overheating and other
problems.
SPECIFICATIONS

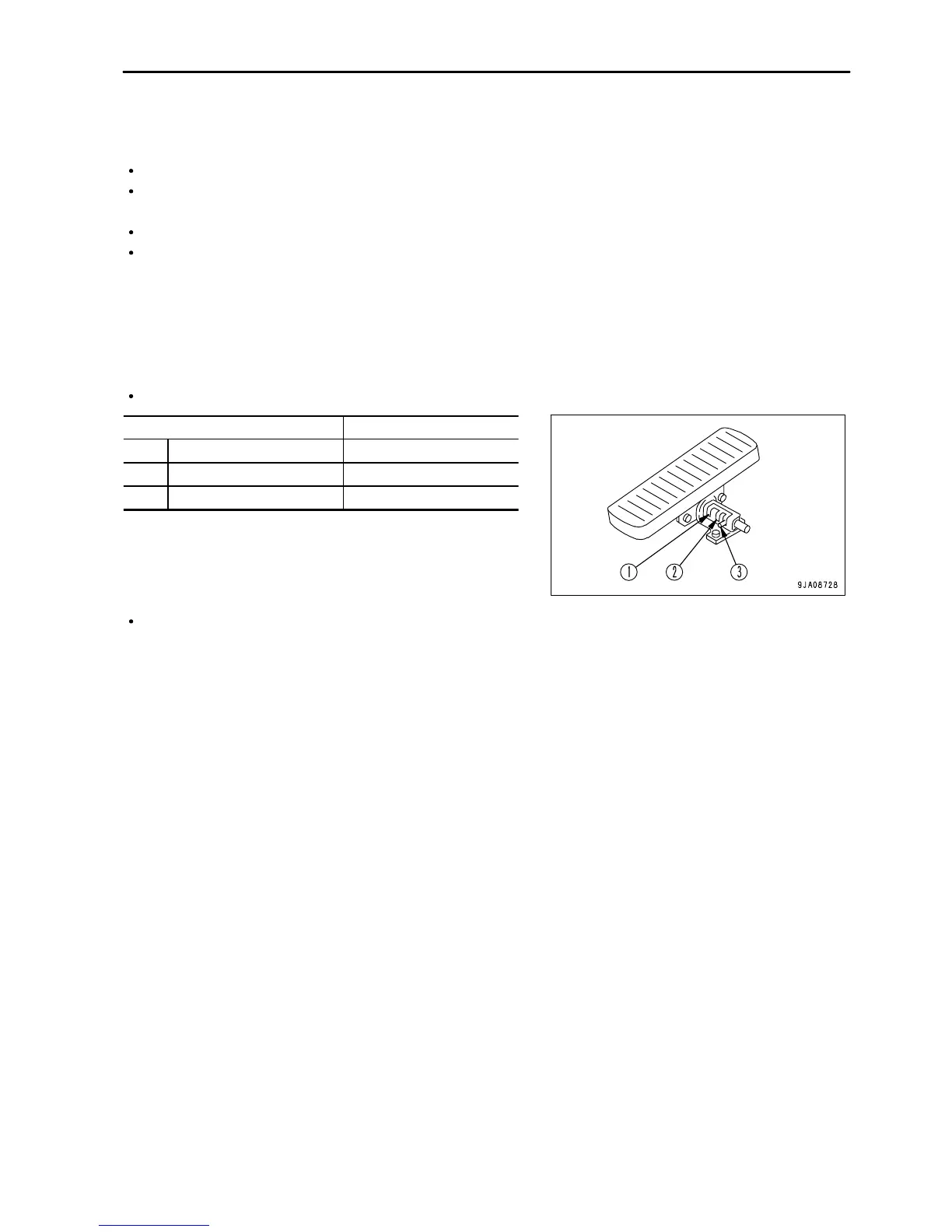

Hydraulic specifications
Oil flow
Lock Pin position Oil flow (liter/min)
(1) Pedal lock --
(2) Half stroke 130
(3) Full stroke 225
Low pressure safety valve Cranking pressure
When using breaker: 17.17 MPa (175 kg/cm
2
, 2490.0 PSI)
When using other attachment: 24.53 MPa (250 kg/cm
2
, 3550.0 PSI)
6 - 17
