MAINTENANCE
MAINTENANCE PROCEDURE
EVERY 1000 HOURS MAINTENANCE
Carry out the EVERY 100 HOURS MAINTENANCE, EVERY 250 HOURS MAINTENANCE, and EVERY 500
HOURS MAINTENANCE at the same time.
CHANGE OIL IN SWING MACHINERY CASE
WARNING
The parts and oil are at high temperature after the engine is stopped, and may cause serious burns. Wait for the temperature to
go down before starting the operation.
Refill capacity: 2.5 liters (0.66 US gal)

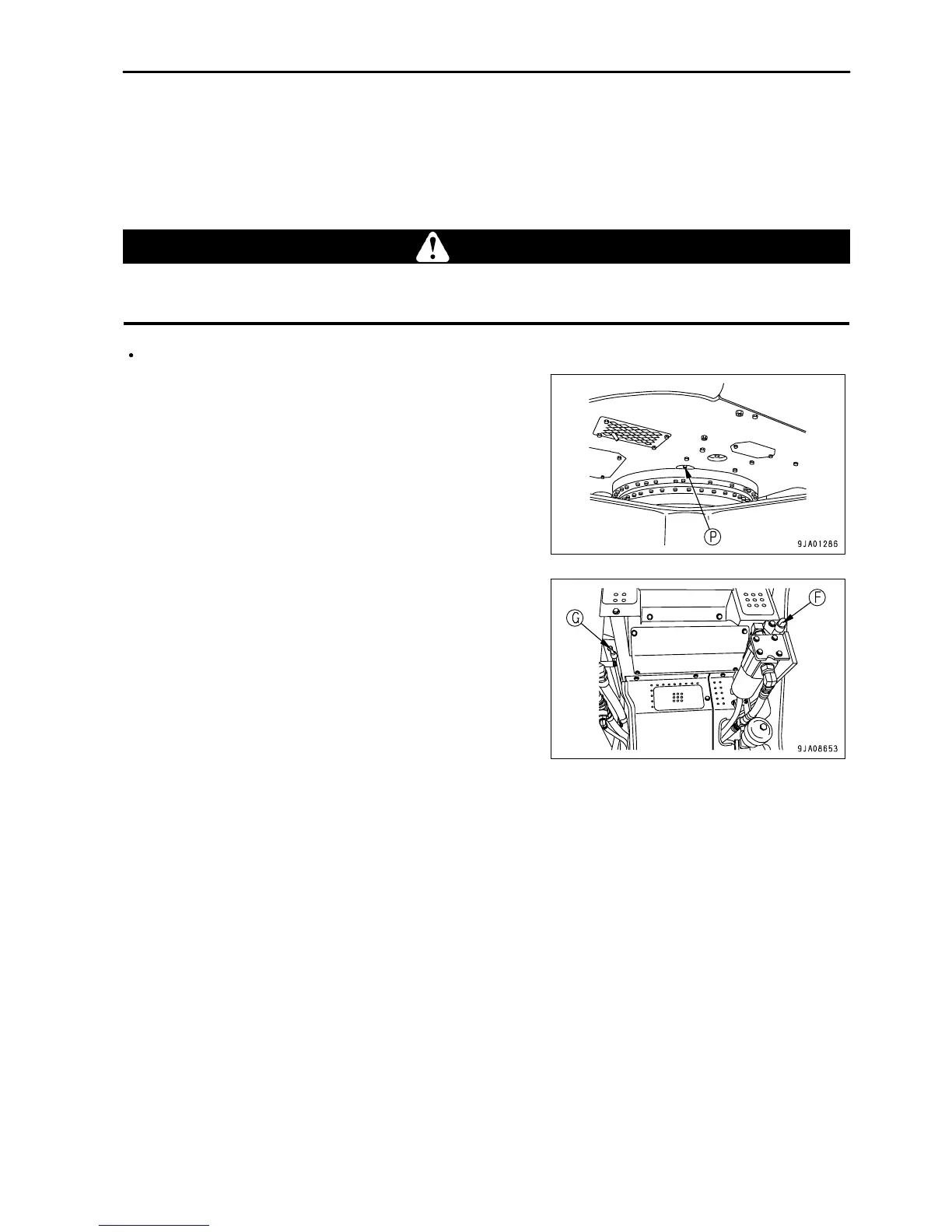

1. Swing the upper structure so that drain plug (P) is between the
left and right tracks.
2.
Set an oil container under drain valve (P) at the bottom of the
machine.
3.
Remove drain plug (P) at the bottom of the machine, drain the
oil, then tighten the drain plug again.
Tightening torque for drain plug: 44.1 to 93.1 Nm (4.5 to 9.5
kgm, 32.5 to 68.7 lbft)
4.
Remove dipstick (G) and the cap of oil filler (F), then add the
specified amount of oil from oil filler (F).
5. Wipe off the oil on the dipstick with a cloth.
6.
Fully insert dipstick (G) into filler pipe (F), then remove it.
7.
The oil level should be between the H and L marks on oil level
gauge (G). If the oil level is below the L mark, add oil through
oil filler port (F).
8.
If the oil is above the H mark, drain the excess oil from drain
plug (P), then check the oil level again.
4 - 65
