OPERATION
DETAILED CONTROLS AND GAUGES
REMARK
The colors lighting up the monitors related to the emergency stop items, caution items, and basic check items are
as follows.

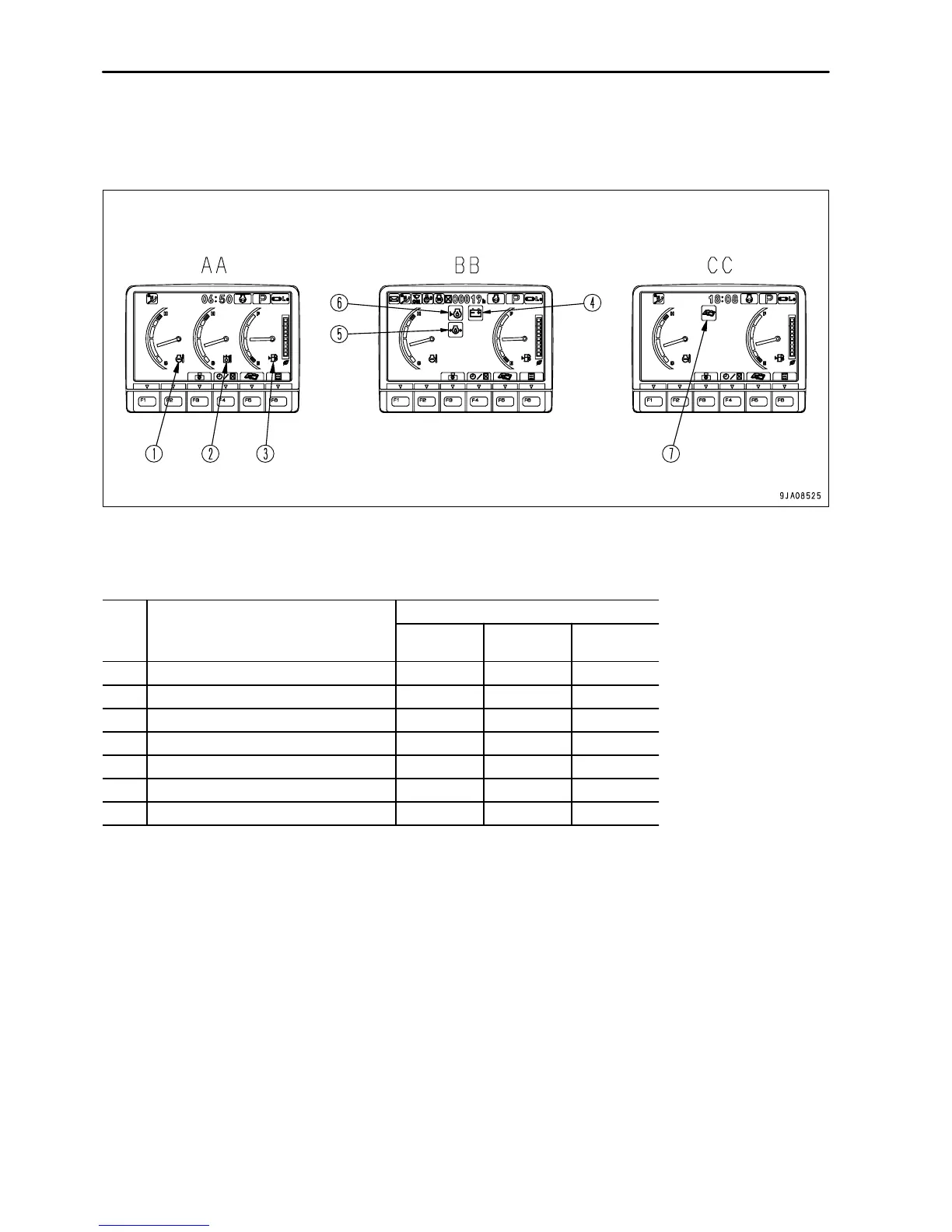

AA: Screen for standard
BB: Screen with all lamps lighted up
CC: Maintenance time warning screen
Type of monitor
Color when monitor lights up
When
normal
When
abnormal
At low
temperature
(1) Engine coolant temperature monitor Blue Red White
(2) Hydraulic oil temperature monitor Blue Red White
(3) Fuel level monitor Blue Red -
(4) Charge level monitor OFF Red -
(5) Engine oil pressure monitor OFF Red -
(6) Engine oil level monitor OFF Red -
(7) Maintenance interval monitor OFF Red -
3 - 10
