2.2 System overview

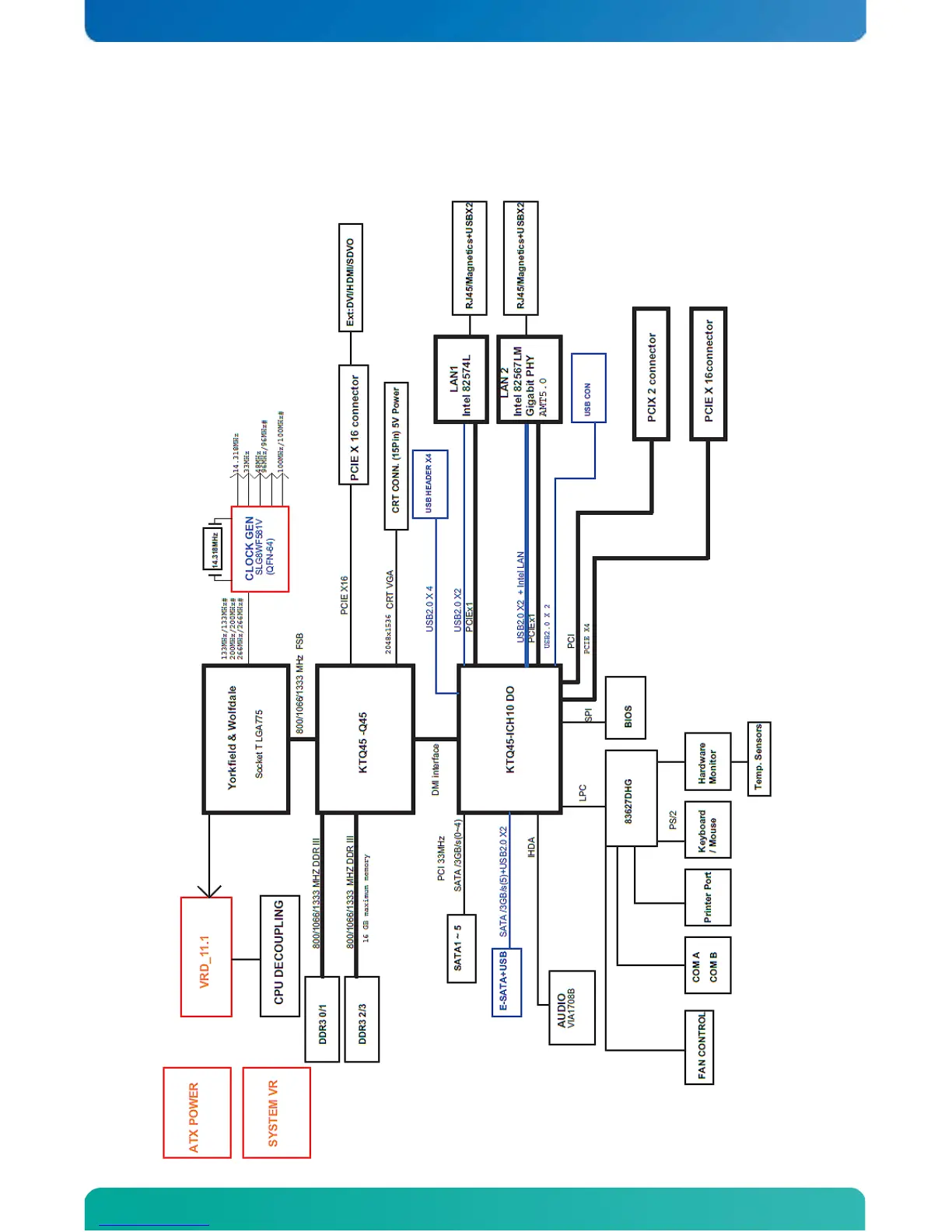

The block diagram below shows the architecture and main components of the KTQ45 boards. The two key
components on the board are the Intel
®
Q45 and Intel
®
ICH10DO Chipsets.
Components shown shaded are optional depending on board type (KTQ45/Flex and ATXE) and variants of
the board.
