Kontron KTQ45/Flex - Connector Layout; KTQ45;Flex Connector Layout; KTQ45 - IO Bracket Area

KTD-00782-H KTQ45 family Page 25 of 92

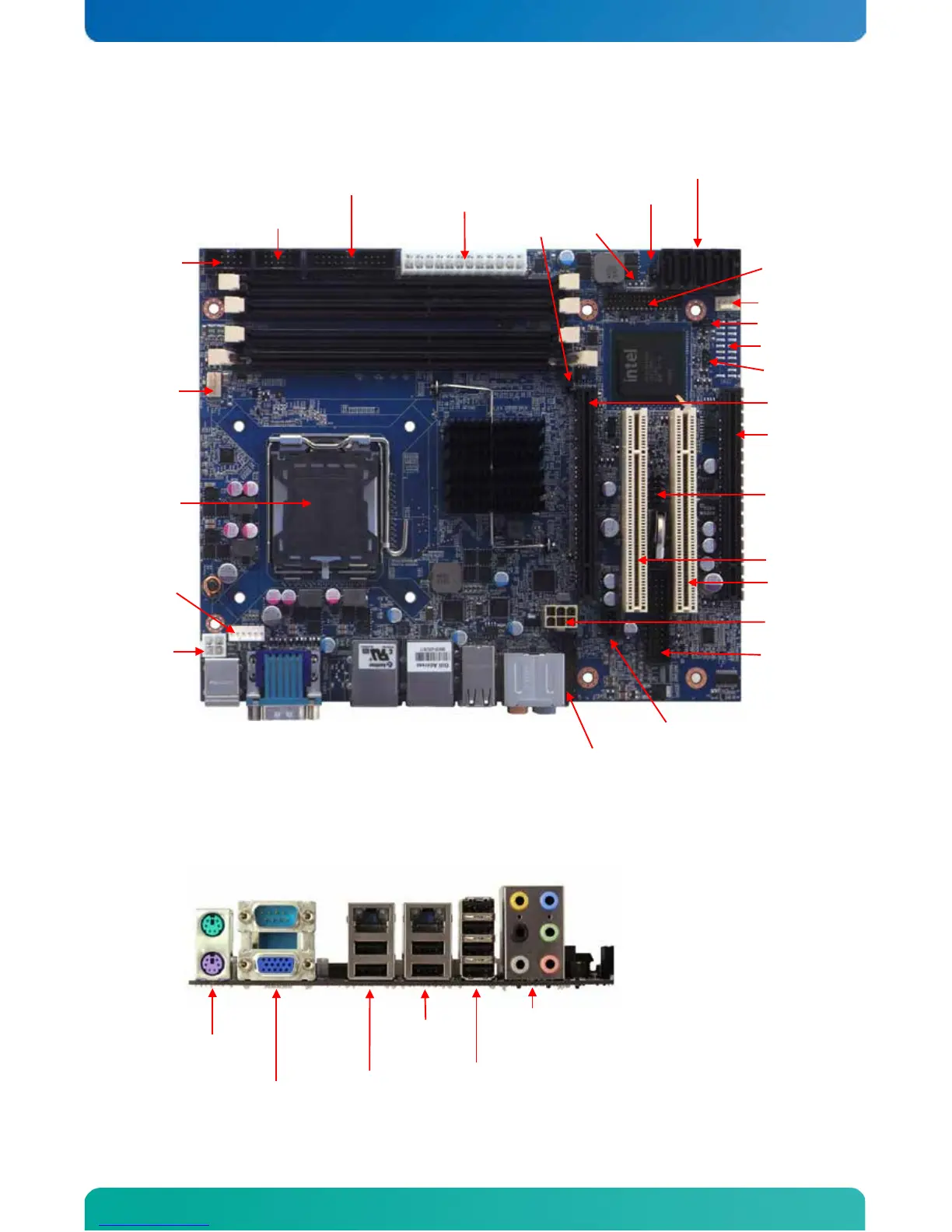

3.1 Connector layout
3.1.1 KTQ45/Flex
3.1.2 KTQ45 - IO Bracket area
CDROM
ATX+12V-6pin
SATA1
SATA2 SATA3 SATA4 SATA5
PCIe x4
ATXPWR
SPI
Clr-CMOS
PCI Slot 2
PCIe x16/SDVO
LPT
FAN_SYS
KBDMSE
FRONTPNL
AUDIO_HEAD
FEATURE
Ext-TPM
FAN_CPU
PCI Slot 1
ATX+12V-4pin
USB8
USB9
CPU Socket
COM2
JP5*
JP3*
Clr-ME
SPI jumper
* JP3 and JP5 used for
BIOS boot selection (only
for manufacture purpose)
COM1
CRT
MSE
KBD
(PS2)
AUDIO
STACK
ETHER2
USB3
USB2
ETHER1
USB5
USB4
USB0
USB1
USB6
USB7
