Korg PA3X User Manual

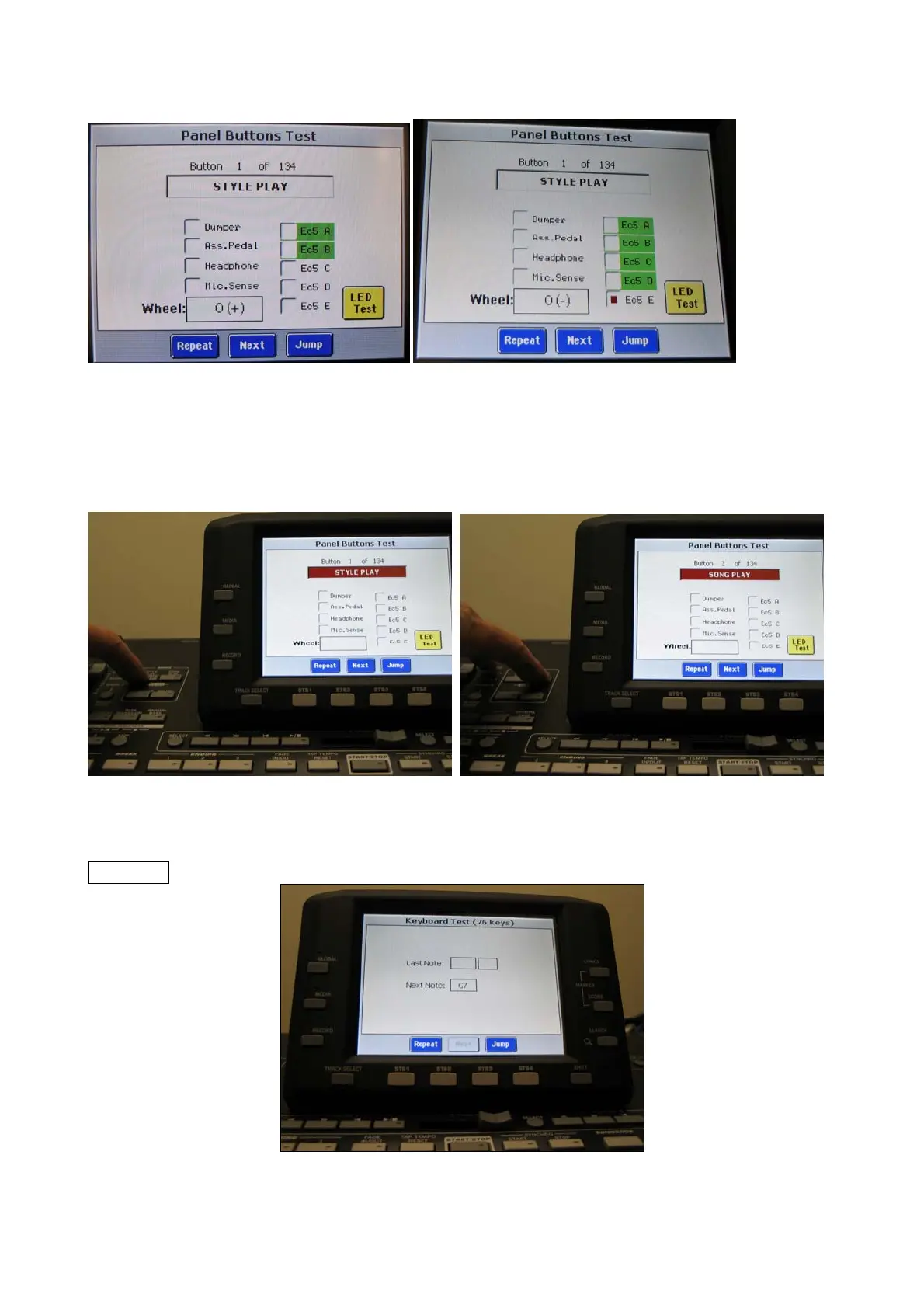

Insert EC5 pedal connection and verify its 5 pedals, from EC5 A a EC5 E
All lights will become green if the switch correctly works.
Start now to press panel switches, following display informations, starting from STYLE
PLAY until ASSEGNABLE SWITCH 3 close to Joystick.
Switches with LED will light on when have to be pressed while switches without LEDs will
light all other LEDs at their press; red/green bicolor LED will light in green.
At the end of switches sequence, instrument will automatically pass to keyboard test; to
correctly execute this check you need to connect PaAS option box to Pa3X
Keyboard
For 76keys PA3x keyboard test starts from G7, last key to the right, and ends in E0, first
key to the left.
For 61keys PA3x keyboard test starts from C7, last key to the right, and ends in C1, first
key to the left.

Korg PA3X Specifications

General

Type	Arranger Keyboard
Sound Engine	EDS (Enhanced Definition Synthesis)
MIDI	In, Out, Thru
Keyboard	61 keys (with velocity and aftertouch)
Display	7-inch TouchView TFT display
Storage	Internal SSD
Weight	17.5 kg
Styles	Over 400 styles
User Styles	Up to 1, 200
Sounds	Over 1, 100
Sampling	Yes, with Time Slice function
Sequencer	16-track sequencer
Outputs	L/R
Inputs	Mic/Line, Guitar
USB	Yes, 2 ports
Audio Recording	MP3 recording and playback
