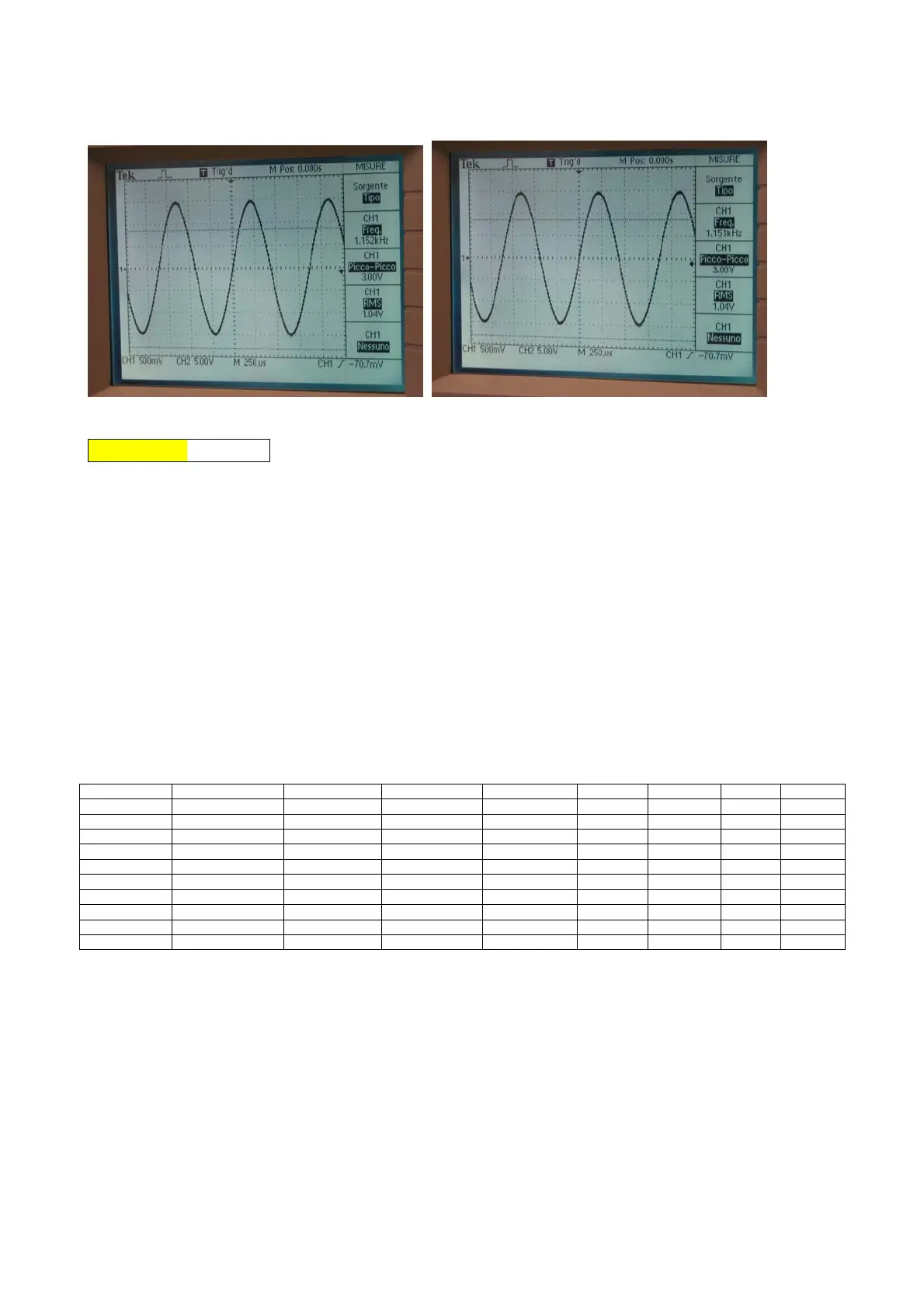

Connect oscilloscope probes to Out1 and Out2 connected MONO jacks check output
levels:
Left typical level 3Vpp +/- 0,5Vpp Right typical level 3Vpp +/- 0,5Vpp
Audio In LG – 10 step
1-10 IN Left Direct To Left
2-10 IN Left Direct To Right
3-10 IN Left TG To Left
4-10 IN Left TG To Right
5-10 MIC To Left
6-10 MIC To Right
7-10 MIC To Out 1
8-10 MIC To Out 2
9-10 MIC To HP Left
10-10 MIC To HP Right
Connect 600ohm Audio Analyzer generator output to the label below specified inputs, then
check the relative output levels. (+/- 0,5Vpp)
Mic gain potentiometer must be turned to the minimum level
MIC In Left In Right In Left Out Right Out Out 1 Out 2 HP L HPL R
1kHz 5Vpp Jack dummy 4,5Vpp Jack dummy
Jack dummy 1kHz 5Vpp Jack dummy 4,5Vpp
1kHz 5Vpp Jack dummy 1kHz 3,8Vpp Jack dummy
Jack dummy 1kHz 5Vpp Jack dummy 1kHz 3,8Vpp
1kHz 1Vpp 8 Vpp Jack dummy
1kHz 1Vpp Jack dummy 8 Vpp
1kHz 1Vpp 7, 8 Vpp
1kHz 1Vpp 7, 8 Vpp
0,5kHz 1Vpp 3 Vpp
0,5kHz 1Vpp 3 Vpp

Korg PA3X Specifications

General

Type	Arranger Keyboard
Sound Engine	EDS (Enhanced Definition Synthesis)
MIDI	In, Out, Thru
Keyboard	61 keys (with velocity and aftertouch)
Display	7-inch TouchView TFT display
Storage	Internal SSD
Weight	17.5 kg
Styles	Over 400 styles
User Styles	Up to 1, 200
Sounds	Over 1, 100
Sampling	Yes, with Time Slice function
Sequencer	16-track sequencer
Outputs	L/R
Inputs	Mic/Line, Guitar
USB	Yes, 2 ports
Audio Recording	MP3 recording and playback
