Korg PA3X User Manual

REF. CODE Q.ty
a 1
b GRA0002168 1
c VTA0010065 39
d PLA0001046 2
e VTA0001039 8
f FER0010175 1
g CAV0010069 1
h 1
h1 CAV0010105 1
h2 CAV0010091 1
h3 CAV0010092 1
i VTA0001045 2
j FERL001082 1
k VTA0001086 4
l CAV0010090 1
m 1
n VTA0001037 4
o FER0010170 1
p FER0010169 1
q FERL001083 1
r GRA0002167 1
s FER0010179 1
t PLA0010184 1
u GRA0002185 1
v VTA0001051 2
w CAV0010101 1
DESCRIPTIONSTEPS
SCHEDA USB FRONTALE PA3X
RIGHT STEEL SIDE PANEL
SCHEDA PANNELLO SINISTRO
CONTROL PANEL PROFILE RIGHT SUPPORT (61)
USB FRAME
VITI 2,9X6,5TC AUTOF.NERE SP
DISPLAY RIGHT METAL SUPPORT
DISPLAY LEFT METAL SUPPORT
LEFT STEEL SIDE PANEL
VITI 2.9X16 TSP
RILANCIO PANNELLO SINISTRO/DESTRO PA3X
DISPLAY GROUP
Pa3X (61k) UPPER CASE DISASSEMBLY 1
UPPER CASE (TO DISASSEMBLY 2)
SCHEDA PANNELLO DESTRO
VITE AUTOFILETTANTE 2.9X7.5 TC ZINCATA BIANCA
CLIP FERMACAVO PICCOLO
DADI M4 AUTOBLOCCANTE
RILANCIO JOYSTICK
VITI 2.9X9.5TC AUTOF.NERE SP
CONTROL PANEL PROFILE LEFT SUPPORT (61)
HARNESS EARTH/STOPPER
JOYSTICK GROUP
RILANCIO SOUND CONTROL
RILANCIO RIBBON CONTROL
VITE 3X13 TCPR
RILANCIO TERRA USB FRONTALE

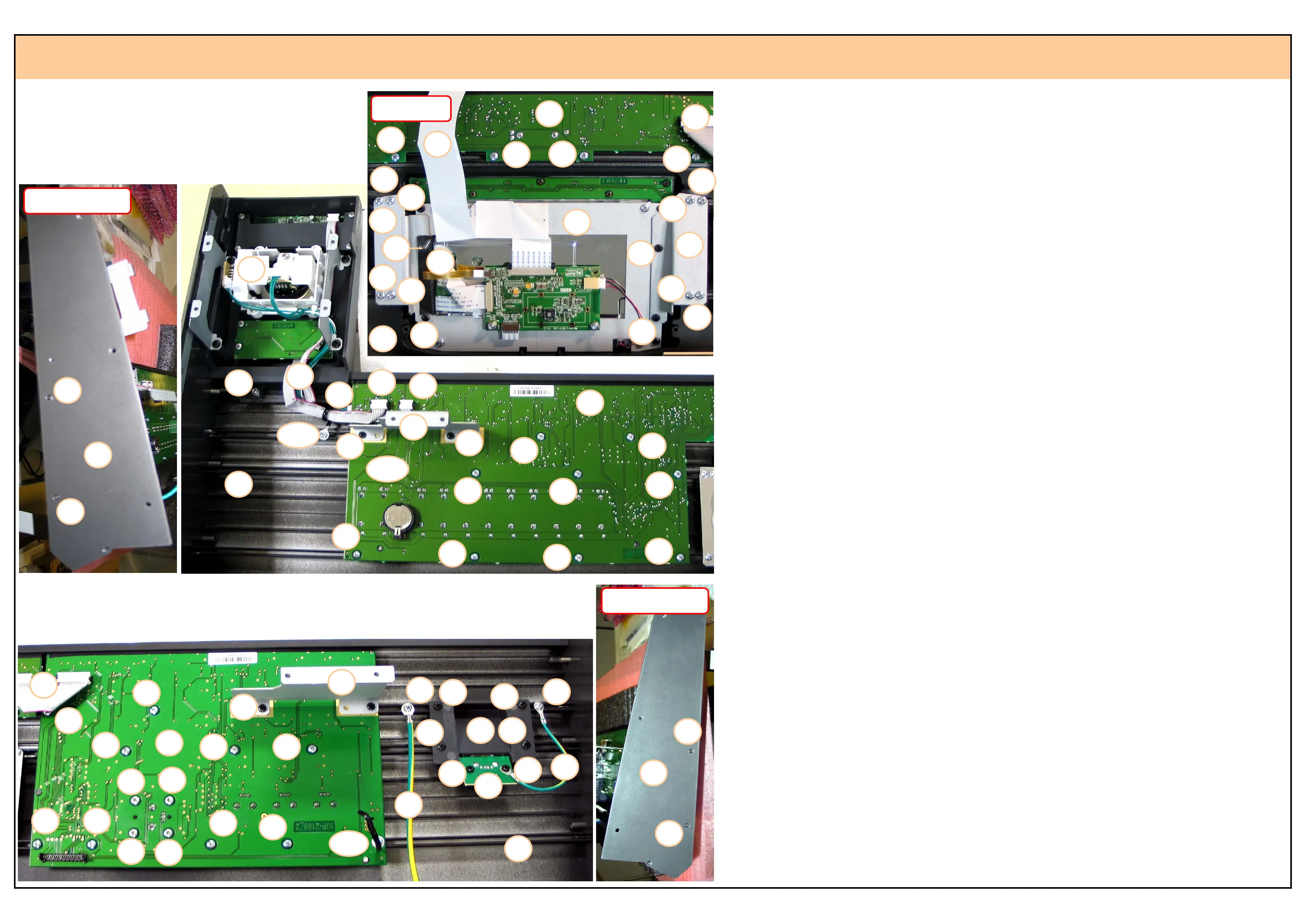

Left side
q
k
k
r
l
c
c
c
c c
c
c
c
c
c
c c
c+d
e
c
s
e
e
e
e
c
t
v
v
u
w
a
c
a
c
c
c
c
c
c
c
c
c
c+d
e
f
e
g
c+d
Right side
j
k
k
h
i
i
h1
h3
h2
b
Display
l
c
c
c
c
b
n
a
c
c
c
c
c
c
c
c
n
o
m
p
n
n
m
m

Korg PA3X Specifications

General

Type	Arranger Keyboard
Sound Engine	EDS (Enhanced Definition Synthesis)
MIDI	In, Out, Thru
Keyboard	61 keys (with velocity and aftertouch)
Display	7-inch TouchView TFT display
Storage	Internal SSD
Weight	17.5 kg
Styles	Over 400 styles
User Styles	Up to 1, 200
Sounds	Over 1, 100
Sampling	Yes, with Time Slice function
Sequencer	16-track sequencer
Outputs	L/R
Inputs	Mic/Line, Guitar
USB	Yes, 2 ports
Audio Recording	MP3 recording and playback
