Korg PA3X User Manual

REF. CODE Q.ty
a GRA0002165 1
b FER0010172 1
c VTA0001031 7
d GRA1002101 1
e FEL0001032 0,5
f CAV0010079 1
g CAV0010074 1
h CAV0010077 1
i CAV0010078 1
j PLA0001046 4
k PLA0001047 2
l PLA0001057 1
m VTA0001037 1
FERRITE FIXING TIE
HARNESS M.B./OUTPUT BOARD
ACETATE TAPE X LCD
HARNESS CONTROL BOARD/M.B./RIGHT PANEL
HARNESS FRONT USB
HARNESS SPK AUDIO
CLIP FERMACAVO PICCOLO
CLIP FERMACAVO GRANDE
MAIN BOARD PA3X
MAIN BOARD SUPPORT
VITI 3MX6 TC NERE
PA2X 128MBYTE SDRAM EXB SODIMM 144
SCREW 2.9X6.5TC SP SELFTHREAD.

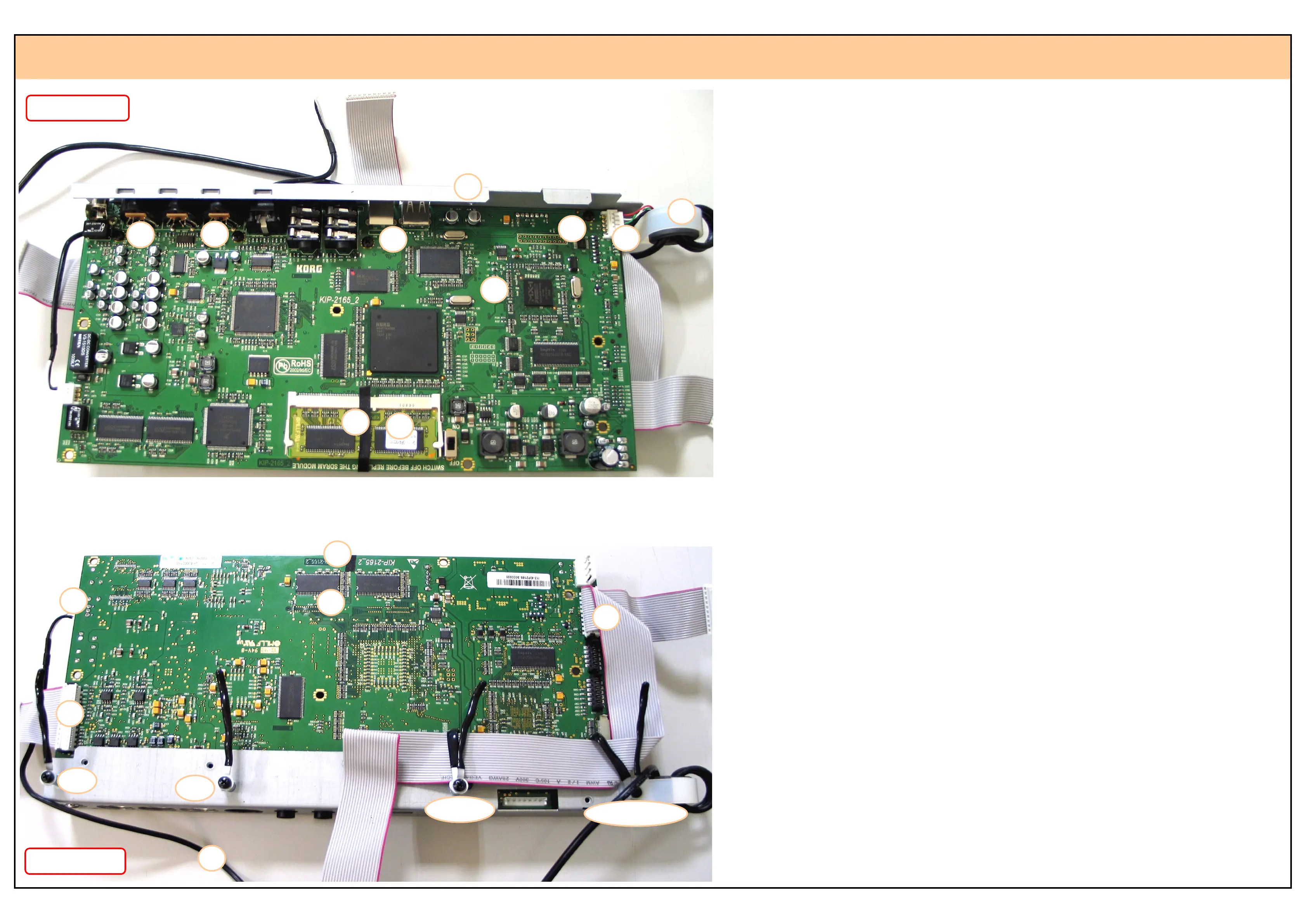

Pa3X (61k) MAIN BOARD GROUP
STEPS DESCRIPTION
Front view
Rear view
a
b
c
c
c
c
d
c+j
g
g
i
a
h
m+j+k+f+g+l
c+j+k+f
c+j
ee
e
f
l
