Play 2 typical left level 16Vpp +/- 0,5Vpp Play 2 typical right level 16Vpp +/- 0,5Vpp
Audio Output – 18 step
1-18 Max Level LEFT 1/4
2-18 Max Level LEFT 2/4
3-18 Max Level LEFT 3/4
4-18 Max Level LEFT 4/4
5-18 Max Level RIGHT 1/4
6-18 Max Level RIGHT 2/4
7-18 Max Level RIGHT 3/4
8-18 Max Level RIGHT 4/4
9-18 Max Level OUT 1 1/4
10-18 Max Level OUT 1 2/4
11-18 Max Level OUT 1 3/4
12-18 Max Level OUT 1 4/4
13-18 Max Level OUT 2 1/4
14-18 Max Level OUT 2 2/4
15-18 Max Level OUT 2 3/4
16-18 Max Level OUT 2 4/4
17-18 Max Level Phones Left
18-18 Max Level Phones Left

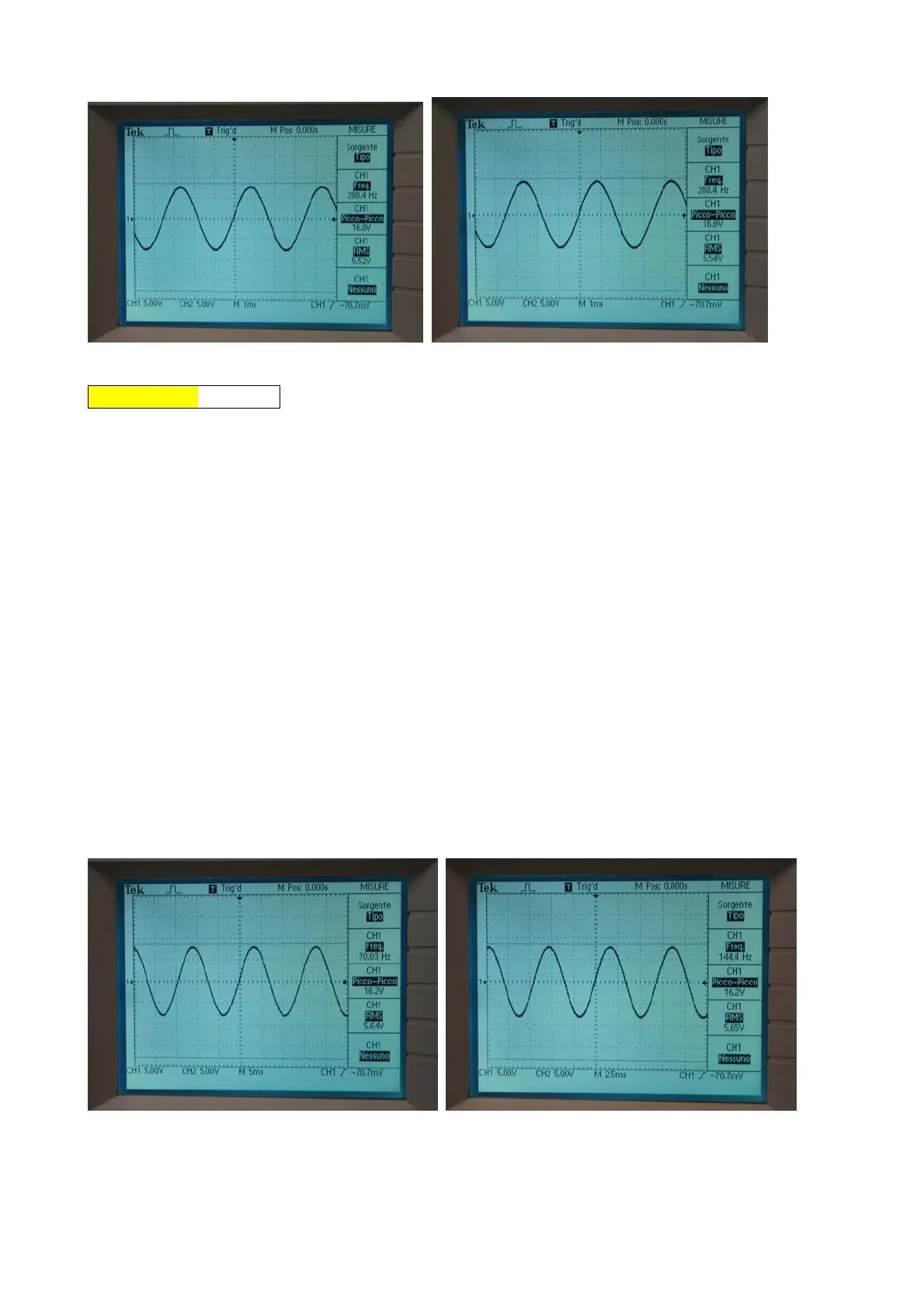

Connect oscilloscope probes to Out1 and Out2 connected MONO jacks and check output
levels
70Hz typical level 16Vpp +/- 0,5Vpp 144Hz typical level 16Vpp +/- 0,5Vpp
