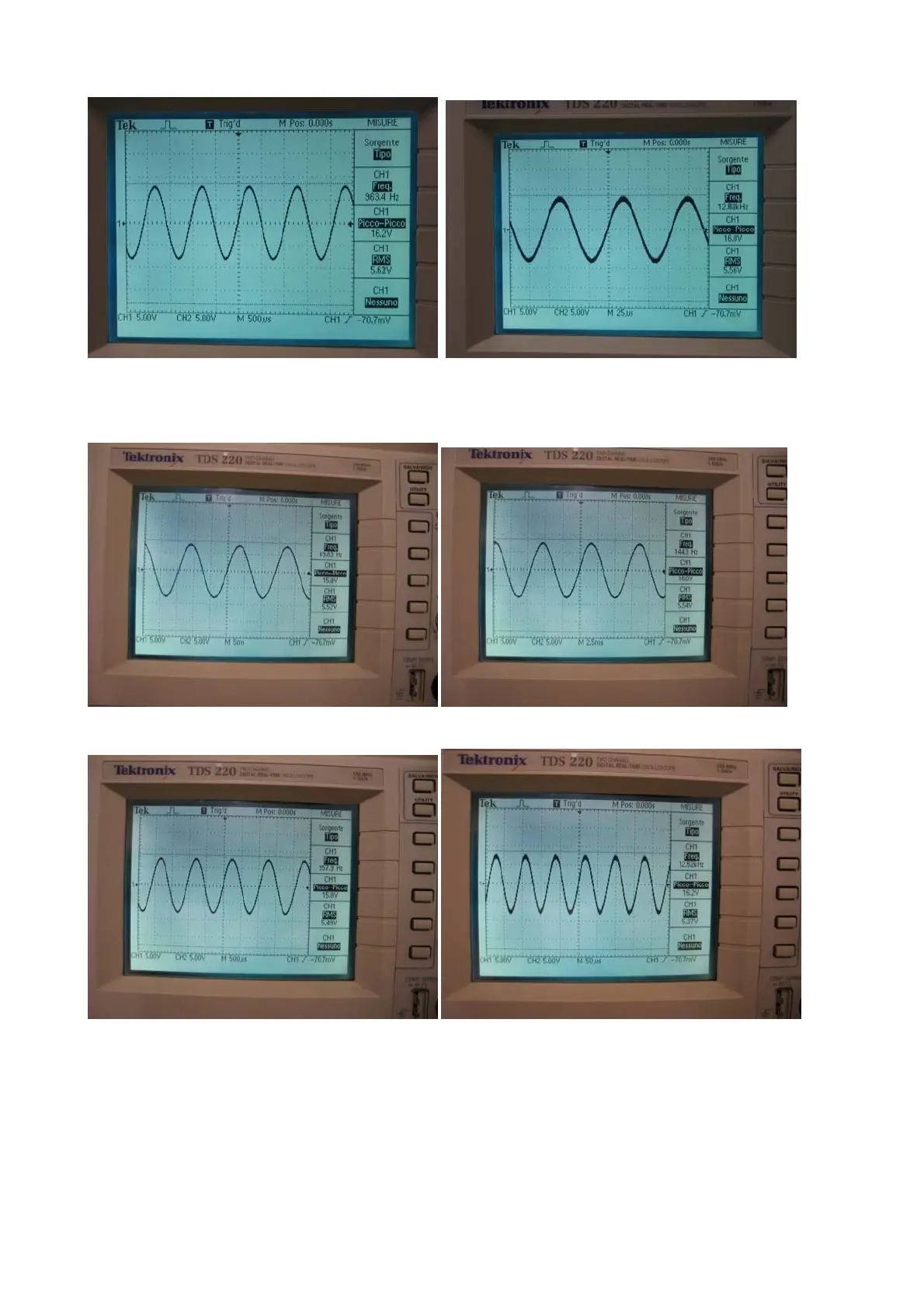

1kHz typical level 16Vpp +/- 0,5Vpp 12kHzH typical level 16Vpp +/- 0,5Vpp
Connect oscilloscope probes to Out1 and Out2 connected MONO jacks and check output
levels
70Hz typical level 16Vpp +/- 0,5Vpp 144Hz typical level 16Vpp +/- 0,5Vpp
1kHz typical level 16Vpp +/- 0,5Vpp 12kHz typical level 16Vpp +/- 0,5Vpp
