Korg PA3X User Manual

Sliders

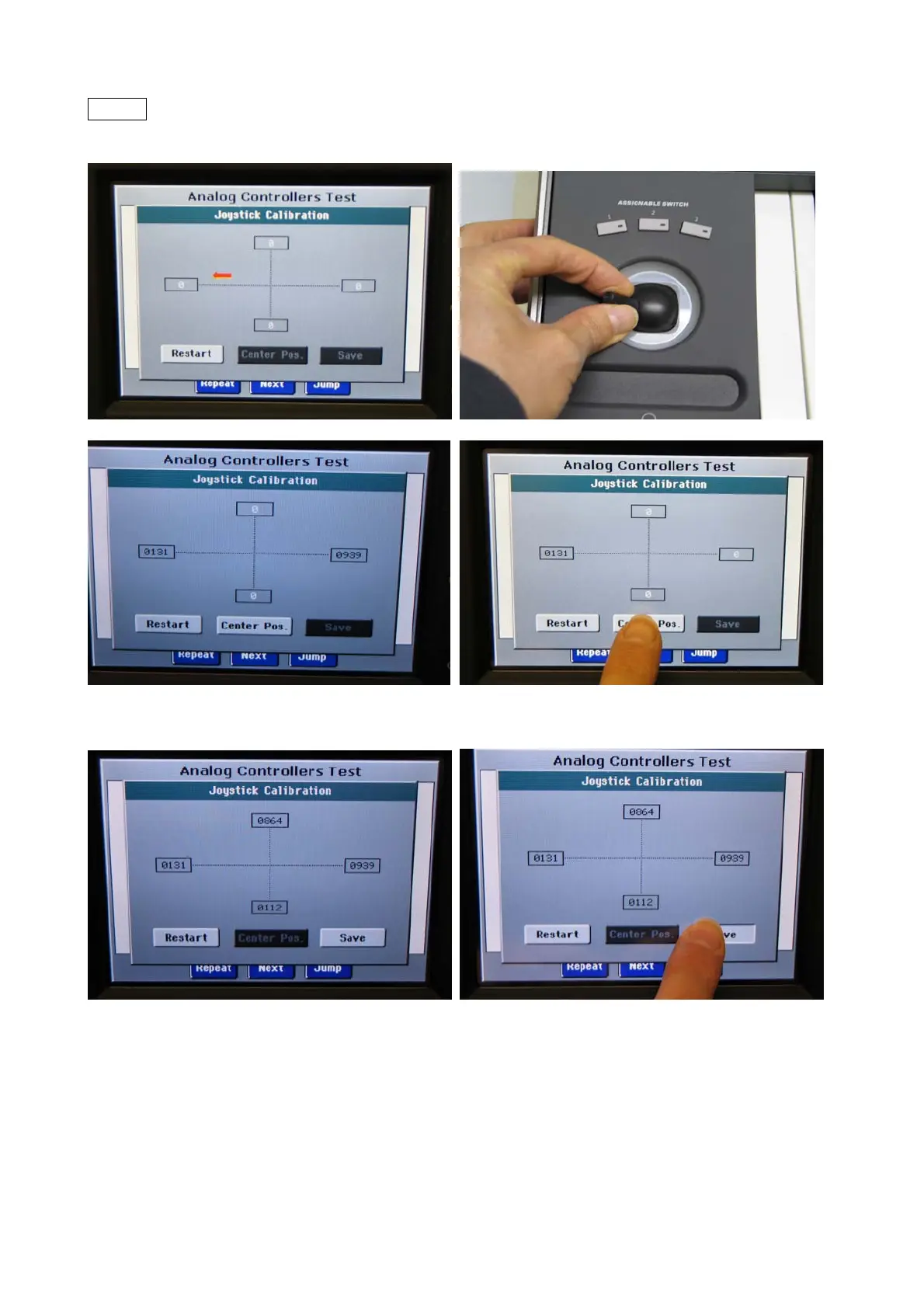

First step of this test is Joystick calibration.
Follow display’s instruction for joystick calibration procedure.
Move Joystick to the left then leave it for the centre
Center Pos. frame will light on, press the frame to store left and central joystick position.
Repeat this procedure for each side (right/centre, top/centre, bottom/centre) then store by
pressing marked save button (marked only after bottom/centre joystick calibration).

Korg PA3X Specifications

General

Type	Arranger Keyboard
Sound Engine	EDS (Enhanced Definition Synthesis)
MIDI	In, Out, Thru
Keyboard	61 keys (with velocity and aftertouch)
Display	7-inch TouchView TFT display
Storage	Internal SSD
Weight	17.5 kg
Styles	Over 400 styles
User Styles	Up to 1, 200
Sounds	Over 1, 100
Sampling	Yes, with Time Slice function
Sequencer	16-track sequencer
Outputs	L/R
Inputs	Mic/Line, Guitar
USB	Yes, 2 ports
Audio Recording	MP3 recording and playback
