Korg PA3X User Manual

REF. CODE Q.ty
a 1
a1 CAV0010085 1
a2 CAV0010069 1
b 1
b1 CAV0010079 1
b2 CAV0010077 1
b3 CAV0010076 1
b4 CAV0010074 1
c VTA0001086 2
d VTA0001045 1
e PLA0010212 3
f VTA0001060 7
g VTA0010072 6
h VTA0001039 16
i FERL001092 1
j FERL001089 1
k FEL0010094 1
l VTA0001068 3
m FERL001086 1
n FERL001085 1
o PLA0010039 10
p PLA0001146 2
FELL001014 1
FELL001022 1
r FELL0010118 1
q

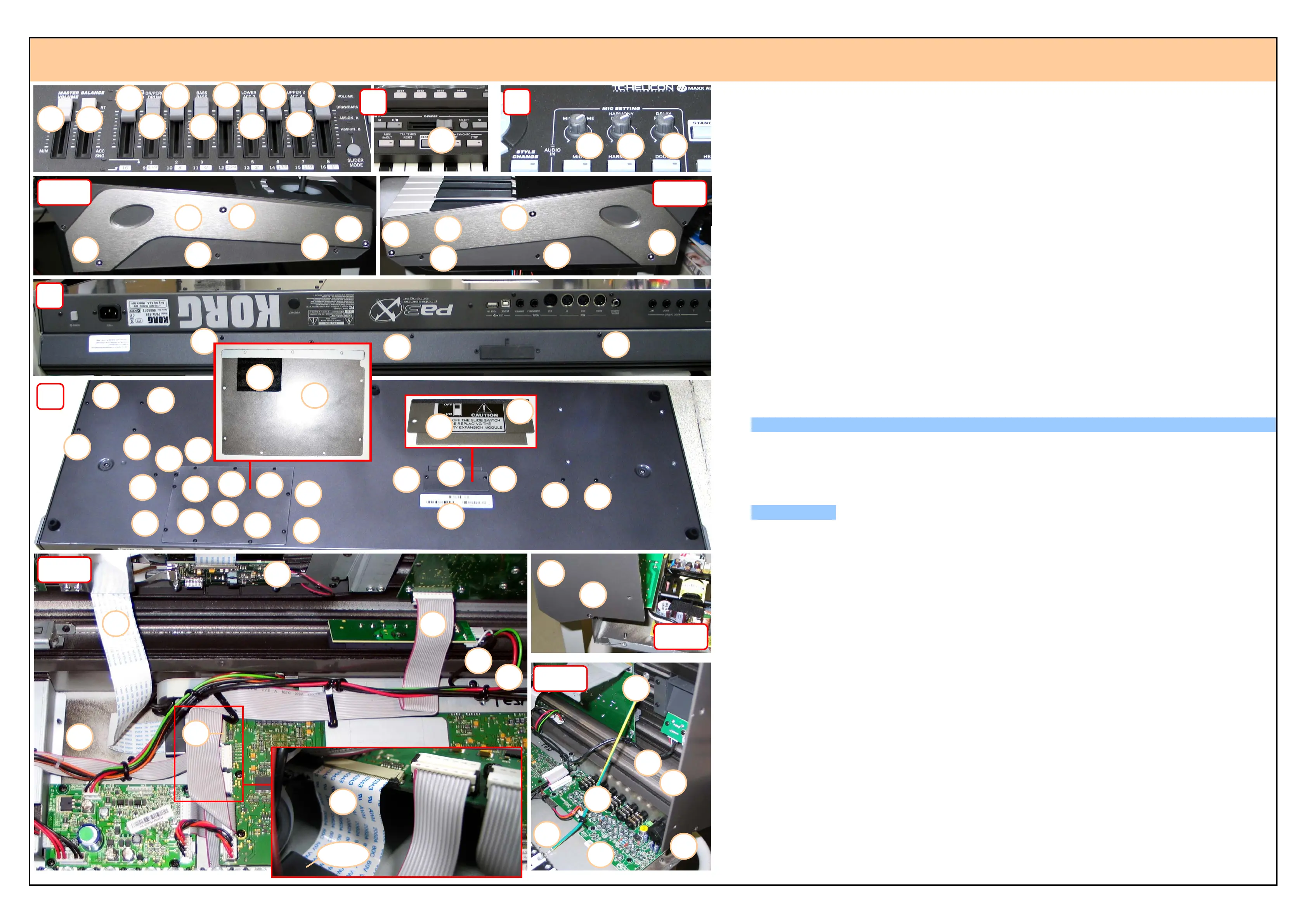

STEPS DESCRIPTION
Pa3X (61k) DISASSEMBLY
SCREW M4x15 TSP SELF BAKING HEX 2.5 I
DADO M4 AUTOBLOCCANTE
POTENTIOMETER KNOB
LOWER CASE (TO DISASSEMBLY 1)
HARNESS CONTROL B./M.B./RIGHT PANEL
HARNESS SPK AUDIO
VITI 2.9X9.5 TSP NERA
VITI 2.9X16 TSP
VITI 2.9X9.5TC AUTOF.NERE SP
BATTERY FELT HOLD
VITI 2.9X16 TC NERE
ALUMINUM LEFT SIDE PANEL 76 PAINTED
ALUMINUM RIGHT SIDE PANEL 76 PAINTED
SLIDER KNOB (NOVODUR 700700)
HARNESS SPK POWER SUPPLY
HARNESS FRONT USB
UPPER CASE (TO DISASSEMBLY 1)
HARNESS FFC CIRCUITS=50 P=0.5
HARNESS EARTH/STOPPER
= ONLY FOR USA VERSION
SO-DIMM COVER OPTIONS PA3X
PA3X HDD-VIDEO-BATTERY OPTION COVER
SODIMM WARNING LABEL
SLIDER KNOB
ETICHETTA CARTONE PA3X-61
ETICHETTA CARTONE PA3X-61 cCSAus
7.c
a
b
c
b4
b
d
a2
a
c
7.b
l
l
l
4
3.a
f
f
g
g
g
m
3.b
f
g
f
g
g
n
5
1
o
o
o
o
o
o
o
o
o
o
p
p
2
e
e
e
a
b
b1
b2
b3
a1
a1
7.a
a1
ferrite
j
k
h
h
h
h
h
h
h
h
h
h
h
f
f
f
h
h
h
i
j
h
h
q
i
r
