Korg PA3X User Manual

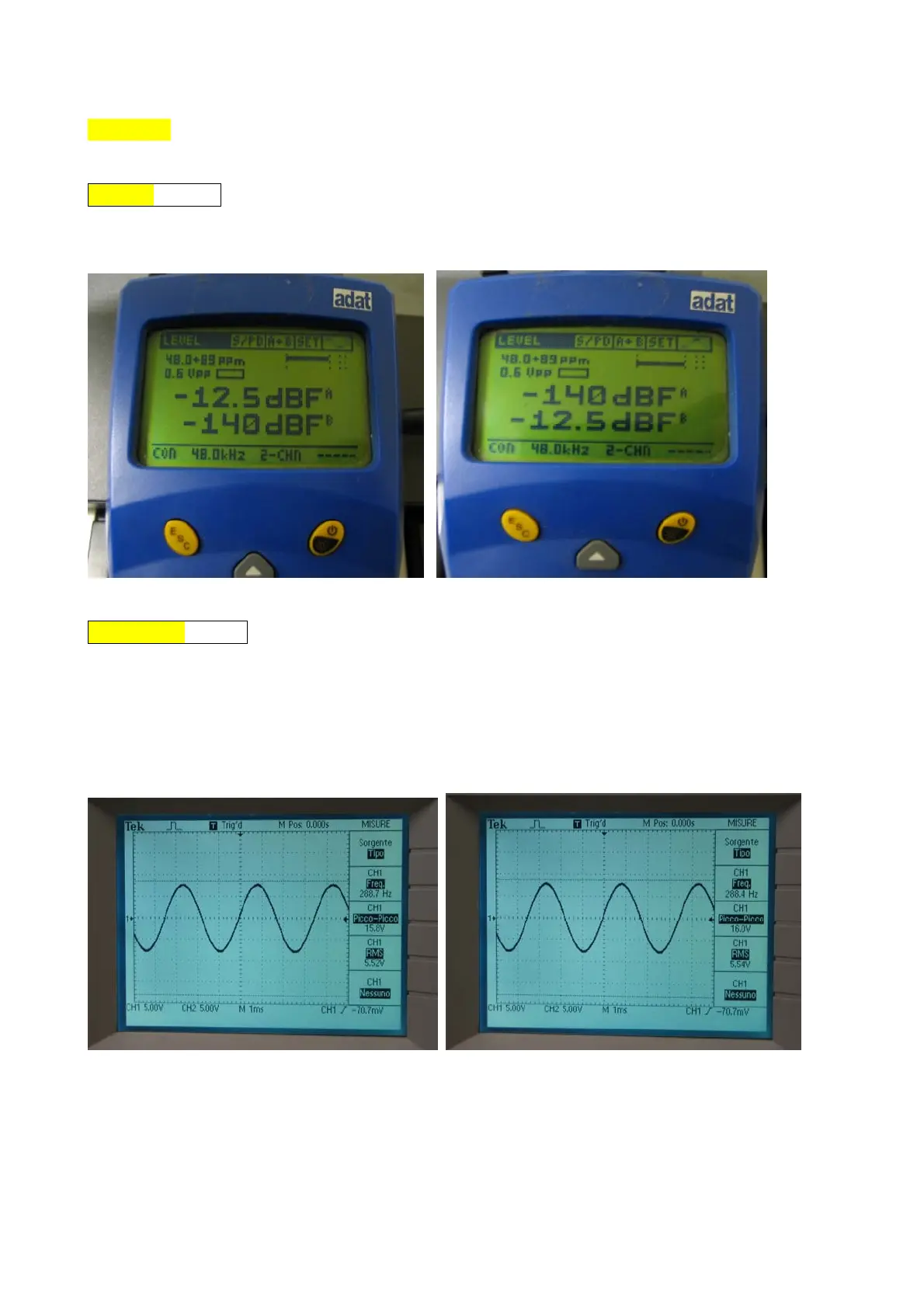

Audio test
In Audio test SPDIF, Audio Output and MP3.output signals are checked
S/PDIF – 2 step
S/PDIF Left
S/PDIF Right
Check SPDIF output level (typical 0,5Vpp) by using a digital tool
Step 1 Left Out Step 2 Right Out
Mp3 Board - 5 step
1-5 Sampling Mode MX1 loop
2-5 Play 1 Left
3-5 Play 1 Right
4-5 Play 2 Left
5-5 Play 2 Right
Connect oscilloscope probes to Out1 and Out2 connected MONO jacks and check output
levels: testing is automatic in mp3 step 1, press next to continue
Play 1 typical left level 16Vpp +/- 0,5Vpp Play 1 typical right level 16Vpp +/- 0,5Vpp

Korg PA3X Specifications

General

Type	Arranger Keyboard
Sound Engine	EDS (Enhanced Definition Synthesis)
MIDI	In, Out, Thru
Keyboard	61 keys (with velocity and aftertouch)
Display	7-inch TouchView TFT display
Storage	Internal SSD
Weight	17.5 kg
Styles	Over 400 styles
User Styles	Up to 1, 200
Sounds	Over 1, 100
Sampling	Yes, with Time Slice function
Sequencer	16-track sequencer
Outputs	L/R
Inputs	Mic/Line, Guitar
USB	Yes, 2 ports
Audio Recording	MP3 recording and playback
