4–1: Filter 1 EG
34
Slope (Slope Time) [0…99]
Specifies the time from when the Decay Time elapses until the Sustain Level is reached.
Release (Release Time) [0…99]
Specifies the time from Note-off until the Release Level is reached.
4–1b: Time Modulation
Specifies how the EG times of filter 1 specified in “4–1a: Filter 1 EG” will be modified by Keyboard
Tracking, Velocity, and Alternate Modulation.
Keyboard Track
With positive (+) settings, EG times will become shorter as you play notes increasingly above C4.
With negative (–) settings, EG times will become longer as you play notes increasingly above C4.
With a setting of 0, the EG times will be as specified in “4–1a: Filter 1 EG.”
At (Attack Time) [–99…+99]
Adjusts the Attack Time.
Dc (Decay Time) [–99…+99]
Adjusts the Decay Time.
Sl (Slope Time) [–99…+99]
Adjusts the Slope Time.
Rl (Release Time) [–99…+99]
Adjusts the Release Time.
Velocity
With positive (+) settings, EG times will be shortened as you play more strongly. With negative (–)
settings, EG times will be lengthened as you play more strongly.
With a setting of 0, the EG times will be as specified in “4–1a: Filter 1 EG.”
At (Attack Time) [–99…+99]
Adjusts the Attack Time.
Dc (Decay Time) [–99…+99]
Adjusts the Decay Time.
Sl (Slope Time) [–99…+99]
Adjusts the Slope Time.
Rl (Release Time) [–99…+99]
Adjusts the Release Time.
Note-on
Note-off
Attack
Time
Start
Level
Decay
Time
Release
Time
Release Level
Attack Level
Specified cutoff
frequency
Sustain Level
Time
Break
Point Level
Slope
Time

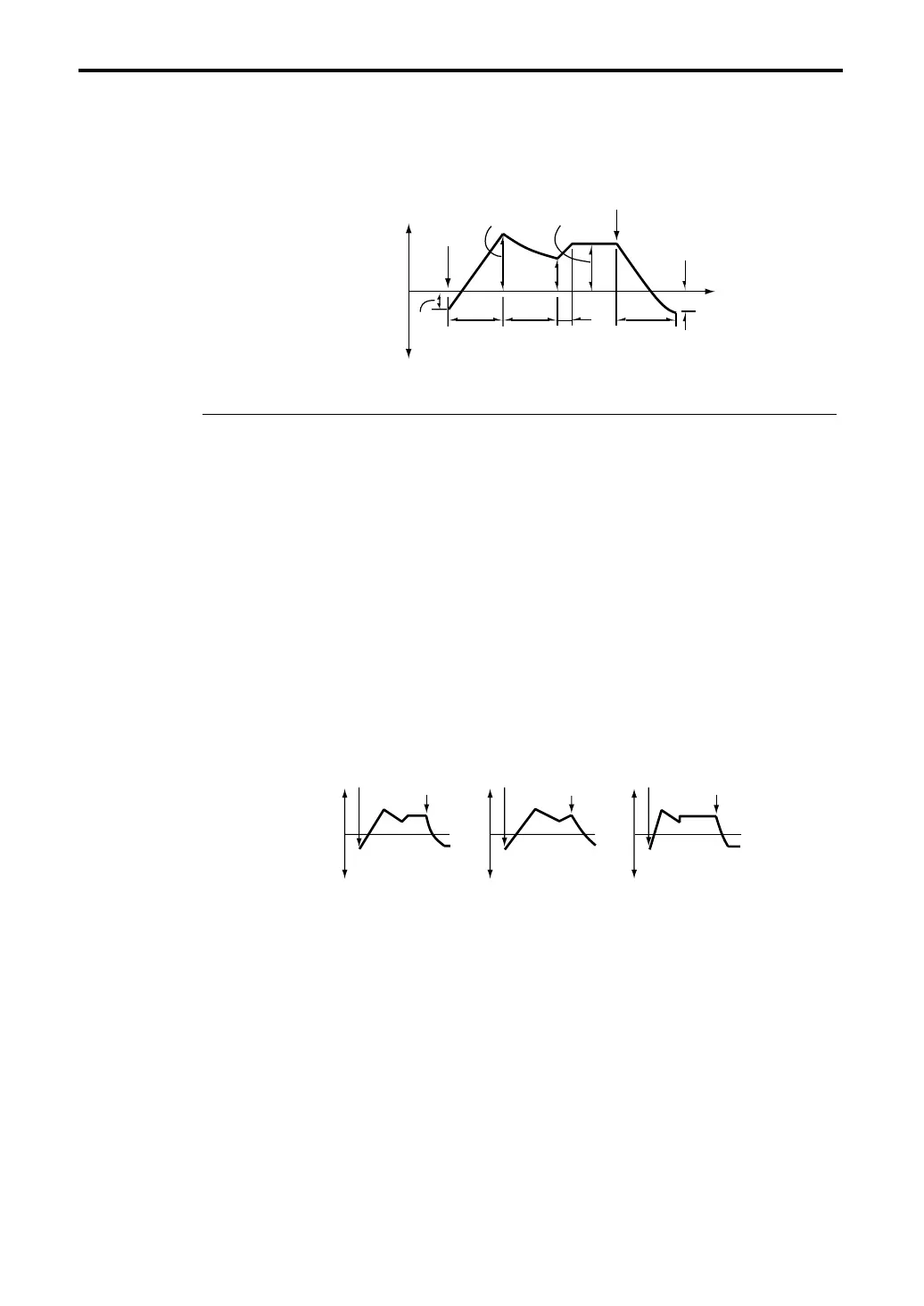

Changes in Time (all four parameters with positive (+) settings)
Filter EG settings
A low note
A high note
Note-off
Note-on
Note-off
Note-on Note-on
Note-off
