4–1: Filter 1 EG
33
Program Edit P4
The TRINITY series provides a Filter EG and a Filter LFO that can modulate the cutoff frequency
of the filters in filter 1 and 2.
Filter settings are made in Program Edit P3 and P4.
4–1: Filter 1 EG
Makes settings for the EG that will modify the cutoff frequencies of filters 1A and 1B.
These settings are adjusted by the settings in “3–2c: Filter EG” to determine the depth of the effect
on filter 1 cutoff frequency.

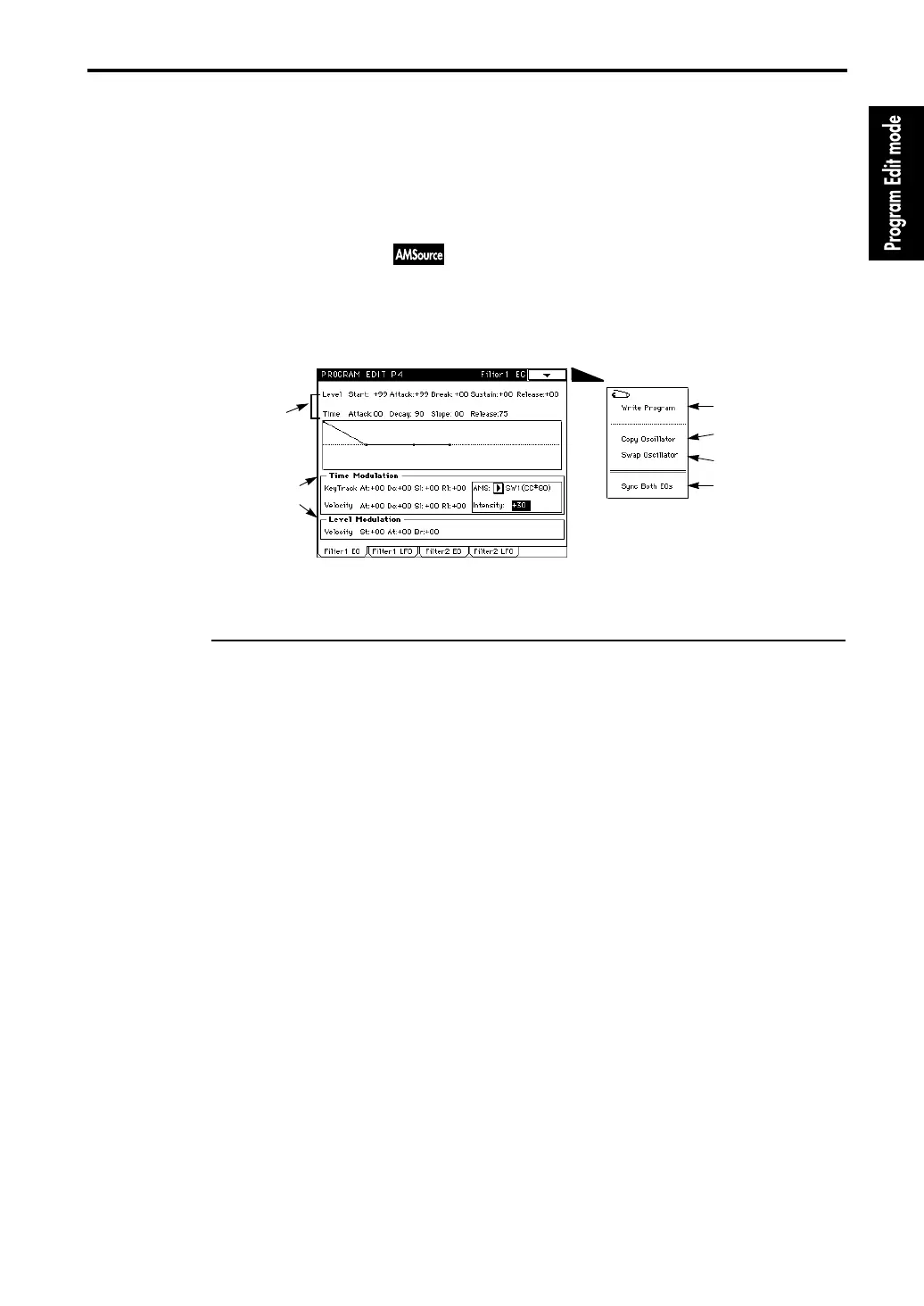

4–1a: Filter 1 EG
Makes settings for Level and Time to specify how the filter 1 EG will produce time-variant control.
Level
The operation of this parameter will depend on the filter Type selected in “3–1: Filter 1 A/B.” For
example if a Low Pass filter is selected, positive values of EG Intensity will cause the sound to
brighten with positive (+) settings of this parameter, or darken with negative (–) settings of this
parameter.
Start (Start Level) [–99…+99]
Specifies the amount of change to the cutoff frequency that will be in effect at Note-on.
Attack (Attack Level) [–99…+99]
Specifies the amount of change to the cutoff frequency that will be in effect after the Attack Time
has elapsed.
Break (Break Point Level) [–99…+99]
Specifies the amount of change to the cutoff frequency that will be in effect after the Decay Time
has elapsed.
Sustain (Sustain Level) [–99…+99]
Specifies the amount of change to the cutoff frequency that will be in effect after the Slope Time
has elapsed until Note-off.
Release (Release Level) [–99…+99]
Specifies the amount of change to the cutoff frequency that will be in effect after the Release Time
has elapsed.
Time
Makes time-related settings.
Attack (Attack Time) [0…99]
Specifies the time from Note-on until the Attack Level is reached.
Decay (Decay Time) [0…99]
Specifies the time from when the Attack Level is reached until the Break Point Level is reached.
4–1a
4–1b
4–1c
Page Menu
4–1A
4–1B
4–1C
4–1D
