4. Set the tunneling port number (5100, by-default) and click Port Set.
5. Send the display RS-232 commands via Ethernet tunneling.
Commands are sent to the display via Ethernet tunneling.
Controlling an RS-232 External Device Via HDBT Tunneling
Control any external device (for example, the connected display) using an RS-232 controller
connected to the transmitter wired to the HDBT input. RS-232 commands are sent from the
control system to the transmitter and tunneled via HDBT to the VP-427X1 and fed to the
RS-232 device connected to VP-427X1.

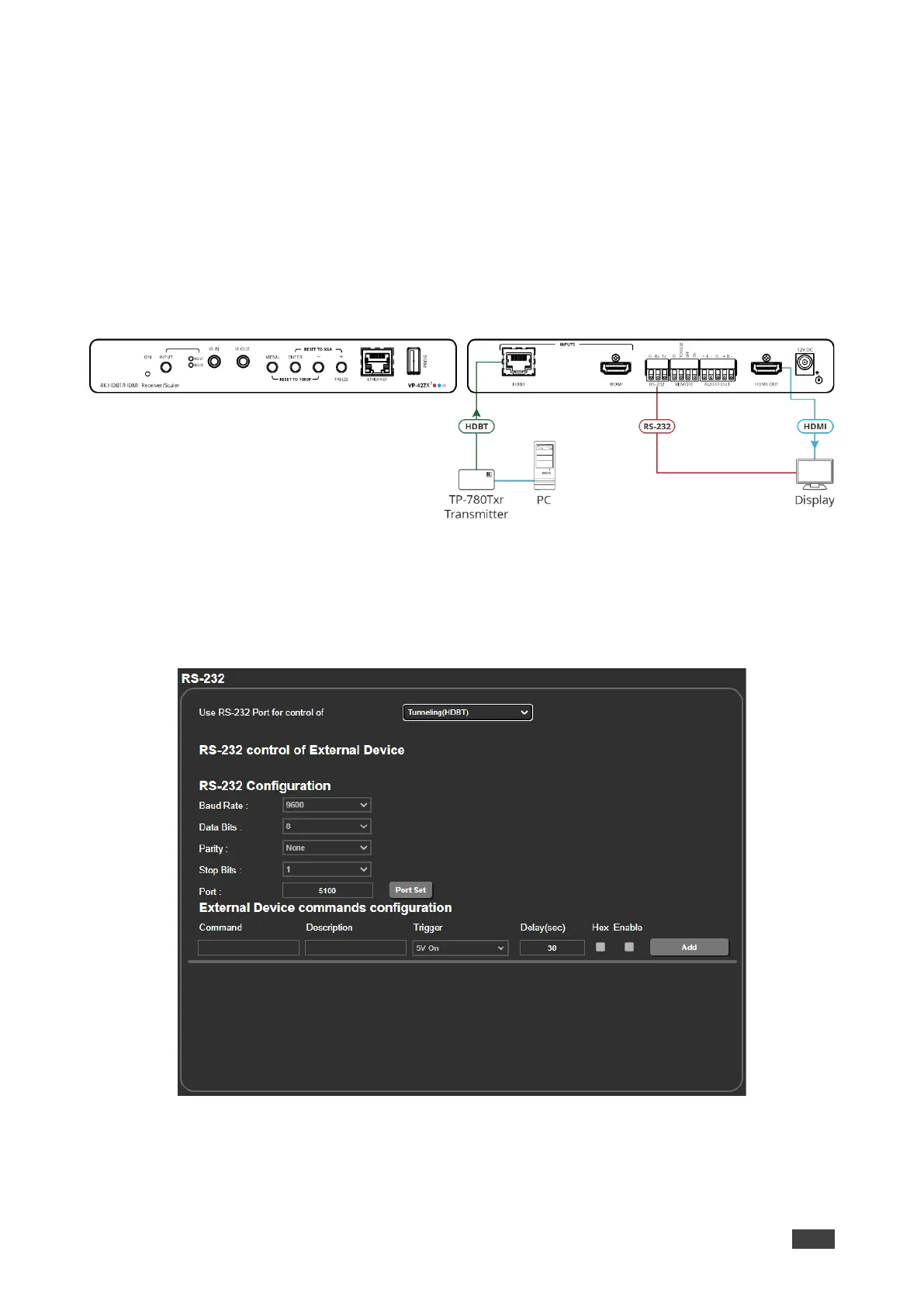

Figure 36: External Device Control via HDBT Tunneling
To control an external device via HDBT Tunneling to the RS-232 port:
1. Click RS-232 on the Navigation List. The RS-232 page appears.
2. Set “Use RS-232 Port for control of” drop-down box to Tunneling (HDBT).
Figure 37: RS-232 Page – Controlling an External Device via HDBT Tunneling
3. Send the display RS-232 commands via HDBT tunneling.
Commands are sent to the display via HDBT tunneling.
