Krone EasyCut B 970 - 3 Machine Description; Machine Overview; Labelling

3 Machine description
3.1 Machine Overview
32
EasyCut B 970
Original Operating Instructions 150000711_01_en
3 Machine description
3.1 Machine Overview

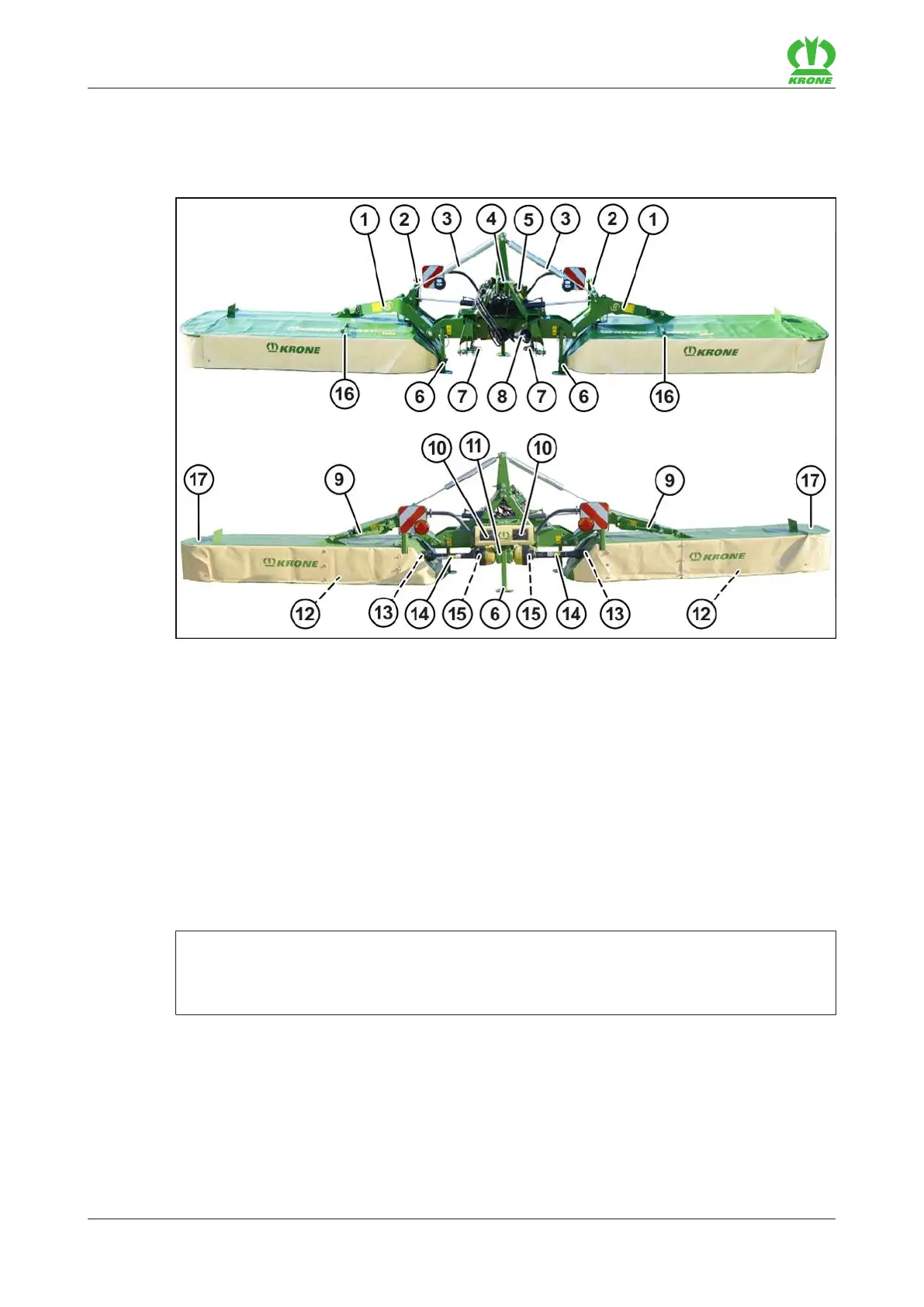

KMG000-037
1 Outrigger 10 Spare blade drawer
2 Lateral suspension arms 11 Main gearbox
3 Relief spring 12 Cutterbar
4 Three-point hitch 13 Mower gearbox
5 Document storage tube 14 Intermediate universal shaft
6 Support jack 15 Friction clutch
7 Impact damage protection system 16 Locking safety device front
8 Universally-jointed drive shaft 17 Side guard
9 Coupling rod
3.2 Labelling
INFORMATION
The entire identification plate represents a legal document and should not be altered or
rendered illegible!
