Krone EasyCut B 970 - Main Gearbox

Maintenance - Gearbox 13
Main gearbox 13.2
EasyCut B 970
Original Operating Instructions 150000711_01_en 75
Change oil
ü A suitable container is available for escaping oil.
 Unscrew the locking screw from the inspection hole(1) and the locking screw from the filling
hole(3).
 Unscrew the oil drain plug(2) and drain the oil.
 Screw in the oil drain plug(2), tightening torque refer to page69.
 Refill with fresh oil up to the inspection hole (1) via the filling hole (3).
 Screw the locking screw into the inspection hole(1) and the locking screw into the filling
hole(3), tightening torque refer to page69.

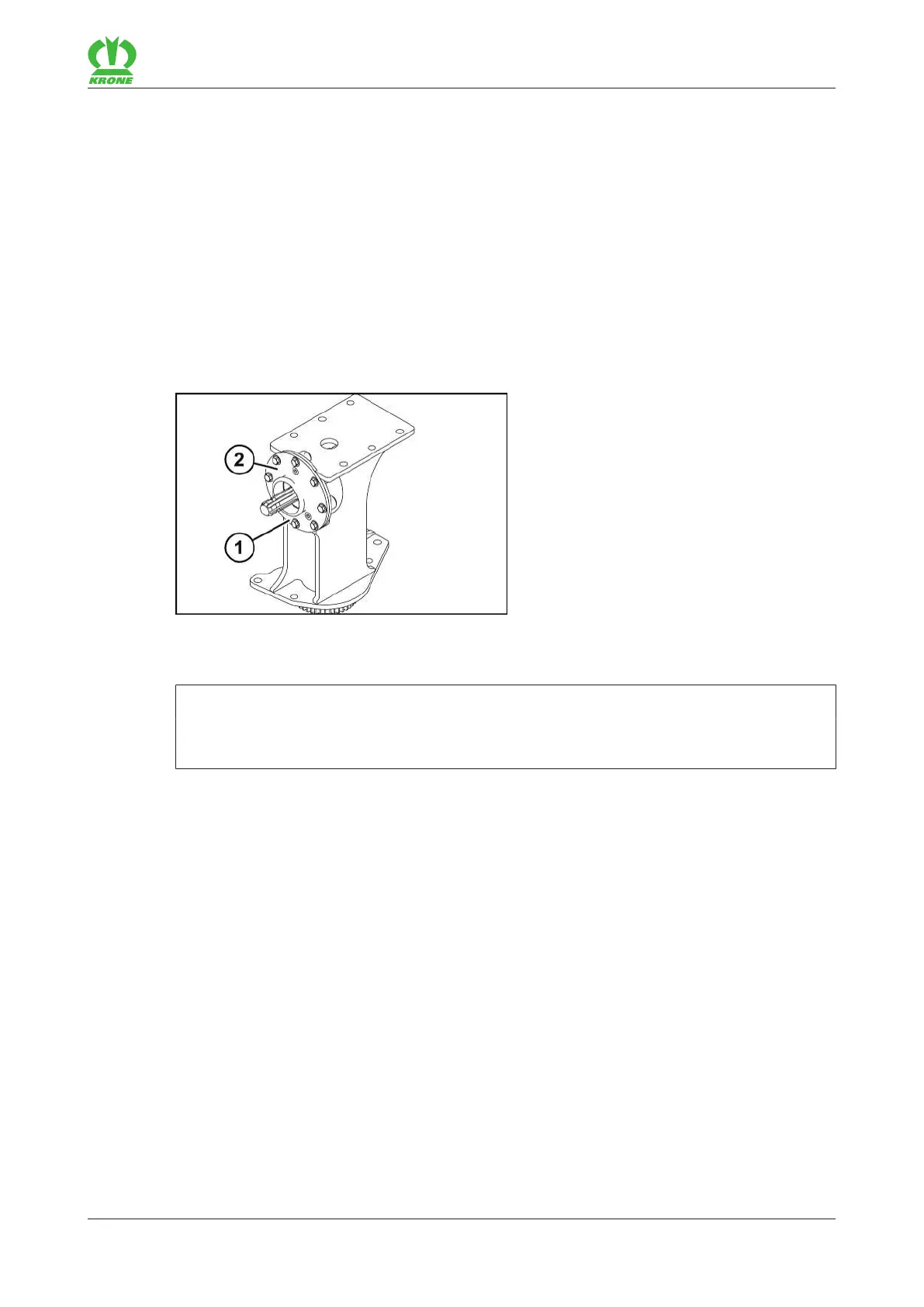

13.2 Main gearbox
KMG000-073
 Comply with the safety routine "Safe execution of oil level check, oil and filter element
exchange", refer to page25.
INFORMATION
The oil level must be checked and the oil must be changed in working position and with
machine in horizontal position.
Check oil level
 Unscrew the locking screw of the inspection hole (1).
ð If the oil reaches up to the inspection hole(1):
 Screw on the locking screw of the inspection hole (1), tightening torque refer to
page69.
ð If the oil does not reach up to the inspection hole(1):
 Remove the locking screw from the filling hole (3).
 Refill with fresh oil up to the inspection hole (1) via the filling hole (3).
 Screw on the locking screw of the inspection hole(1) and the locking screw of the filling
hole(3), tightening torque refer to page69.
